ACTION 2600 tilting table
Product catalog summary
Technical Specifications:
The document outlines the specifications of a machining center designed for intelligent manufacturing. Key features include a tool changing time of 2 seconds, a tool magazine capacity ranging from 95 to 999 tools, and a spindle speed of 14,000/8,000/6,000 rpm. The machine is equipped with a continuous rotary table and a linear axes measuring system with pressurized optical scales. The spindle type is HSK-A100, with rapid feeds of 30 m/min.
The document outlines the specifications of a machining center designed for intelligent manufacturing. Key features include a tool changing time of 2 seconds, a tool magazine capacity ranging from 95 to 999 tools, and a spindle speed of 14,000/8,000/6,000 rpm. The machine is equipped with a continuous rotary table and a linear axes measuring system with pressurized optical scales. The spindle type is HSK-A100, with rapid feeds of 30 m/min.
Working Area:
The working area includes a longitudinal X axis of 1,400 mm, a vertical Y axis of 1,500 mm, and a transversal Z axis of 1,500 mm. The rapid feeds are 30 m/min, and the axes thrust is 4,000 daN. The spindle tip-Y pallet distance ranges from -500 to +950 mm, and the spindle tip-Z pallet distance is 130 mm.
The working area includes a longitudinal X axis of 1,400 mm, a vertical Y axis of 1,500 mm, and a transversal Z axis of 1,500 mm. The rapid feeds are 30 m/min, and the axes thrust is 4,000 daN. The spindle tip-Y pallet distance ranges from -500 to +950 mm, and the spindle tip-Z pallet distance is 130 mm.
Positioning Precision:
The positioning precision for linear axes (XYZ) is 8 µm, with a repeatability precision of 4 µm. For rotating axes (B), the positioning precision is 8 arcsec, and the repeatability precision is 4 arcsec.
The positioning precision for linear axes (XYZ) is 8 µm, with a repeatability precision of 4 µm. For rotating axes (B), the positioning precision is 8 arcsec, and the repeatability precision is 4 arcsec.
Tool Change:
The tool change system features a wheel/rack type tool magazine with a capacity of 95-999 tools. The maximum tool length is 600 mm, and the maximum tool weight is 25 kg. The chip-to-chip tool changing time is 8 seconds, with a maximum tool diameter of 300x400 mm and adjacent tools maximum diameter of 100 mm.
The tool change system features a wheel/rack type tool magazine with a capacity of 95-999 tools. The maximum tool length is 600 mm, and the maximum tool weight is 25 kg. The chip-to-chip tool changing time is 8 seconds, with a maximum tool diameter of 300x400 mm and adjacent tools maximum diameter of 100 mm.
Tilting Table:
The tilting table has pallet dimensions of 630x800 mm and 800x800 mm, with an overall fixture rotating diameter of 1,200 mm. The tilting angle/positions are 120x1,200,000 degrees/n. The maximum load on the table in a vertical position is 1,000 kg, with a tilting max torque of 5,000 Nm.
The tilting table has pallet dimensions of 630x800 mm and 800x800 mm, with an overall fixture rotating diameter of 1,200 mm. The tilting angle/positions are 120x1,200,000 degrees/n. The maximum load on the table in a vertical position is 1,000 kg, with a tilting max torque of 5,000 Nm.
Continuous Rotary Table:
The continuous rotary table has 3,600,000 positions and a speed rotation of 12 rpm.
The continuous rotary table has 3,600,000 positions and a speed rotation of 12 rpm.
Additional Features:
The machine includes a scraper type chips conveyor and a coolant system with a 1,500 liters tank and self-cleaning filter. The total weight of the two pallets version is 40,500 kg.
The machine includes a scraper type chips conveyor and a coolant system with a 1,500 liters tank and self-cleaning filter. The total weight of the two pallets version is 40,500 kg.
Contact Information:
The document provides contact details for MCM in Canada, France, Italy, Germany, and the USA, including phone numbers, fax numbers, and email addresses.
The document provides contact details for MCM in Canada, France, Italy, Germany, and the USA, including phone numbers, fax numbers, and email addresses.
See more
Catalog excerpts

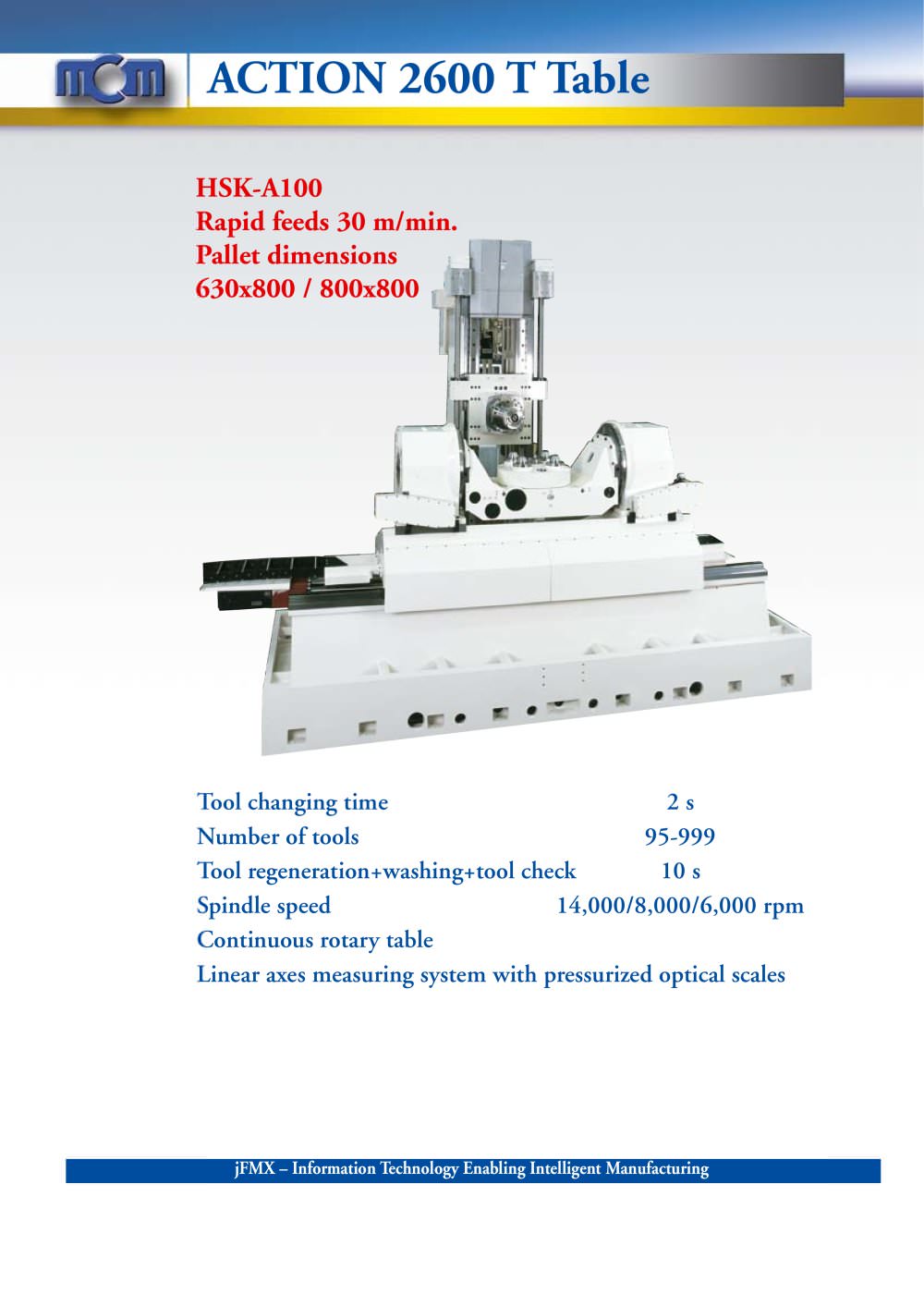

jFMX Information Technology Enabling Intelligent Manufacturing >
Open the catalog to page 1
WORKING AREA Longitudinal X axis mm 1,400Vertical Y axis mm 1,500Transversal Z axis mm 1,500Rapid feeds m/min 30Axes thrust daN 4,000Spindle tip-Y pallet distance mm -500 / +950Spindle tip-Z pallet distance mm 130Linear axes measuring system pressurized Heidenhain optical scales Rotating axes measuring system pressurized Heidehain encoders AC axes servomotor drive with digital adjustment > Y=1500 +25-95 POSITIONING PRECISION IN ACCORDANCE WITH VDI/DGQ 3441 SPECIFICATIONS > X=1400 Linear axes (XYZ) Positioning precision (Pa) m 8Repeatability precision (Ps Med) յm 4Rotating axes (B) Positioning...
