ACTION 2600 tilting head
2Pages

Add to favorites

{{requestButtons}}

Catalog excerpts

jFMX Information Technology Enabling Intelligent Manufacturing >

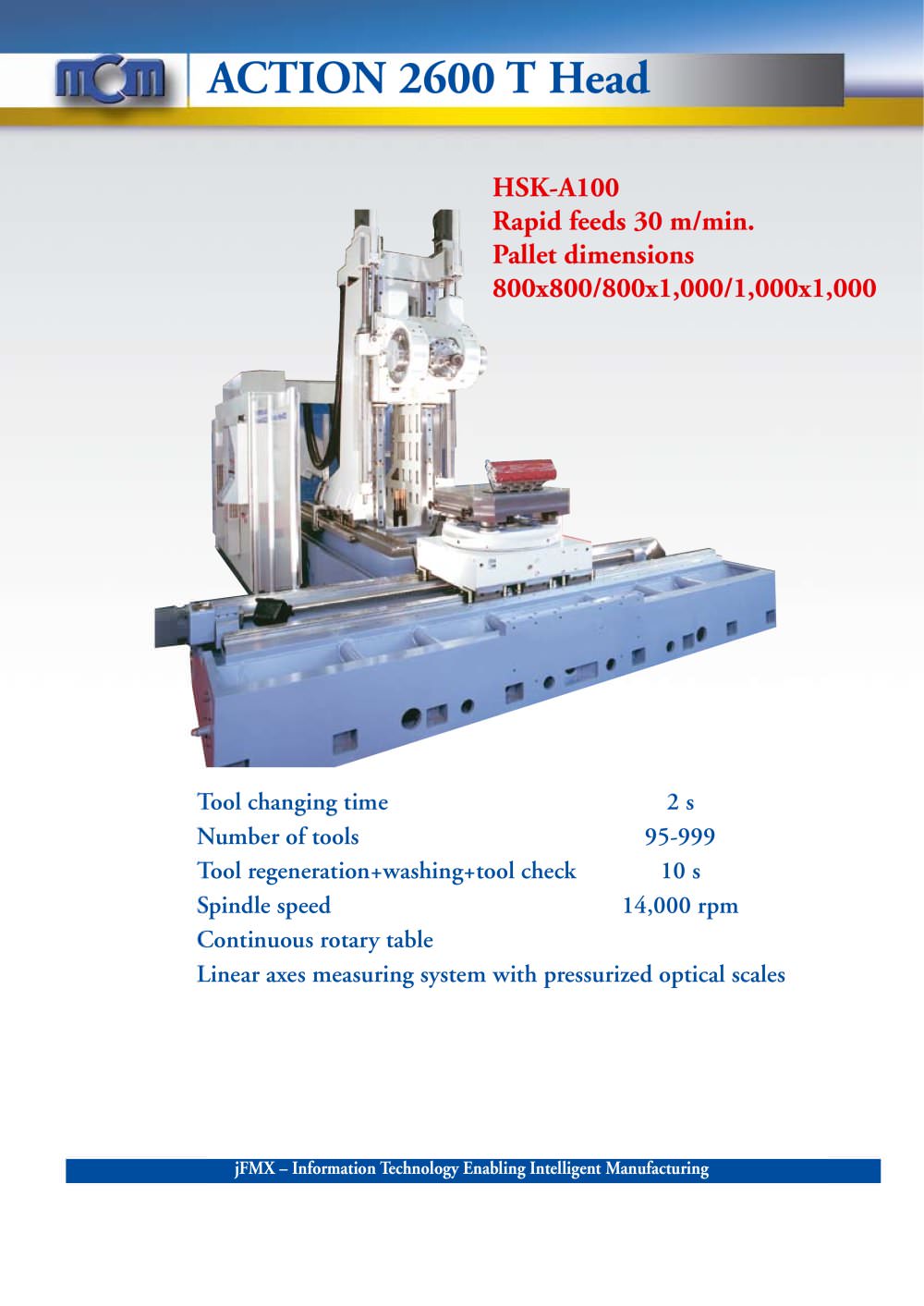

Open the catalog to page 1

WORKING AREA Longitudinal X axis mm 2,600Vertical Y axis mm 1,350Vertical Y axis tilting head in vert. position mm 1,105 Transversal Z axis mm 1,650 Rapid feeds m/min 30Axes thrust daN 4,000Linear axes measuring system pressurized Heidenhain optical scales Rotating axes measuring system pressurized Heidehain encoders AC axes servomotor drive with digital adjustment > Y=1350 GANTRY TYPE TILTING SPINDLE HEAD Tilting angle/Positions degrees/n. 175/1,750,000Tilting angle compared to horiz. position degrees +80/-95Clamping torque Nm 10,000 > A+=80 Z=1650 POSITIONING PRECISION IN ACCORDANCE WITH...

Open the catalog to page 2
