Specifications Overview

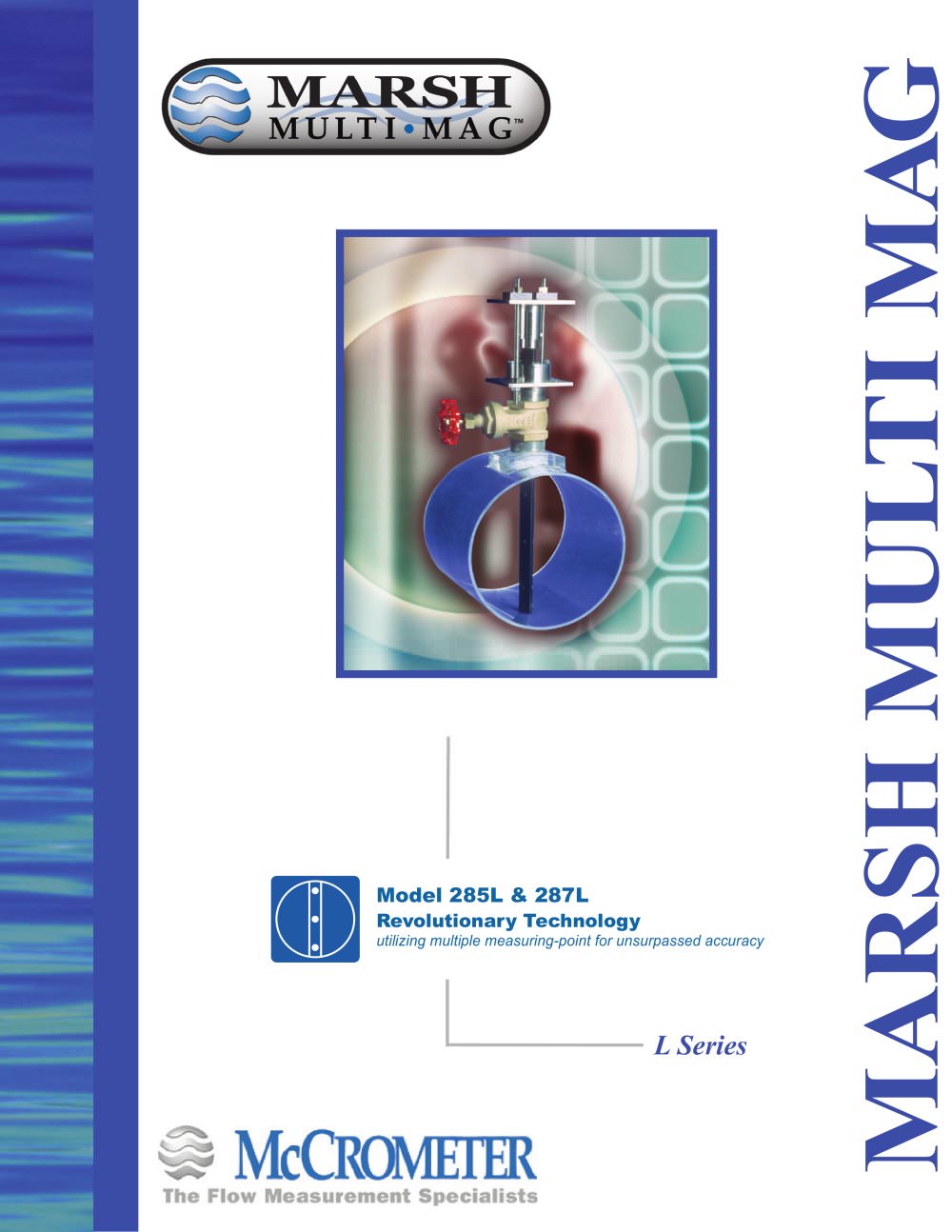

The Multi-Mag™ Models 285L & 287L are designed for volumetric flow measurement in conduits from 4" to 120" using an insertable electromagnetic sensor. Flow can be displayed in English and Metric units. Specifications may change due to ongoing testing and improvements.

Flow Measurement
The electromagnetic method offers zero stability of ±0.03 ft/s, linearity of 0.3% of range, repeatability of 0.20% of range, and accuracy of ±1% from +0.3 ft/s to +20 ft/s. It also indicates reverse flow.

Materials and Construction
Sensors are made of fiberglass with 316 stainless steel hardware. The compression seal is silicone rubber, and electrodes are carbon. The transmitter enclosure meets NEMA6/IP67 Class I Division II standards.

Applications and Approvals
Approved for potable water applications, certified by the Water Byelaws Scheme (WBS) and NSF 61 for the 3" sensor.

Configuration and Outputs
User-friendly programming with a keypad and three levels of password protection. Provides galvanically isolated analog outputs (0-24mA) and two programmable outputs for real-time and totalizer displays.

Environmental and Electrical Specifications
Requires minimum conductivity of 5 umho/cm. Operates in temperatures from 32° to 110°F at 250 psi and can be submerged. Electronics operate between -4° to 140°F. Electrical connections via 0.5 inch NPT with gasket seal.

Installation and Benefits
Can be installed near bends and elbows, offering cost savings and energy efficiency. No calibration required, backed by a 5-year sensor warranty.

Test Results and Customer Feedback
Independent tests show accuracy of ±0.2% of reading. Customers report improved accuracy and cost savings.

Outputs
Provides galvanically isolated analog outputs, programmable for zero and full scale (0-24mA), with two programmable outputs.

Display Features
Real-time display for flow and velocity, totalizer display with user-selectable units.

Environmental Specifications
Minimum conductivity of 5 umho/cm. Operates in flow temperatures from 32° to 110°F at 250 psi, submersible. Electronics operate between -4° to 140°F.

Electrical Connections and Safety
Uses 0.5 inch NPT with gasket seal. Features galvanic separation to 50VDC, meeting ANSI/ISA-S82.10-1988 and S82.03-1988 standards.

Power Supply
Universal switch mode power supply, AC (90-265VAC/44-66 Hz 20W/25VA) or DC (10-35 VDC at 21W). Specify type when ordering.

Vibration Specification
Meets BS2011: Part 2.1Fc: 1983 vibration specification.

Internal Totalizer
6-digit totalizer, programmable reset via external input or keypad, with password protection.

Test Mode and Output Circuit Loop Verification
Test mode drives outputs to programmed value for system testing.

Ordering Information
Includes NEMA 6/IP67 enclosure, 3-button keypad, backlit LCD display, and output options. Comes with a Multi-Mag™ Sensor for 2 or 3 inch tap, 20-foot sensor cable, and manual.

Options
Options include sensor cable length up to 300 feet, pole mounting kit, sensor insertion tool, additional manuals, and 4-20mA output. Contact factory for mounting hardware.
