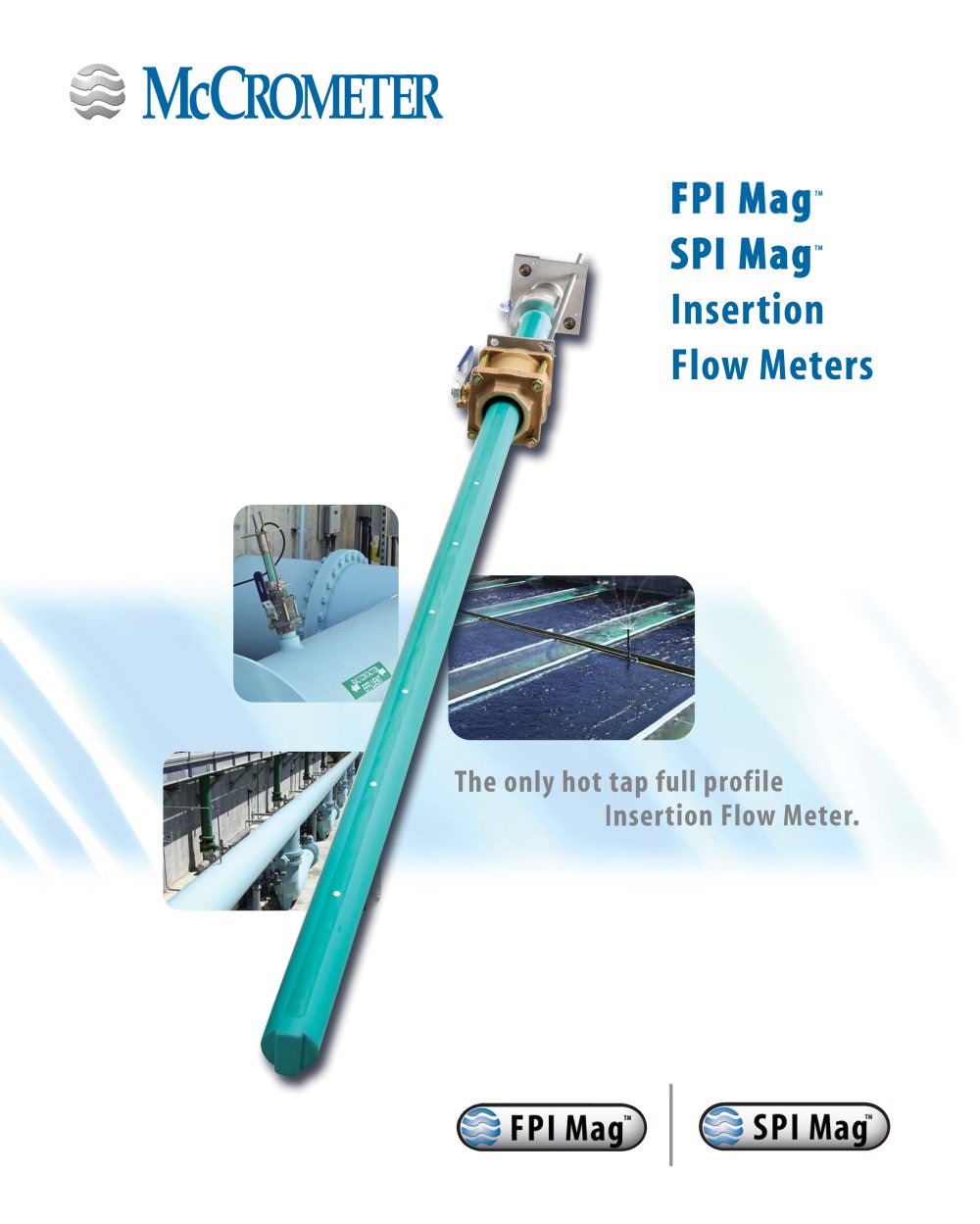

FPI Mag™ SPI Mag™ Insertion Flow Meters
1 / 6Pages

The only hot tap full profile Insertion Flow Meter. FPI Mag SPI Mag Insertion Flow Meters TM TM

McCrometer. Addressing today’s challenges. Maintaining and updating municipal water facilities and industrial process plants is a constant challenge. The FPI Mag and SPI Mag Insertion Flow Meters are the ideal retrofit solution. With their hot-tap installation and plugand- play converter, these meters can be installed rapidly and easily without service interruption. This allows you to provide 24/7 operation while improving process control and ensuring delivery accountability. Replacing Meters Confined Spaces Medium and Large Line Sizes Sites Never Metered Before

Ease of hot tap installation The FPI Mag (Full Profile Insertion) Flow Meter installs without interrupting service, de-watering lines, cutting pipe or welding flanges. The easy hot tap installation makes the FPI Mag particularly cost-effective for retrofit application replacing flow meters, or in sites never metered before. Economical for medium and large line sizes The total installed cost of conventional full bore meters increases dramatically as the pipe diameter increases due to greater materials costs and more complex installation. Installation costs for medium and large lines are...

Both the FPI and SPI Mag operate based on Faraday's law of electromagnetic induction. The FPI Mag’s streamline sensor features multiple electrodes across the entire pipe diameter. Electrode pairs are located so that each pair measures an equal cross-sectional area. The velocity measurements are added and averaged, providing an area-weighted average velocity across the pipe’s centerline. Flow is then calculated by multiplying the average velocity by the cross-sectional area of the pipe. Wastewater o Effluent o Recycle /Reclaim How it works Virtually no recalibration or maintenance The FPI...

* See data sheet for complete specs and order information The SPI Mag’s flow sensor first generates an electromagnetic field that creates a voltage in the liquid. Two velocity electrodes and the ground electrodes then measure this voltage. A faster water velocity produces higher voltage, indicating a higher rate of liquid flow. Key SPI Mag Specs in Brief * McCrometer also offers the SPI Mag (Single Point Insertion) Flow Meter as an economical choice for clean and dirty applications with solids. It measures forward flow only, is suitable for pipe sizes from 2 to 96 inches. The SPI can be...

© 2010 McCrometer, Inc. All rights reserved. Patent Pending. Printed in USA. Lit. No. 24511-18 Rev. 1.0 The McCrometer value difference For 55 years, McCrometer has demonstrated an unyielding commitment to integrity which is reflected in our stringent flow meter calibration processes. Each flow meter is individually wet calibrated in one of our two world-class NIST traceable calibration facilities and delivered with a Certificate of Calibration. Our large volume test facility is located in Porterville, California. This facility is one of the world’s largest volumetric test facilities owned...
