KC5000/5025/5050/6000

KC5000/5025/5050/6000

Product catalog summary
Specifications:
The document outlines specifications for electric induction motors and professional pumps. The motors are maintenance-free, asynchronous, single-phase, and part of the MEC series by MAZZONI. The pumps feature a brass head and three ceramic pistons, with an elastic coupling.

Models and Codes:
The models listed are KC5000, KC5025, KC5050, and KC6000, with respective codes 3.023.14.194, 3.023.14.209, 3.023.14.207, and 3.023.14.208.

Performance Parameters:
- Pressure (Bar): KC5000 - 200, KC5025 - 250, KC5050 - 200, KC6000 - 200
- Flow Rate (L/min): KC5000 - 21, KC5025 - 20, KC5050 - 25, KC6000 - 30
- Power (HP/kW): KC5000 - 10 (7.5), KC5025 - 15 (11), KC5050 - 15 (11), KC6000 - 15 (11)
- Voltage: All models operate at 400V, 3-phase, 50Hz
- RPM: All models operate at 1450 RPM

Optional Accessories:
Includes rotary nozzle, hose reel, sandblasting kit, pipe cleaning kit, and rotating brush.

Standard Accessories:
Each model comes with a 920 mm automatic gun lance and a 10-meter high-pressure hose (R2, 3/8).

Additional Features:
- Parking brake
- Adjustable safety and by-pass valve
- Detergent tank and injector available on request
- Dimensions: 120x70x105 cm, Weight: 138 kg
See more

Catalog excerpts

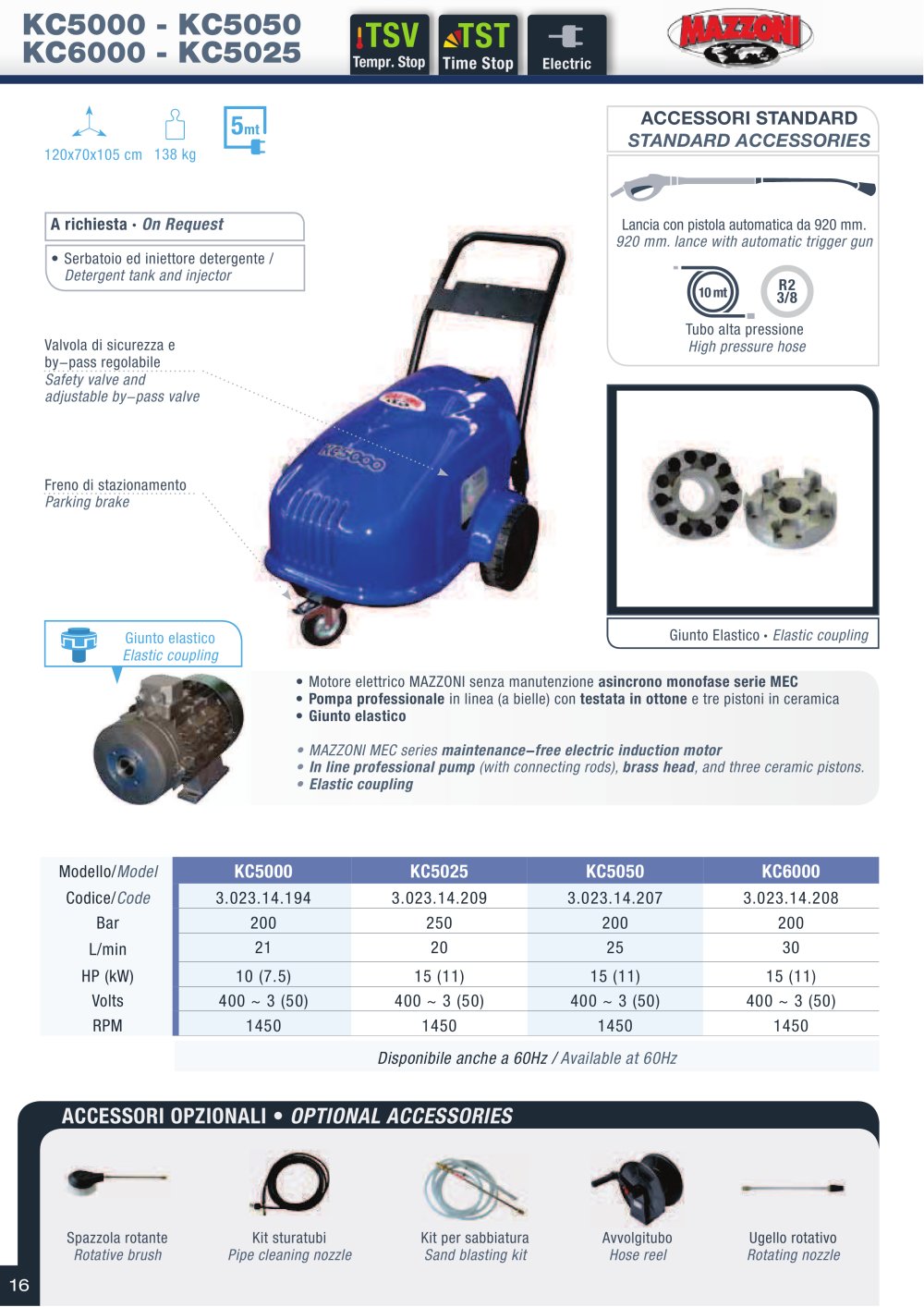

KC5000/5025/5050/6000-1

KC5000 - KC5050 KC6000 - KC5025 TSV TST Tempr. Stop Time Stop Electric ACCESSORI STANDARD STANDARD ACCESSORIES 120x70x105 cm 138 kg A richiesta · On Request Lancia con pistola automatica da 920 mm. Serbatoio ed iniettore detergente / R2 3/8 10 mt Tubo alta pressione Valvola di sicurezza e by-pass regolabile Freno di stazionamento Giunto Elastico · Giunto elastico Motore elettrico MAZZONI senza manutenzione asincrono monofase serie MEC Pompa professionale in linea (a bielle) con testata in ottone e tre pistoni in ceramica Giunto elastico maintenance-free electric induction motor In line professional pump brass head Elastic coupling Modello/ KC5000 KC5025 KC5050 KC6000 Codice/ Bar L/min 3.023.14.194 200 21 3.023.14.209 250 20 3.023.14.207 200 25 3.023.14.208 200 30 HP (kW) Volts RPM 10 (7.5) 400 ~ 3 (50) 1450 15 (11) 400 ~ 3 (50) 1450 15 (11) 400 ~ 3 (50) 1450 15 (11) 400 ~ 3 (50) 1450 ACCESSORI OPZIONALI Spazzola rotante 16 OPTIONAL ACCESSORIES Kit sturatubi Kit per sabbiatura Avvolgitubo Ugello rotativo

 Open the catalog to page 1
