KB4000 - KB4050
KB4000 - KB4050
The document describes two models of air-cooled single-cylinder petrol motors, KB4000 and KB4050, both featuring a professional in-line pump with a brass head and three ceramic pistons. The motors are equipped with a Honda petrol engine and have a power output of 11 HP (8.0 kW) with an RPM of 1450.
Performance Parameters:
- KB4000: 200 Bar, 15 L/min
- KB4050: 150 Bar, 21 L/min
Dimensions and Weight:
- Dimensions: 120x75x105 cm
- Weight: 115 kg
Standard Accessories:
- 920 mm lance with automatic gun
- High pressure hose (10 mt R2, 3/8 and 5/16)
Optional Accessories:
- Rotating nozzle
- Hose reel
- Sandblasting kit
- Pipe cleaning kit
- Rotating brush
Additional Features:
- Parking brake
- Painted steel trolley
Catalog excerpts

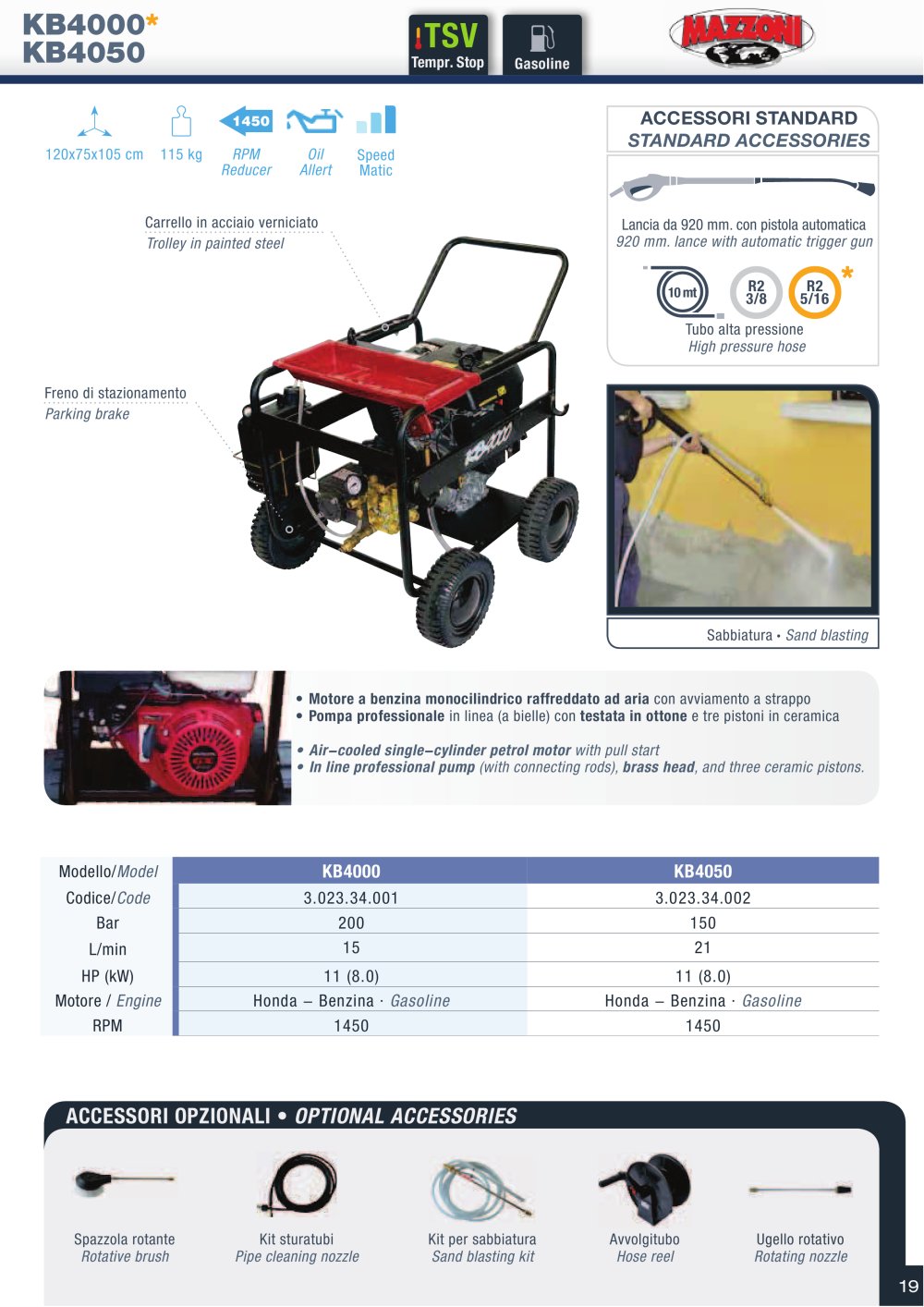

KB4000* KB4050 TSV Tempr. Stop Gasoline ACCESSORI STANDARD STANDARD ACCESSORIES 1450 120x75x105 cm 115 kg Speed Matic Carrello in acciaio verniciato Lancia da 920 mm. con pistola automatica R2 3/8 10 mt R2 5/16 Tubo alta pressione High pressure hose Freno di stazionamento Sabbiatura · Motore a benzina monocilindrico raffreddato ad aria con avviamento a strappo Pompa professionale in linea (a bielle) con testata in ottone e tre pistoni in ceramica Air-cooled single-cylinder petrol motor In line professional pump brass head Modello/ KB4000 KB4050 Codice/ Bar 3.023.34.001 200 15 3.023.34.002 150 21 L/min HP (kW) Motore / RPM 11 (8.0) Honda - Benzina · 1450 ACCESSORI OPZIONALI Spazzola rotante 11 (8.0) Honda - Benzina · 1450 OPTIONAL ACCESSORIES Kit sturatubi Kit per sabbiatura Avvolgitubo Ugello rotativo 19
