MAZZONI
HIGH PRESSURE WASHERS

HIGH PRESSURE WASHERS

Product catalog summary

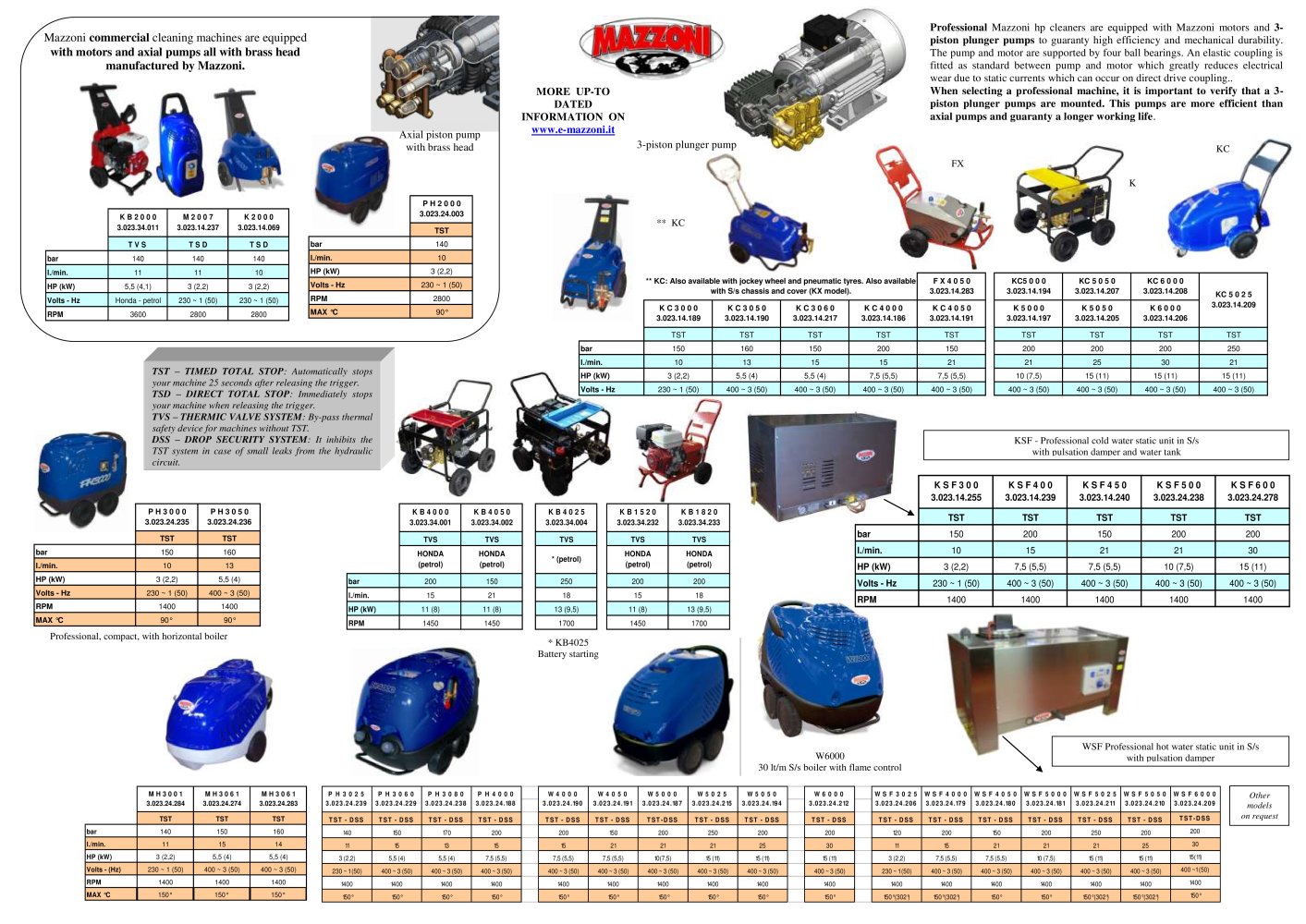

Overview: The document provides technical specifications and features of Mazzoni's commercial cleaning machines, focusing on their 3-piston plunger pumps, motors, and various systems designed to enhance efficiency and durability.

Specifications: The machines are equipped with Mazzoni motors and 3-piston plunger pumps, which are noted for their high efficiency and mechanical durability. The pumps are supported by four ball bearings and feature an elastic coupling to reduce electrical wear.

Key Features:

TST (Timed Total Stop): Automatically stops the machine 25 seconds after releasing the trigger.
TSD (Direct Total Stop): Immediately stops the machine when the trigger is released.
TVS (Thermic Valve System): A bypass thermal safety device for machines without TST.
DSS (Drop Security System): Inhibits the TST system in case of small leaks from the hydraulic circuit.

Performance Parameters: The document lists various models with specifications such as pressure (bar), flow rate (l/min), power (HP/kW), voltage (Volts - Hz), and RPM. For example, one model operates at 150 bar, 10 l/min, with a power of 3 HP (2.2 kW) at 230 Volts ~ 1 (50 Hz) and 1400 RPM.

Construction and Design: The machines are designed with brass head axial pumps and are entirely manufactured by Mazzoni in Italy. They feature thermal protection inside motor windings and are available with various configurations, including options for jockey wheels and pneumatic tires.

Efficiency and Environmental Considerations: Mazzoni motors are classified under the EFF2 efficiency class, designed to reduce electrical consumption while maintaining high performance.

Additional Information: The document includes model numbers and specific configurations for different machine setups, emphasizing the adaptability and customization available for various cleaning needs.

Catalog excerpts

MADE IN ITALY Entirely Designed and Manufactured by Mazzoni s.r.l. MADE IN ITALY MOTOR VENTILATOR WITH FUEL PUMPS FITTING 4 POLES MOTORS WITH ELASTIC COUPLINGS AND PUMP FLANGE Model Volts - Hz Kw (Hp) S114 SE 24 24 0,230 Thermal protection inserted inside coils. S114 SE 12 12 0,230 M 71 (2 POLES) 400 - 1 (50) 0,250 COMPLETE MOTOR VENTILATOR (*2 POLES) H.P. CLEANERS Model Volts - Hz Kw (Hp) Pump Connection *MEC 56 400 - 1 (50) 0,120 left *MEC 56 230 - 1 (50) 0,120 left *MEC 56 400 - 1 (50) 0,120 right *MEC 56 230 - 1 (50) 0,120 right S114 SE 24 24 0,230 right S114 SE 12 12 0,230 right SPARES ASSEMBLY...
