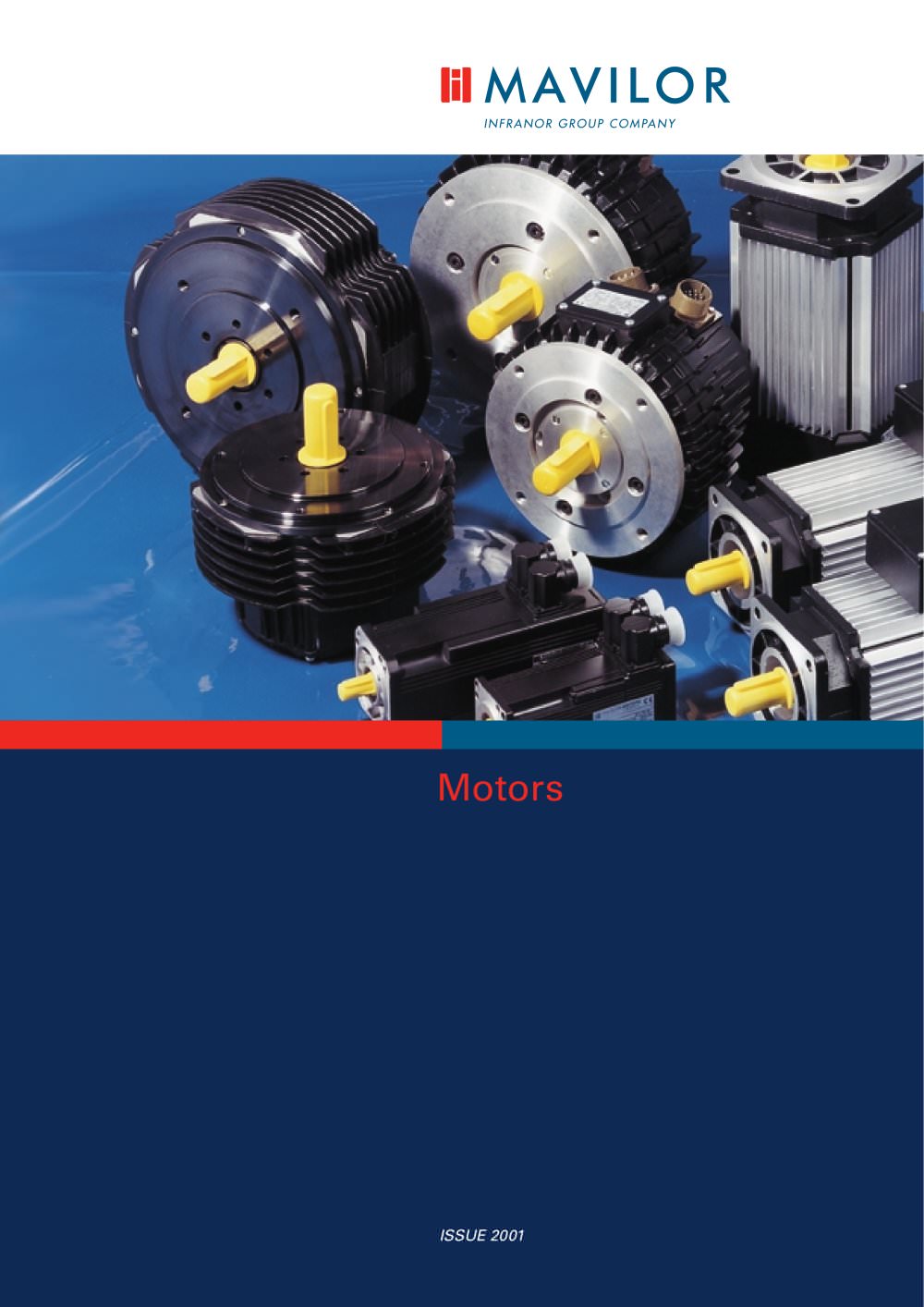

DC Servo motors MSS Series
1 / 5 PagesView full catalog
DC Servo motors MSS Series
Product catalog summary
Overview: The document provides detailed specifications and features of the MAVILOR MSS Series DC Servo Motors, highlighting their high performance and compact design suitable for demanding applications.
Specifications: The MSS Series motors are rated up to 6,000 RPM and feature zero cogging, high acceleration torques up to 10 times the rated torque, and a compact length. They offer a 20% increase in power-to-weight and volume ratios compared to previous designs.
Design Features: These motors incorporate an ironless rotor design, ensuring long brush life and high efficiency. They also include options for tachometers and fail-safe holding brakes, often being half the length of equivalent conventional motors.
Technical Specifications: Key parameters include rated speed, voltage, current, output power, efficiency, torque, and thermal characteristics. The motors are designed to operate efficiently at 40°C ambient temperature.
Performance Curves: The document includes performance curves indicating the continuous operating zone or torque-speed envelope for various models under 40ºC ambient conditions.
Tachometer Specifications: Details on voltage constant, ripple, linearity, reversing error, and other parameters are provided for tachometer types D40 and D26.
Brake Specifications: Information on holding torque, DC voltage, input power, inertia, response time, and mass for different brake types is included.
Optional Accessories: The document lists encoder kits and other optional accessories available for the MSS Series motors.
See more
Catalog excerpts
) Mounting pilot of 50mm and 3 holes M4 on a 67,3 diameter bolt circle for fixing clamps. I > ( ) Mounting pilot of 50mm and 3 holes M4 on a 67,3 diameter bolt circle for fixing clamps. ) Mounting pilot of 50mm and 3 holes M4 on a 67,3 diameter bolt circle for fixing clamps. A BL-111 282 BL-112 307 BL-113 332 >
