AC Servo motors BL 110 / 140 / 190 Series

Product catalog summary

Overview: The document provides technical specifications and features of the BL Series synchronous electrical servomotors, which include the BLS and BLT series. These motors are designed with brushless technology, offering high dynamic response, low maintenance, and enhanced thermal characteristics.

Specifications: The BL Series motors are available in various models (BL 110/140/190 Series) and are characterized by their maximum mechanical speed, stall torque, peak torque, torque-weight ratio, and other electrical and mechanical parameters. The motors operate with sinusoidal or trapezoidal current waveforms and use feedback devices like resolvers or Hall effect sensors for synchronization.

Technical Characteristics: Key parameters include:

Maximum Mechanical Speed: 8,500 rpm
Stall Torque: Varies by model, e.g., 5.0 Nm for BLT-111
Peak Torque: Varies by model, e.g., 20.0 Nm for BLT-111
Torque Constant: Varies by model, e.g., 0.83 Nm/A for BLT-111
Protection: IP-65
Insulation: Class-F

Feedback and Brake Specifications: The BLS series uses a resolver for feedback, while the BLT series uses Hall effect devices. The motors can include a fail-safe holding brake with varying torque and inertia specifications depending on the model.

Performance Curves: The document includes performance curves for different models, illustrating the relationship between speed and torque.

Optional Accessories: Various encoder kits and mounting accessories are available for the BL Series motors, with specific mounting configurations detailed.

Catalog excerpts

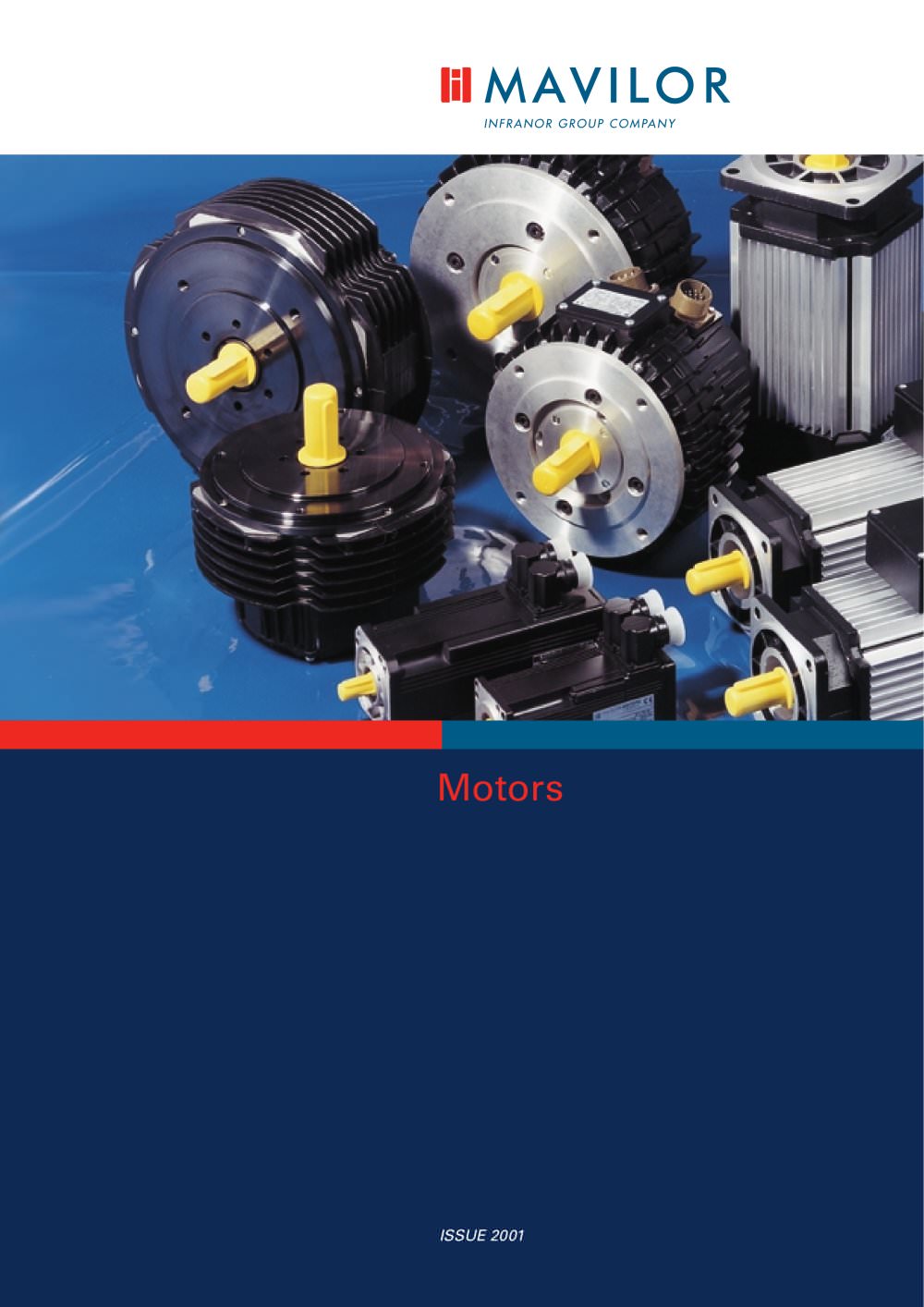

AC Servo motors BL 110 / 140 / 190 Series-1

COBERTA MOTORS CD-Rom2 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Arial", sans-serif; } ISSUE 2001

Open the catalog to page 1

AC Servo motors BL 110 / 140 / 190 Series-2

COBERTA MOTORS CD-Rom2 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:10.00pt "Arial", sans-serif; } .font5 { font:16.00pt "Arial", sans-serif; } .font6 { font:19.00pt "Arial", sans-serif; } AC Servo Motors BL 110/140/190 Sries The BL Sries are synchronous electrical servomotors, with 3 winding phases, supplied with Sinusoidal or Trapezoidal current wave forms. The Feed-Back devices that...

Open the catalog to page 2

AC Servo motors BL 110 / 140 / 190 Series-4

COBERTA MOTORS CD-Rom2 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:16.00pt "Arial", sans-serif; } .font2 { font:19.00pt "Arial", sans-serif; } AC Servo Motors BL 110/140/190 Series Resolver Specifications Input Voltage/Frecuency Primary Element Number of Speed Transformation Ratio Electrical Error Dielectric Strength Mass Rotor Moment of Inertia Operating Temperature Range UNITS 2T8 (Transmitter Speed 1) 10/4.5 Rotor 1X 0.5 ± 5% ±10 max. 500 0.230 0.0123 -55 ~ +155 V/kHz minutes VAC/1 minute kg kg m2 10-3 °C Brake...

Open the catalog to page 4

AC Servo motors BL 110 / 140 / 190 Series-5

COBERTA MOTORS CD-Rom2 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Palatino Linotype", serif; } .font4 { font:18.00pt "Palatino Linotype", serif; } .font5 { font:22.00pt "Palatino Linotype", serif; } .font6 { font:10.00pt "Times New Roman", serif; } BL-110 A6 x 6 x 30 DIN 6885 if- If 1 4, t4 ^= BL-140 A8 x 7 x 32 DIN 6885 94594� BL-190 BLS191 =232.5 BLS 192 =289.5 163 27 M12x25 DIN 933 BLS 191 = 315 (WITH BRAKE) BLS 192...

Open the catalog to page 5

AC Servo motors BL 110 / 140 / 190 Series-6

COBERTA MOTORS CD-Rom2 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:14.00pt "Arial", sans-serif; } .font5 { font:16.00pt "Arial", sans-serif; } .font6 { font:19.00pt "Arial", sans-serif; } .font7 { font:11.00pt "Palatino Linotype", serif; } Optional Accesories MSS Encoder Kit (no encoder) (*) Mounting pilot of 50 mm and 3 holes M4 on a 67,3 diameter bolt circle for fixing clamps. I MSS-2...

Open the catalog to page 6
