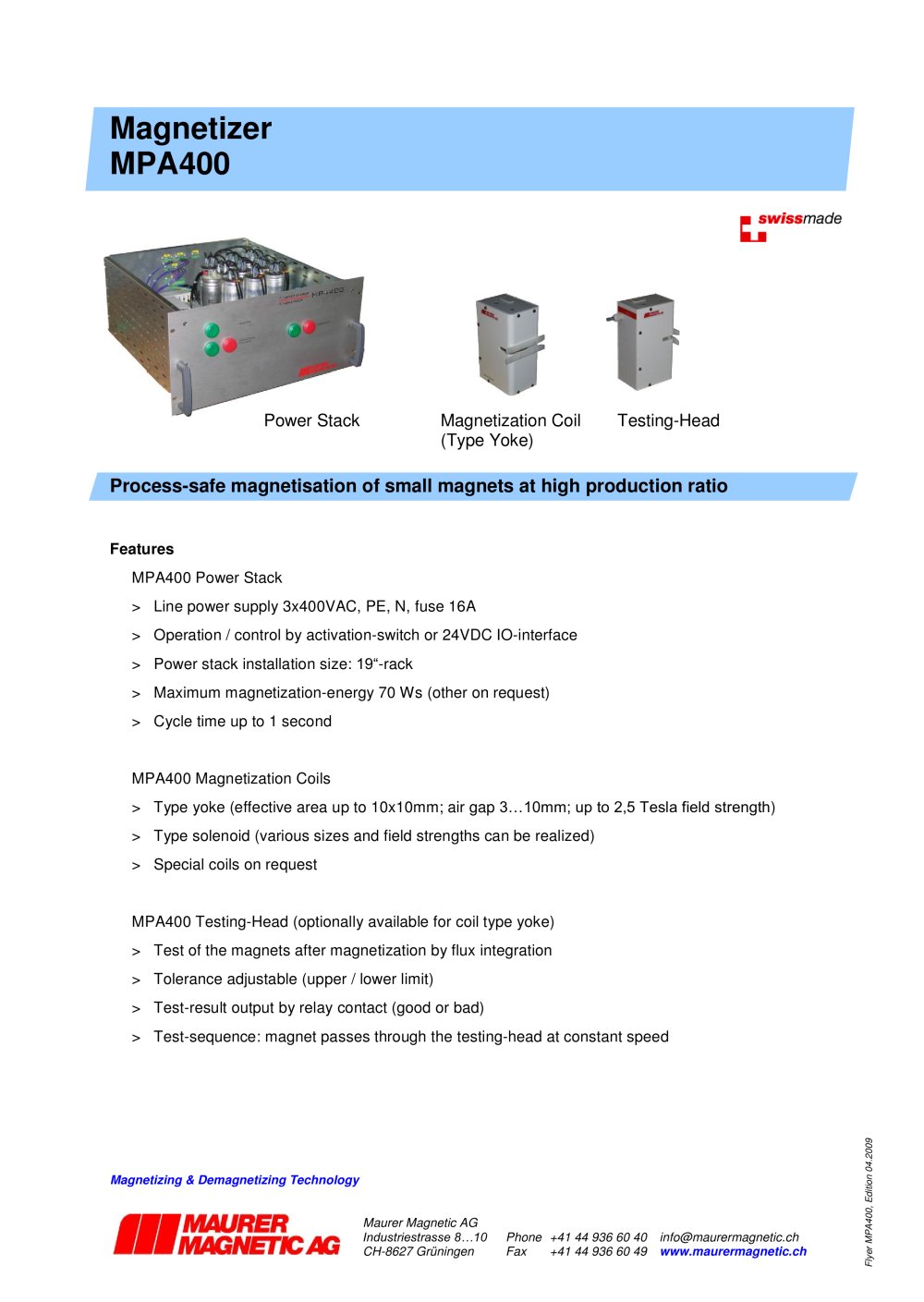

Magnetizer MPA 400
Product catalog summary
Overview: The document provides technical specifications and features of the MPA400 magnetizer, designed for process-safe magnetization of small magnets at a high production ratio.
Specifications:
- Power Stack: Operates with a line power supply of 3x400VAC, PE, N, with a 16A fuse. It can be controlled via an activation switch or a 24VDC IO-interface. The power stack is installed in a 19" rack and offers a maximum magnetization energy of 70 Ws, with other configurations available upon request. The cycle time can be as short as 1 second.
- Magnetization Coils: Available in two types: yoke and solenoid. The yoke type has an effective area of up to 10x10mm, an air gap of 3 to 10mm, and can achieve up to 2.5 Tesla field strength. Solenoid coils can be customized in size and field strength. Special coils are available upon request.
Optional Testing-Head:
- Designed for use with the yoke type coil, it tests magnets post-magnetization using flux integration. The tolerance levels are adjustable, with outputs indicating whether the test result is good or bad via relay contact. The test sequence involves the magnet passing through the testing-head at a constant speed.
Conclusion: The MPA400 is a versatile and efficient solution for magnetizing small magnets, with customizable options to meet specific production needs.
