MATTEI
Compressors

Compressors

Product catalog summary

Overview: The document provides detailed specifications for Mattei's range of rotary vane compressors, including Blade, Classic, Air Centre, Energy Saving, and RVX series. It includes performance metrics such as Free Air Delivery (F.A.D.), power consumption (kW), and noise levels (dB(A)) across different pressure levels (8, 10, and 13 bar).

Blade Compressors: The Blade series offers models with varying capacities and power ratings. Key models include Blade/S 1-3 with F.A.D. ranging from 0.16 to 0.32 m3/min and power from 1.5 to 3 kW. Noise levels are consistent at 64-70 dB(A).

Classic Compressors: The ERC/ERCS series provides options with F.A.D. from 0.16 to 0.32 m3/min and power from 1.5 to 3 kW, maintaining noise levels between 64-70 dB(A).

Air Centre Compressors: The AC series includes models like AC 30 to AC 250, with F.A.D. from 5.62 to 42.57 m3/min and power from 30 to 250 kW. Noise levels range from 66 to 75 dB(A).

Energy Saving Compressors: The Maxima and Optima series focus on energy efficiency, with Maxima models offering F.A.D. from 6.45 to 31.14 m3/min and Optima models providing a range from 2.86 to 35.51 m3/min. Power ratings vary from 30 to 200 kW, with noise levels between 65-75 dB(A).

RVX Series: The RVX series, including Ultra Performance models, offers high-capacity options with F.A.D. from 5.22 to 17 m3/min and power from 55 to 90 kW. Noise levels are consistently at 68 dB(A).

Key Features: The compressors are designed for various industrial applications, emphasizing energy efficiency and performance. The document notes that specifications are subject to change without notice and images are for illustration purposes only.

Catalog excerpts

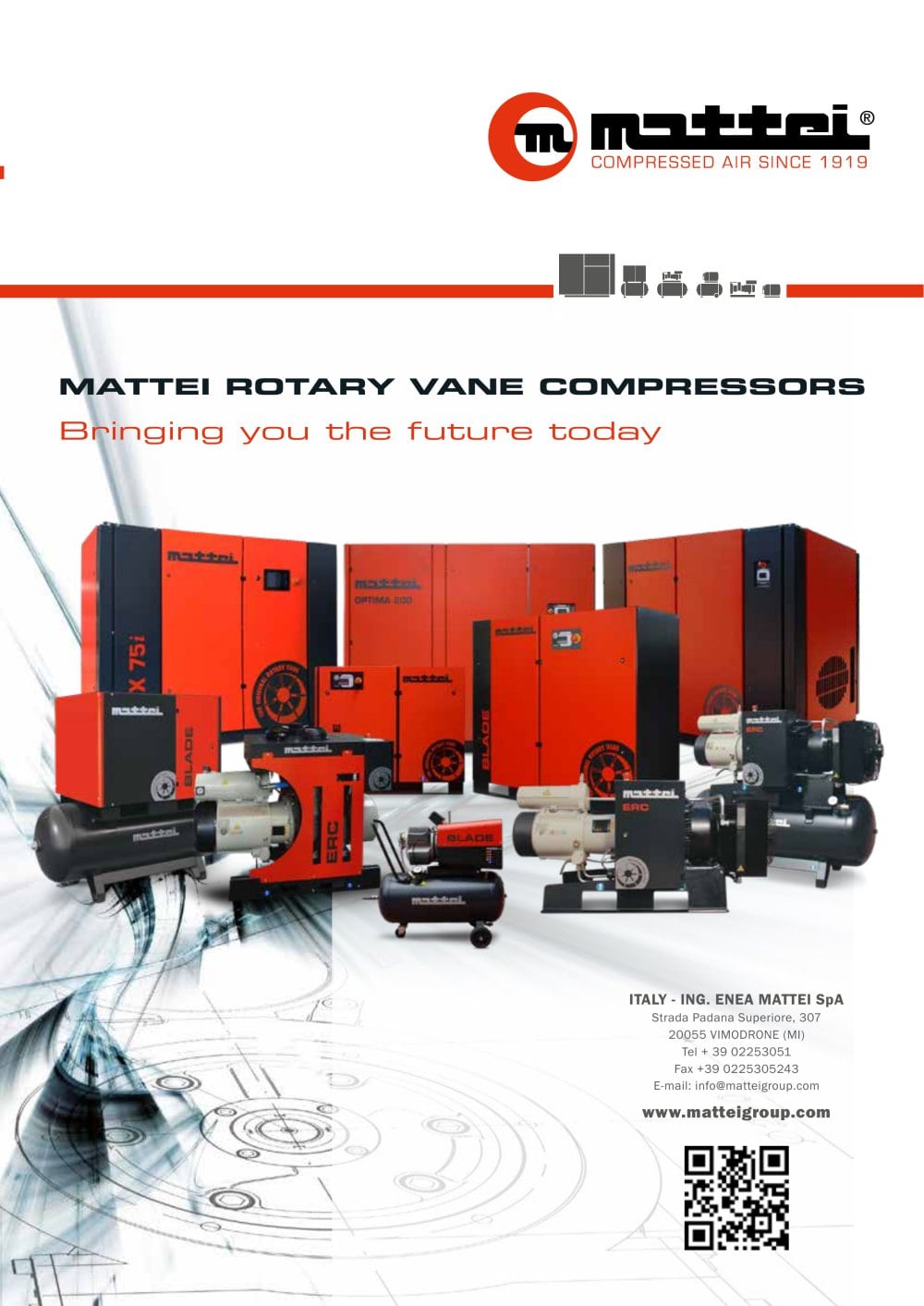

MATTEI ROTARY VANE COMPRESSORS Bringing you the future today ITALY - ING. ENEA MATTEI SpA Strada Padana Superiore, 307 20055 VIMODRONE (MI) Tel + 39 02253051 Fax +39 0225305243 E-mail: [email protected]

Open the catalog to page 1

BLADE COMPRESSORS BLADE / BLADE S / BLADE SE BLADE / BLADE S / BLADE E / BLADE SE BLADE i / BLADE S i / BLADE E i / BLADE SE i BLADE / PLUS - BLADE i / PLUS CLASSIC COMPRESSORS

Open the catalog to page 2

ENERGY SAVING COMPRESSORS MAXIMA / PLUS OPTIMA / PLUS RVXi / PLUS* 20011262 - Data subject to change without notice. Images are for illustration purposes only. RVX ULTRA PERFORMANCE / PLUS* * Available with IE4 motor

Open the catalog to page 4
