MATRIX Pneumatic Division - EPR50 Electronic Pressure Regulator

Product catalog summary

Overview: The EPR 50 is an electronic pressure regulator designed for panel mounting, capable of converting analog or digital input signals into a proportional pneumatic output. It maintains precise downstream pressure using a closed-loop system with an 8-bit microcontroller.

Specifications:

Dimensions: 118 x 64 x 40 mm
Weight: 200 g
Operating Temperature: -10 to +50°C
Supply Voltage: 24 Vdc ± 10%
Maximum Power Consumption: 2 W
Maximum Flow Rate: 60 Nl/min @ 6 bar
Reaction Time: < 5 ms
Response Time: 60 ms (rise), 100 ms (fall)
Sensitivity, Linearity, Hysteresis, Repeatability: < 0.5% F.S.

Features:

Competitive performance/price ratio
Compact and lightweight design
Fast response times for precise pressure regulation
Programmable configuration for adaptability
Low power consumption with no air consumption in steady state
Remote control via RS-232

Applications: Suitable for industrial applications requiring precise pressure adjustments, such as robotics, tensioning systems, testing devices, and more, across industries like food, automotive, textile, and packaging.

Identification Code: The EPR 50 can be configured with different inlet and outlet pressure ranges, electrical connection types, and input types to suit specific requirements.

Catalog excerpts

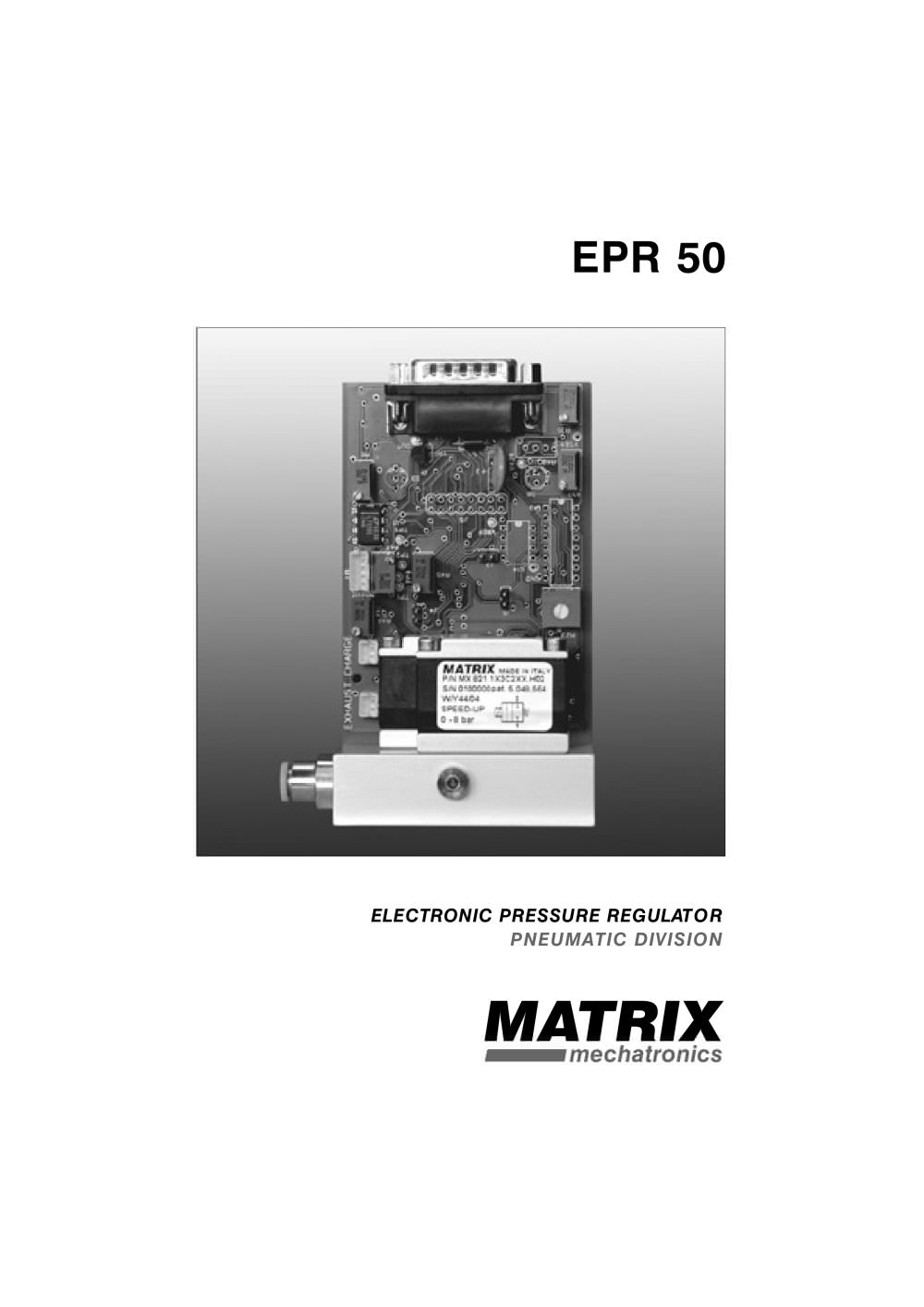

MATRIX Pneumatic Division - EPR50 Electronic Pressure Regulator-1

ELECTRONIC PRESSURE REGULAT O R P N E U M ATIC DIVISION EPR 50 MATRIX mechatronics

Open the catalog to page 1

MATRIX Pneumatic Division - EPR50 Electronic Pressure Regulator-2

EPR 50 - ELECTRONIC PRESSURE REGULATOR The EPR 50 is a closed loop, panel mounting, electronic pressure regulator able to convert a variable analog or digital input signal (current, voltage, RS-232) into a proportional pneumatic output and maintain with precision a required downstream pressure. Equipped with an 8 bit microcontroller, it can process signals and commands, carry out complex functions and easily interface with other control/monitor systems via serial RS-232, perfectly integrating in applications which had required more elaborate and expensive systems up till now. The compact and...

Open the catalog to page 2

MATRIX Pneumatic Division - EPR50 Electronic Pressure Regulator-3

GENERAL CHARACTERISTICS Dimensions 118 x 64 x 40 mm (1) Weight 200 g Protection ratio N/A Pneumatic connections G 1/8 Operating temperature -10 to +50 C° Handled fluid Filtered, non-lubricated and dry air Filtration ratio 20 ì Supply voltage 24 Vdc ± 10% Maximum power consumption 2 W Maximum flow rate 60 Nl/min @ 6 bar Reaction time < 5 ms Response time (*) 60 ms (2) - 100 ms (3) Sensibility < 0,5 % F.S. Linearity < 0,5 % F.S. Hysteresis < 0,5 % F.S. Repeatability < 0,5 % F.S. (*) Volume 30 cm3 • @ P = 8 b ar • (1) without fittings • (2) from 2 to 4 bar (rise time) • (3) from 4 to 2 bar (fall...

Open the catalog to page 3

MATRIX Pneumatic Division - EPR50 Electronic Pressure Regulator-4

EPR 50 MATRIX S.p.A. - Pneumatic Division C.so Vercelli n. 330, 10015 Ivrea (To) Italy Te l : +39 0125 615442 Fax: +39 0125 615377 [email protected] - www. matrix. to. it MATRIX mechatronics INLET EXHAUST OUTLET View from B (View A) (View B) View from A 0-7V 24Vdc 10V 0-10V RS-232 RS-232 M4 n.2

Open the catalog to page 4
