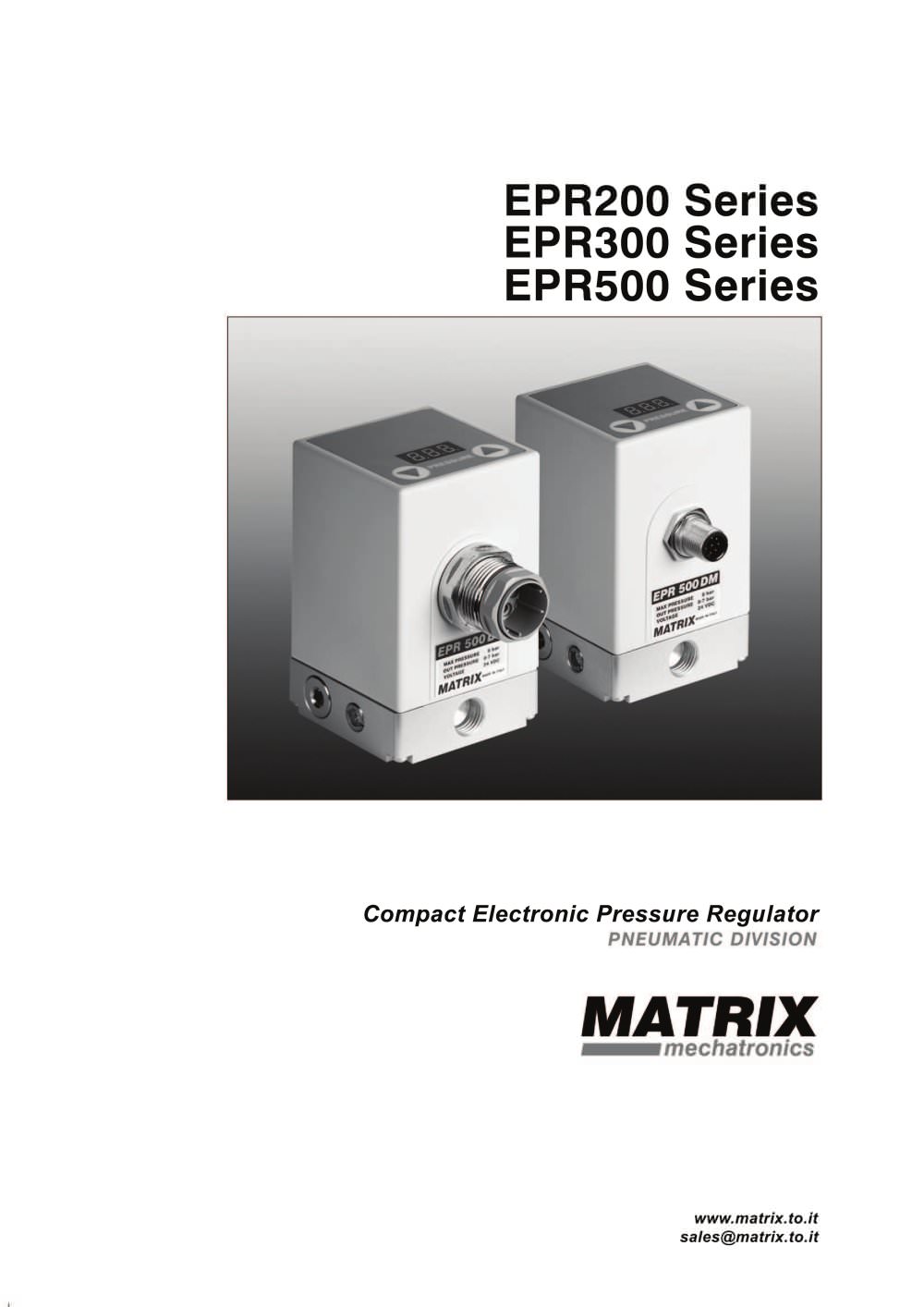

EPR200 Sries EPR300 Sries EPR500 S驩ries Compact Electronic Pressure Regulator PNEUMATIC DIVISION MATRIX ^^^m mechatronics www.matrix.to.itsales@matrix.to.it
Open the catalog to page 1
MATRIX mechatronics EPR 200/300/500 Sries Compact Electronic Pressure Regulator The new range of electronic proportional pressure regulators belonging to the EPR Sries (EPR200, EPR300, EPR500) is the resuit of the exprience of MATRIX in the development of advanced mechatronics Systems for industrial automation and process control applications (automotive, packaging, robotics...)- The new EPR Sries, featuring a perfect synergy between high dynamic efficiency that is typical of the innovative technology in MATRIX pneumatics and smart control System, is able to satisfy any application...
Open the catalog to page 2
MATRIX EPR 200/300/500 Sries f mechatronics Compact Electronic Pressure Regulator Description Compact direct-operated 鄩lectronic pressure regulators designed to accurately adjust and maintain the required output pressure. Equipped with an integrated microprocessor able to process inputs, signais and carry out complex functions, the EPR Sries regulators easily interface with other industrial process control Systems and can be configured to operate with diffrent control options such as 0-5 / 0-10 VDC, 4-20 m A, keypad or RS232 remote connections. The EPR S驩ries (200, 300 and 500) is...
Open the catalog to page 3
MATRIX mechatronics EPR 200/300/500 Sries Compact Electronic Pressure Regulator Technical characteristics EPR200 EPR300 EPR500 Dimensions 60 x 60 x 96.5 mm Weight 440 gr 465 gr 490 gr Protection ratio IP65 Pneumatic connections G % Operating temprature range -10+50<C Fluid Non- lubricated dry air, neutral gases (- 10 +50<C) Required filtration ratio 20 um Power supply 24VDC +10% Max power consumption 1,5 A 2,2 A 3 A Input signal 0-5V, 0-10V (impdance 10KQ) 4-20mA (impdance 357Q) RS232 (2400,n,8,1) keypad (Digital versions only) Max flowrate @ 6 bar 150 Nl/min 300 Nl/min 500 Nl/min Max...
Open the catalog to page 4
MATRIX EPR 200/300/500 Sries mechatronics _ 鮄 Compact Electronic Pressure Regulator Round DIN43651 type connector dimensions and pin-out (H) © 0T i il y 8ioo fM O^OO 5 z 4 z 4 4 -h h n n v m lO h 01 3
Open the catalog to page 5
MATRIX imechatronics EPR 200/300/500 Sries Compact Electronic Pressure Regulator M12 8P type connector dimensions and pin-out (M)
Open the catalog to page 6
MATRIX EPR 200/300/500 Sries \mechatromcs _ Compact Electronic Pressure Regulator Round DIN43651 type connection kit pin-out (H) VIEW A h CONNECTIONS CABLE COLOUR RED GREEN GREY VIOLET BLACK ORANGE YELLOW 1- PWR 24VDC 2- GND 3- +4-20 mA 4- IN 0-10V 0-5V 5- RX232 6- TX232 3 c -Q O Kit Code Cable length 820.818Y 2000 mm 820.819Z 5000 mm
Open the catalog to page 7
MATRIX EPR 200/300/500 Sries mechatronics _ 鮄 , , Compact Electronic Pressure Regulator M12 8P type connection kit pin-out (M) VIEW A CONNECTIONS 6- PWR 24VDC 2-GND 1- +420 mA 4- IN 0-10V 0-5V 3- RX232 7- TX232 8- GND (safety)O. Kit Code Cable length 903.164C 2000 mm 903.171J 5000 mm
