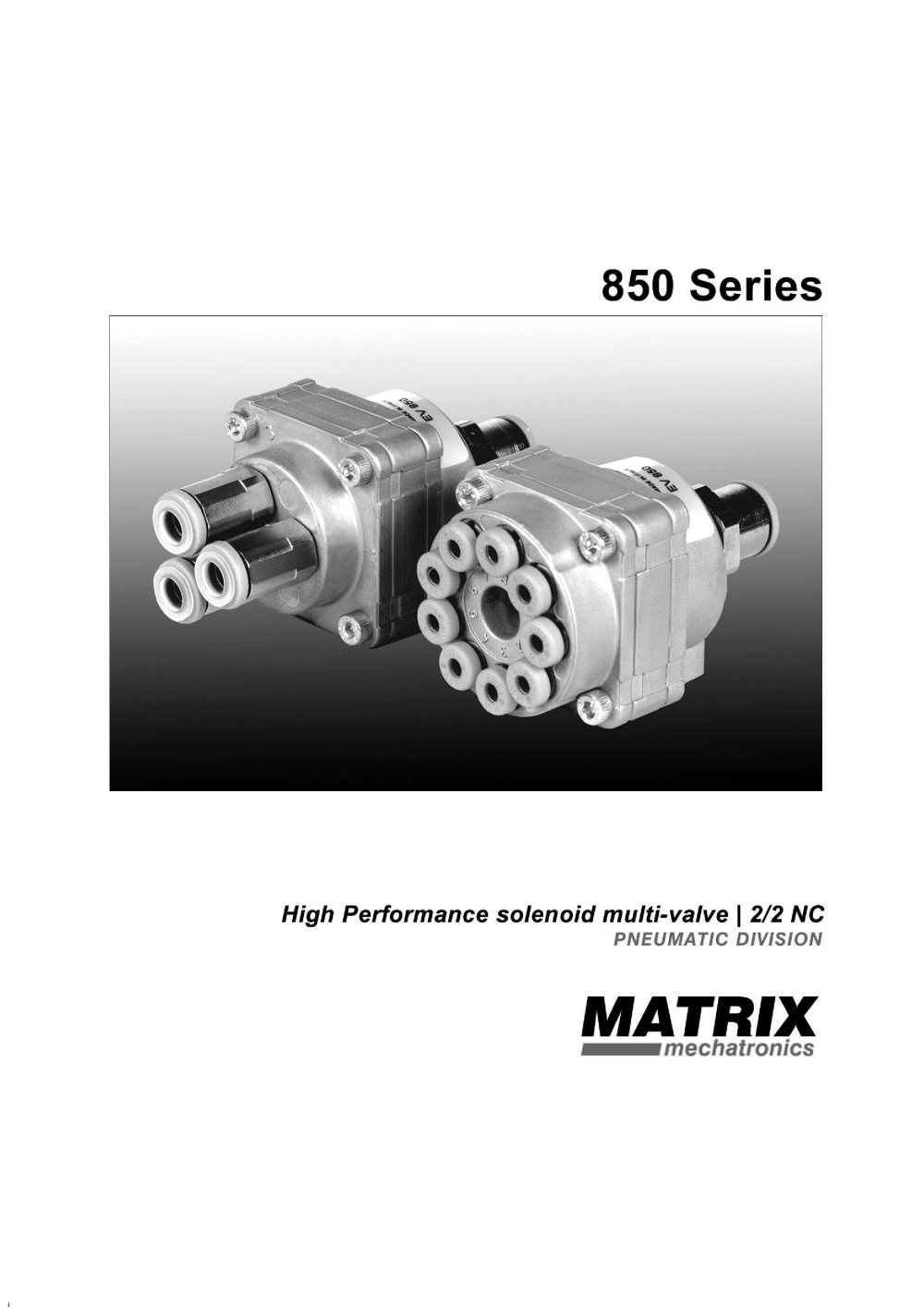

850 Sries High Performance solenoid multi-valve \ 2/2 NC PNEUMATIC DIVISION MATRIX ^^^mmechatronics

SOLENOID VALVES 850 SERIES 2/2 Pneumatic solenoid valves of 850 Sթries are of the 2/2 NC type. Their modularity represents the innovation in this Sries. Nine independent shutters with common pneumatic feed and with either separate outlets or assembled outlets in order to incrment the flow rate. The response time, in milliseconds, is independent from the flow rate value, and its operative life is over 500 millions cycles. The S驩ries is fit for step change the flow rate (till nine steps in single outlet version), transforming a simple 2/2 into a solenoid valve, having a proportional flow rate...

DIRECT ■ PFM CONTROL: _ _ N. 9 NC GENERAL CHARACTERISTICS FLUID Non-lubricated dry air, neutral gases (-10 + 50°C) FILTRATION RATING Min 40 micron TEMPERATURE -10 + 50°C (Standard version) RESPONSE TIME IN OPENING 24 < 5 ms XX/KK< 1 ms RESPONSE TIME IN CLOSING 24 < 2 ms XX/KK< 1 ms MAXIMUM FREQUENCY 200 Hz 500 Hz WEIGHT 160g PRODUCT LIFE EXPECTANCY > 500 M/s cycles IP RATING IP62 IDENTIFICATION CODE wꨪ몫誫i몪k모訫誫뫫뫪誨誫 M 8 0 0 0 24 SINGLE OUTLET FLOW RATE (at 6 bar) M 100 N//min 140N//min (control tension IXX|[KK_) TYPE 180 N//mm (control tension ,XX||KK 2 2/2 CONTROL TENSION No. ELECTRICAL...

HUHHI 850 2/2 NC I 46 AWG 20-24 L = 500 mm VIEW A ACCESSORIES Rթfrence Quantity Description 1 1 PUSH-IN FITTING FOR 0 10 TUBE NOTE; Inch size available CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS KK CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS XX l.'p 11 (V1) Pressure run Pressure run Current run N.B. KK MODELS ARE CONTROLLED IN TENSION N.B. XX MODELS ARE CONTROLLED IN CURRENT V1 = 24 VDC t 1 2 ms V2 5 VDC I 1 0.5 A t 1 = 1.5 ms I 2 = 0.2 A V1 24 VDC t 1 2 ms V2 5 VDC I 1 0.8 A t 1 1.5 ms I 2 0.2 A V 1 24 VDC t 1 3 ms V2 5 VDC I 1 1.0 A t 1 1.5 ms I 2 = 0.3 A Q N(/min 120 110...

851 2/2 NC DIRECT PFM PNM PWM CONTROL: N. 1 NC GENERAL CHARACTERISTICS FLUID Non-lubricated dry air, neutral gases (-10 + 50°C) FILTRATION RATING Min 40 micron TEMPERATURE - 10 + 50°C (Standard version) RESPONSE TIME IN OPENING 24 < 5 ms XX/KK< 1 ms RESPONSE TIME IN CLOSING 24 < 2 ms XX/KK< 1 ms MAXIMUM FREQUENCY 200 Hz 500 Hz WEIGHT 260 g PRODUCT LIFE EXPECTANCY > 500 M/s cycles IP RATING IP62 IDENTIFICATION CODE M 8 1 0 0 1T] HHHHHHHnH HHHI OUTLETS FUNCTION 1 1 Outlet C NC MAXIMUM FLOW RATE (at 6 bar) M 900 N//min 1260 Ni/min (control tension fXXiri<Kl) TYPE 1620 N//min (control tension...

851 2/2 NC AWG 20 Օ 24 L = 500 mm © -r VIEW A VIEW A ACCESSOWES Rfrence Ouantity Description 1 1 PUSH-IN FITTING FOR 0 10 TUBE 2 1 PUSH-IN FITTING FOR 0 8 TUBE NOTE: Inch si/e avaiiabie CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS KK CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS XX Pressure run -P100% 11 (V1) r-V1 N.B. KK MODELS ARE CONTROLLED IN TENSION N.B. XX MODELS ARE CONTROLLED IN CURRENT V1 = 24 VDC t 1 3 ms V 2 = 5 VDC I 1 3.5 A t 1 =1.5 ms 12=1 A V1 = 24 VDC t 1 4 ms V2 = 5 VDC 11= 4.0 A t 1 =1.5 ms 12=1 A Q NZ/min FLOW RATE \驻\ Qn = 540 N//min 1.100 1.000 900 C = 128...

HHHBI NC PFM PNM PWM CONTROL: N. 3 NC GENERAL CHARACTERISTICS FLUID Non-lubricated dry air, neutral gases (-10 + 50°C) FILTRATION RATING Min 40 micron TEMPERATURE - 10 + 50DC (Standard version) RESPONSE TIME IN OPENING 24 < 5 ms XX/KK < 1 ms RESPONSE TIME IN CLOSING 24 < 2 ms XX/KK < 1 ms MAXIMUM FREQUENCY 200 Hz 500 Hz WEIGHT 250 g PRODUCT LIFE EXPECTANCY > 500 M/s cycles IP RATING IP62 IDENTIFICATION CODE M OUTLETS 0 3 3 Outlets MAXIMUM FLOW RATE (at 6 bar) M 300 N//min 420 N//min (control tension [XX][KK\ 520 N//min (control tension | XX |[KKl) CONTROL TENSION 24 24 VDC ± 10% 2.9- -8.7W...

MAX 6 VIEW A ACCESSORIES Rfrence Quantity Description 1 1 PUSH-IN FITTING FOR 0 10 TUBE 2 3 PUSH-IN FITTING FOR 0 6 TUBE NOTE: Inch size available CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS KK CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS XX -P100' -11 (V1) Pressure Tension rur驯 - V2 N.B. KK MODELS ARE CONTROLLED IN TENSION N.B. XX MODELS ARE CONTROLLED IN CURRENT V1 = 24 VDC t 1 ms V2 = 5 VDC I 1 t 1 1.5 ms I 2 = 0.3 A V1 24 VDC t 1 2.5 ms V2 5 VDC I 1 1.5 A t 1 1.5 ms I 2 = 0.3 A V1 = 24 VDC t 1 3.5 ms V2 5 VDC I 1 2.8 A t 1 1.5 ms I 2 = 0.3 A FLOW RATE \m\ ELECTRICAL PORT...

859 2/2 NC CONTROL GENERAL CHARACTERISTICS FLUID Non-lubricated dry air, neutral gases (-10 + 50°C) FILTRATION RATING Min 40 micron TEMPERATURE - 10 + 50°C (Standard version) RESPONSE TIME IN OPENING 24 < 5 ms XX/KK<1 ms RESPONSE TIME IN CLOSING 24 < 2 ms XX / KK < 1 ms MAXIMUM FREQUENCY 200 Hz 500 Hz WEIGHT 210 g PRODUCT LIFE EXPECTANCY > 500 M/s cycles IP RATING IP62 IDENTIFICATION CODE 5 140 N//min (control tension [XX][KK] ; TYPE 180 N//min (control tension [XX][KK] ; 2 2/2 CONTROL TENSION Օ No. ELECTRICAL CONTROLS I 9 I 9 Controls 24 24 VDC ±10% 2.9 W XX Speed-up in current (48 VDC)...

859 2/2 NC AWG 24 L = 500 mm VIEW A MAX 6 ACCESSORIES Rթfrence Quantity Description 1 1 PUSH-IN FITTING FOR 0 10 TUBE 2 9 PUSH-IN FITTING FOR 0 4 TUBE NOTE: Inch size available CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS KK CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS XX 1/p H (V1) Pressure run Pressure run N.B. KK MODELS ARE CONTROLLED IN TENSION N.B. XX MODELS ARE CONTROLLED IN CURRENT V1 = 24 VDC t 1 2 ms V2 5 VDC I 1 0.5 A t 1 =1.5 ms T 2 = 0.2 A V1 = 24 VDC t 1 = 2 ms V2 = 5 VDC I 1 0.8 A t 1 1.5 ms I 2 = 0.2 A V1 24 VDC t 1 3 ms V2 5 VDC I 1 1.0 A t 1 1.5 ms I 2 = 0.3 A Q...
