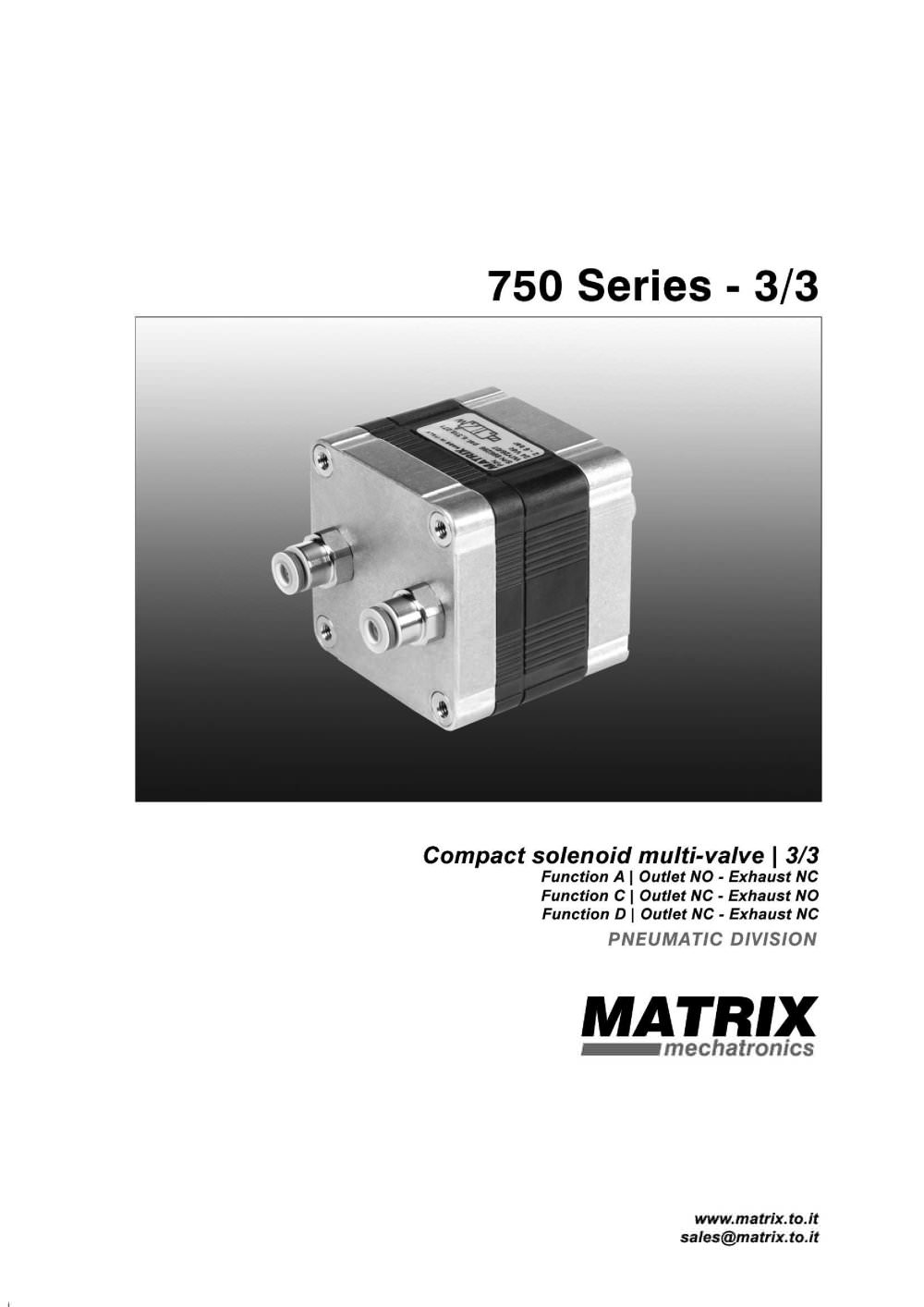

750 Sries - 3/3 Compact solenoid multi-valve \ 3/3 Function A \ Outlet NO - Exhaust NC Function C \ Outlet NC - Exhaust NO Function D \ Outlet NC - Exhaust NC PNEUMATIC DIVISION MATRIX ^^^mmechatronics www. matrix. to. it sales@matrix. to.it
Open the catalog to page 1
SOLENOID VALVES 750 SERIES 3/3 750 Sթries 3/3 prsents a small-sized single body with four utilities, assuming, according to the diffrent models, the following configurations: 驕 NC outlet - NO air drain port (function code :'C - Exhaust center) This configuration allows feeding separately four pneumatic rooms and their corresponding automatic air drain port in absence of electric control. NC outlet - NC air drain port (function code: D' - Closed center) This configuration allows separately feeding four pneumatic rooms and maintaining the pressure level in absence of electric control....
Open the catalog to page 2
FUNCTION A FUNCTION C FUNCTION D GENERAL CHARACTERISTICS FLUID Non-lubricated dry air, neutral gases (-10 + 50°C) FILTRATION RATING Min 40 micron TEMPERATURE -10 + 50°C (Standard version) RESPONSE TIME IN OPENING 12 / 24 < 7 ms JJ < 5 ms XX/KK<2ms RESPONSE TIME IN CLOSING 12 / 24 < 3 ms JJ < 2 ms XX/KK<2ms MAXIMUM FREQUENCY 100 Hz 200 Hz 300 Hz WEIGHT 340 g PRODUCT LIFE EXPECTANCY > 500 M/s cycles IP RATING IP52-IP62-IP65 IDENTIFICATION CODE A Outlet NO - ExhaustNC C Outlet NC - ExhaustNO D Outlet NC - ExhaustNC FLOW RATE (at 6 bar) H 100 NV/min 160 N//min TYPE 200 N//min (control tensiono...
Open the catalog to page 3
752 3/3 AWG 24 L = 500 mm VIEW A 2 OUtLETS 1 G1/8 VIEW A ACCESSORIES Rթfrence Quantity 1 Description 1 1 PUSH-IN FITTING 0 10 2 2 PUSH-IN FITTING 0 10/8/6 3 1 SILENCER NOTE: Inch size available CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS KK CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS XX Tension run H (V1) -P100% N.B. KK MODELS ARE CONTROLLED IN TENSION N.B. XX MODELS ARE CONTROLLED IN CURRENT V1 = 24 VDC t1 = 2 ms V 2 = 5 VDC I 1 = 0.7 A 11= 2 ms 12= 0.3 A FLOW RATE \m\ ELECTRICAL PORT CONNECTION On = 118 Ni/min C = 28.57 N//min bar b = 0.258 COLOUR 8 CONTROLS (OUTLET) BLACK...
Open the catalog to page 4
NC-NO CONTROL: C PNM PWM FUNCTION A FUNCTION C FUNCTION D vv / 1 rr /t t t t rr t / i t t w rr /T 1 t t t W y 3 1 x y 3 1 x GENERAL CHARACTERISTICS FLUID Non-lubricated dry air, neutral gases (-10 + 50°C) FILTRATION RATING Min 40 micron TEMPERATURE - 10 + 50°C (Standard version) RESPONSE TIME IN OPENING 12 / 24 < 7 ms J J < 5 ms XX/KK<2ms RESPONSE TIME IN CLOSING 12 / 24 < 3 ms JJ < 2 ms XX / KK < 2 ms MAXIMUM FREQUENCY 100 Hz 200 Hz 300 Hz WEIGHT 340 g PRODUCT LIFE EXPECTANCY > 500 M/s cycles IP RATING IP 52 - IP 62 - IP 65 IDENTIFICATION CODE A Outlet NO - Exhaust NC C Outlet NC - Exhaust...
Open the catalog to page 5
754 3/3 NC-NO 51.7 AWG24 L= 500 mm r*- VIEW A B- -BE 5) MAX MAX 55 VIEW A ACCESSORIES Rթfrence Quantity Descr/pf/on 1 1 PUSH-IN FITTING 0 10 2 4 PUSH-IN FITTING 0 6/4 3 1 SILENCER NOTE: Inch size available CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS KK CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS XX i/p -P100% Pressure run 1 1 (VI) N.B. KK MODELS ARE CONTROLLED IN TENSION N.B. XX MODELS ARE CONTROLLED IN CURRENT V1 = 24 VDC t 1 = 2 ms V 2 = 5 VDC I 1 = 0.7 A t 1 = 2 ms l 2 = 0.3 A FLOW RATE \m} ELECTRICAL PORT CONNECTION Qn = 118N!/min C = 28.57 N//min bar b = 0.258 COLOUR 8...
Open the catalog to page 6All MATRIX mechatronics catalogs and technical brochures
-
