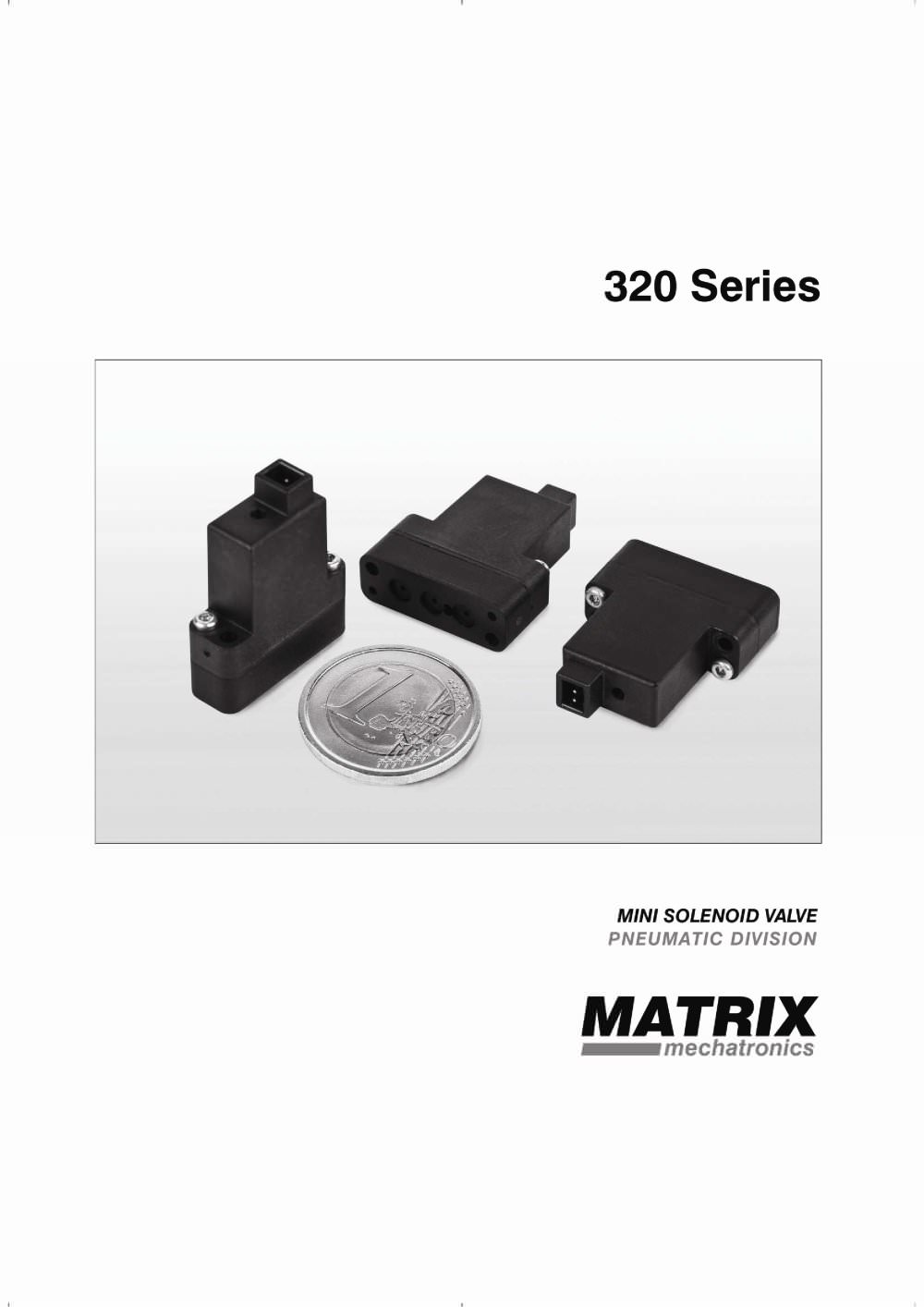

MATRIX Pneumatic Division - 320 Series Mini solenoid valve - 1

I 320 Sries MINI SOLENOID VALVE PNEUMATIC DIVISION MATRIX ^^^mmechatronics

MATRIX Pneumatic Division - 320 Series Mini solenoid valve - 2

320 Sries - Model 321 CONTROL DIRECT PFM PNM PWM 2/2 3/2 NC NO NC NO W c W tz: GENERAL CHARACTERISTICS Working fluid (0 to 50 °C) Non-lubricated dry air, inert gases Filtration requirements 40 micron (min.) Temprature range -10 to 50 °C (ambient) Opening time 3 ms Closing time 1,5 ms Maximum working frequency 200 Hz Weight ~9gr. Product life expectancy up to % billion cycles IP rating IP52 (std.) - IP62 (opt.) PRODUCT IDENTIFICATION D C X 3 2 1 E 3 C 3 2 4 OUTLETS FUNCTION 1 1 Outlet C NC A NO SINGLE OUTLET FLOW RATE (at 6 bar) C 30 L/min. TYPE 3/2 2/2 VERSION D Manifold version (NBR flap)...

Open the catalog to page 2

MATRIX Pneumatic Division - 320 Series Mini solenoid valve - 3

320 Sries - Model 321 3/2 2/2 NC NO Integrated Molex Pico-Spox connection type (rf. SD874390200) 24,50 8,00 ) O } 11,00 Subplates / Manifolds (1, 2,4, 6, 8,10 seats) Q Q Q Q QQQQQQ^
