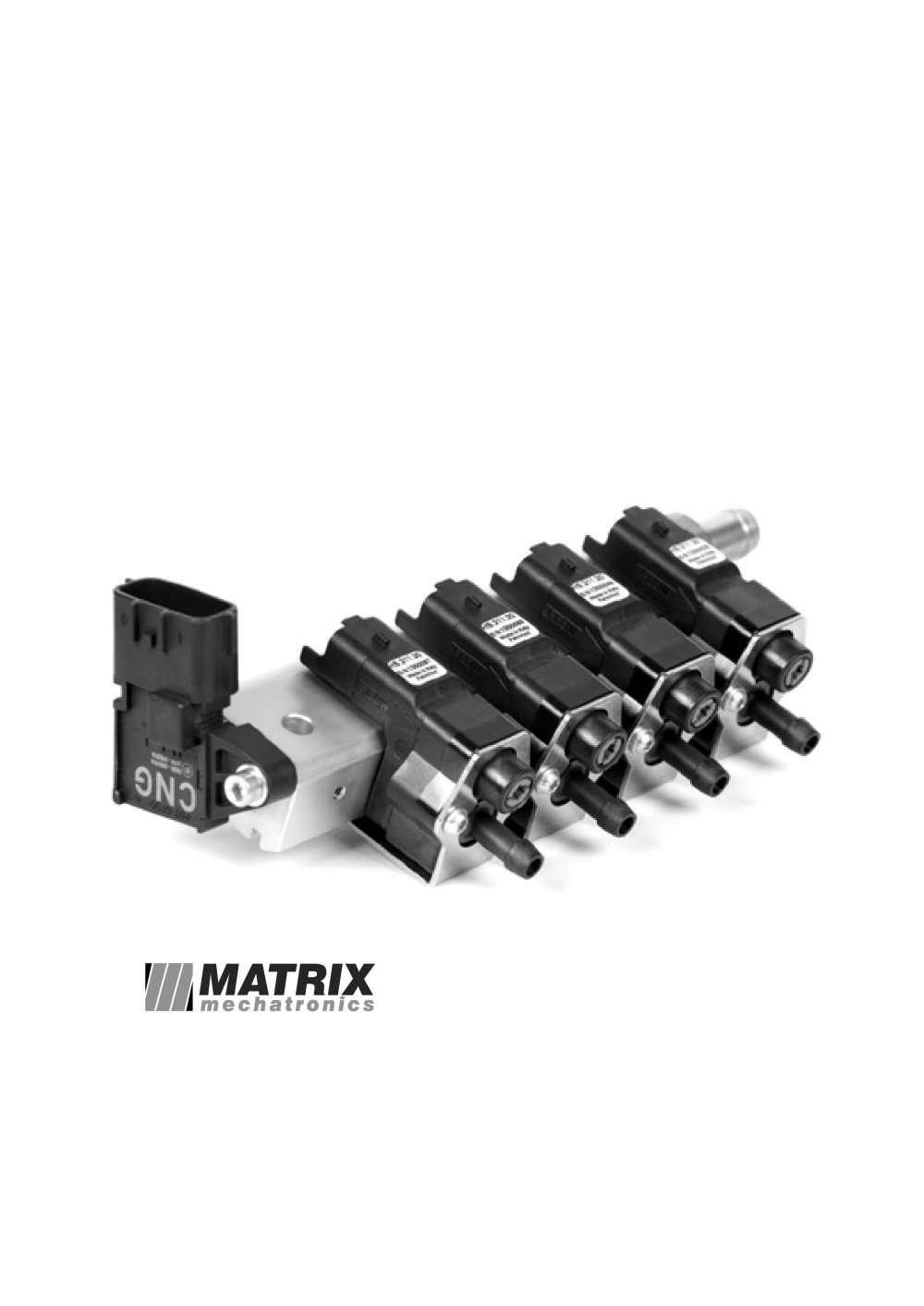

LPG & CNG COMPONENTS MULTI-OUTLETS INJECTORS SINGLE-OUTLET INJECTORS INJECTOR RAILS FILTERS TEMPERATURE & PRESSURE SENSOR
Open the catalog to page 1
HS GAS INJECTORS HIGHLIGHTS MATRIX S.p.A. - Automotive Division - CNG & LPG Components - Rev.00 Top-notch performances in alternative fuels applications Very high repeatability and precision Ultra-low mass (38 gr Flying version) Long operating life, over 500 millions of cycles Low consumption in holding mode Ultra linear shutter Response time 0,5 ms Opening time 0,9 ms Reduced noise Snap-in version for intake manifold Flying version Sicma II connection 0,5 ms OPEN CLOSED Calibrate nozzle Intake manifold Retention clip Calibrate nipple 1 2
Open the catalog to page 2
HS Flying Series Coil 2 - 3 Ohms Flow 73 - 95 - 106 Nlm @ 1 bar Dimension 65 x 33 x 28 mm Weight 38 gr MATRIX S.p.A. - Automotive Division - CNG & LPG Components - Rev.00 HS SYSTEM GAS INJECTORS HS Snap-in Coil 2 Ohms Flow 73 - 95 Nlm @ 1 bar Dimension 57 x 41 x 28 mm Weight 45 gr HS Rail Series Coils 2 - 3 Ohms Flow 73 - 95 - 106 Nlm @ 1 bar Dimension On demand
Open the catalog to page 3
MATRIX S.p.A. - Automotive Division - CNG & LPG Components - Rev.00 HD GAS INJECTORS HIGHLIGHTS Multi-outlet configuration, compact dimensions and low mass Proportional flowrate control (1 - 2 outlets version) with digital logic Long operating life, over 500 millions of cycles Very high repeatability, pecision and linearity Response time 0,5 ms - Opening and closing time 1 ms Ultra-linear shutter technology High flowrate versions High pressure versions Reduced noise Calibrated outlet nozzle HD 344 Sicma II connection 100 80 60 40 20 Q2 4 6 8 10 12 14 16 18 20 Injection time [ms] 800 600 400...
Open the catalog to page 4
MATRIX S.p.A. - Automotive Division - CNG & LPG Components - Rev.00 HD SYSTEM GAS INJECTORS HD 344 Series Coil 2 - 3 Ohms Flow 72 - 94 Nlm @ 1 bar Dimension 62 x 28 x 61 mm Weight 230 gr HD 344 T-Map Series Coil 2 - 3 Ohms Flow 72 - 94 Nlm @ 1 bar Dimension 77 x 28 x 61 mm Weight 350 gr HD 322 Series Coil 2 - 2,5 - 3 Ohms Flow 100 - 160 Nlm @ 1 bar Dimension 62 x 28 x 61 mm Weight 230 gr KJ 341 Series 24 VDC Coil 5 Ohms Flow 188 - 754 Nlm @ 6 bar Dimension 62 x 31 x 63 mm Weight 230 gr HD 544 Series Coil 2 - 2,5 - 3 Ohms Flow 100 - 160 Nlm @ 1 bar Dimension 100 x 31 x 56 mm Weight 470 gr HD...
Open the catalog to page 5
FREQUENCY. The maximum frequency reached by Matrix injectors express the top-notch performance levels and the wide range of applications that this technology has to offer. This means extreme reliability, combined with new and innovative application possibilities in the gas injection industry that until today were unthinkable of. The graph illustrates the pressure wave in the outlet fitting when associated to a 200 Hz electronic control frequency. REPEATABILITY AND PRECISION. The graph also shows the high level of precision and of repeatability guaranteed by Matrix injectors. Fluctuation of...
Open the catalog to page 6
MATRIX S.p.A. - Automotive Division - CNG & LPG Components - Rev.00 CNG and LPG FILTERS XF 301 Series Filtration degree 10 microns Flow 800 - 1200 Nlm @ 2 bar Diameter dimension 66 x 88 mm Weight 187 gr XF 301 Cartridges Filtration degree 10 microns Diameter dimension 66 x 88 mm Weight 46 gr XF 103 Series Filtration degree 80 microns Flow up to 800 Nlm @ 2 bar Diameter dimension 45 x 70 mm Weight 140 gr TEMPERATURE and PRESSURE SENSORS
Open the catalog to page 7
MATRIX S.p.A. - Automotive Division - CNG & LPG Components - Rev.00 MATRIX S.p.A. - Automotive Division - Corso Vercelli n. 330, 10015 Ivrea (To) Italy Te l +39 0125 615442 - Fax: +39 0125 615377 - matrix@matrix.to.it - www. matrix. to. it THE ULTIMATE TECHNOLOGY FOR O.E.M. APPLICATIONS
