TE-2250 External Thread Grinder

Product catalog summary

Overview: The document provides detailed specifications and features of the Matrix TE-2250E External Thread Grinder, a high-precision machine designed for grinding applications.

Standard Features: The machine includes a Siemens CNC Control System, Direct Drive Wheel Head Spindle, Chiller System, Automatic Wheel Balancing, and an Air Conditioned ECC. It also features Matrix ProfileMate Software, Installation & Commissioning, Work Head Mounted Dresser, and a Coolant Filtration System.

Applications: The machine is suitable for applications requiring a capacity of 2.25m, offering turnkey solutions, easy setup and operation, custom thread macros, auto load options, and Industry 4.0 compatibility.

Machine Capacity: The component diameter ranges from 10mm to 350mm, with a grinding diameter and length of up to 2200mm, depending on the component. The lead range is 0 - 300 mm.

CNC Control: The machine uses a Siemens 840 DSL CNC type with Sinumerik Operate and Matrix Interface, supported by a Sinamics S120 digital servo system.

Axis Specifications:

X Axis: Slide travel of 360 mm, traverse speed of 0 - 5 M/Min, with a dual position feedback system.
Z Axis: Slide travel of 2400 mm, traverse speed of 0 - 5 M/Min, with a dual position feedback system.
C Axis: Torque of 154 Nm, traverse speed of 0.4 - 120 RPM, with a high precision feedback system.

Wheel Head: The grinding spindle power is 8.8 Kw at 2000 RPM, with a programmable speed of 500 - 2500 RPM. It includes a built-in dynamic balancing system and standard wheel sizes of 13mm or 25mm. The helix angle is programmable +/- 45°.

Dressing System: The work head mounted dresser is fixed, with an adjustable option. Dresser speed ranges from 0 - 6000 RPM, with programmable feed rates and media options including disk, roll, or single point diamond.

Coolant System: The system has a capacity of 650 liters, featuring temperature control, separator, and centrifuge.

Machine Characteristics: The approximate gross machine weight is 13,000 Kg, with a floor area of 8.2 m x 4.2 m, including the coolant system.

Note: Specifications are subject to change without notification.

Catalog excerpts

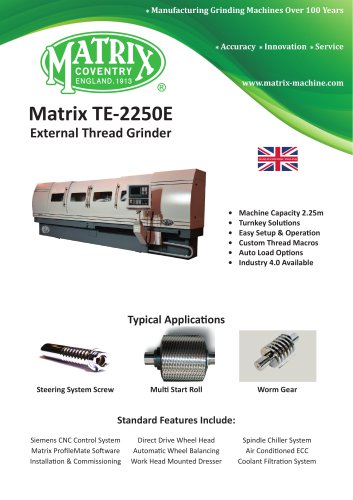

* Manufacturing Grinding Machines Over 100 Years * Accuracy * Innovation * Service Matrix TE-2250EExternal Thread Grinder • Machine Capacity 2.25m • Turnkey Solutions • Easy Setup & Operation • Custom Thread Macros • Auto Load Options Typical Applications Multi Start Roll Standard Features Include: Siemens CNC Control System Matrix ProfileMate Software Installation & Commissioning Direct Drive Wheel Head Automatic Wheel Balancing Work Head Mounted Dresser Spindle Chiller System Air Conditioned ECC Coolant Filtration System

Open the catalog to page 1

Machine Capacity Note: Specifications are subject to change without notification Matrix Machine Tool (Coventry) LimitedMatrix House, Coventry Business Park, Coventry, CV5 6UB ENGLAND ®+44 (0) 2476 71 8886 i+44 (0) 2476 67 8899 H [email protected]
