TE-0560

Product catalog summary

Overview: The document provides detailed specifications and features of the Matrix TE-0560 External Thread Grinder, a product of Matrix Machine Tool (Coventry) Limited, known for over 100 years of innovation in manufacturing grinding machines.

Standard Features: The machine includes a Siemens CNC Control System, direct drive wheel head spindle, chiller system, automatic wheel balancing, air-conditioned ECC, installation and commissioning, work head mounted dresser, and coolant filtration system.

Applications: The machine is suitable for composite base applications, offers a compact design, turnkey solutions, easy setup and operation, custom thread macros, auto load options, and Industry 4.0 compatibility.

Machine Capacity:

Component Diameter: 5mm - 150mm
Grinding Diameter: 5mm - 100mm (component dependent)
Length of Grinding: 500mm (component dependent)
Lead Range: 0 - 300mm

CNC Control: The machine uses a Siemens 840 DSL CNC type with Sinumerik Operate and Matrix Interface, and a Sinamics S120 digital servo system.

Axis Specifications:

X Axis (Diameter): Slide travel of 290mm, traverse speed of 0 - 15 M/Min, with dual position feedback system.
Z Axis (Length): Slide travel of 540mm, traverse speed of 0 - 15 M/Min, with dual position feedback system.
C Axis (Work Head): Torque of 46Nm, traverse speed of 0.4 - 120 RPM, with dual position feedback system.

Wheel Head: The grinding spindle power is 8.8 Kw at 2000 RPM, with a programmable speed of 500 - 2500 RPM and a built-in dynamic balancing system. Standard wheel sizes are 13mm or 25mm, with a programmable helix angle of +/- 45°.

Dressing System: Features a work head mounted adjustable angle, dresser speed of 0 - 6000 RPM, programmable feed rate, and media options including disk, roll, or single point diamond.

Coolant System: The system has a capacity of 650 liters, with features like temperature control, separator, and centrifuge.

Machine Characteristics: The machine has an approximate gross weight of 8500 Kg and a floor area of 3.4 m x 3.8 m, including the coolant system.

Note: Specifications are subject to change without notification.

Catalog excerpts

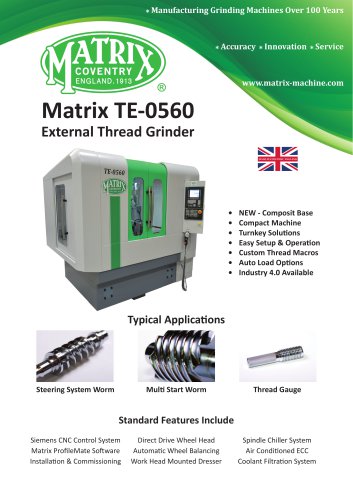

* Manufacturing Grinding Machines Over 100 Years * Accuracy * Innovation * Service Matrix TE-0560 External Thread Grinder NEW - Composit Base Compact Machine Turnkey SoluƟons Easy Setup & OperaƟon Custom Thread Macros Auto Load OpƟons Industry 4.0 Available Typical ApplicaƟons Steering System Worm MulƟ Start Worm Thread Gauge Standard Features Include Siemens CNC Control System Matrix ProfileMate SoŌware InstallaƟon & Commissioning Direct Drive Wheel Head AutomaƟc Wheel Balancing Work Head Mounted Dresser Spindle Chiller System Air CondiƟoned ECC Cool

Open the catalog to page 1

Machine Capacity Note: Specifications are subject to change without notification Matrix Machine Tool (Coventry) LimitedMatrix House, Coventry Business Park, Coventry, CV5 6UB ENGLAND ®+44 (0) 2476 71 8886 i+44 (0) 2476 67 8899 H [email protected]
