GVC-0500 CNC Generating Gear Grinding Machine

Product catalog summary

Overview: The GVC-0500 is a multi-function gear grinding machine designed for improved flexibility and precision. It supports various grinding methods, including generating grinding, profile grinding, and internal profile grinding.

Main Specifications:

Workpiece outside diameter: Ø 50~500mm
Max. grinding stroke: 500mm
Work area over table: 300~800mm
Distance between center above table: 442~1042mm
Module range: 0.5~14 for profile grinding, 0.5~8 for generating grinding
Helix angle: ±45°
Teeth range: 9~998
Max. tooth depth: 31.5mm for profile grinding, 18mm for generating grinding

Grinding Wheel Specifications:

Diameter of form wheel: Ø 221~400mm
Diameter of worm wheel: Ø 221~350mm
Thickness of form wheel: Max. 50mm
Thickness of worm wheel: Max. 160mm
Drive power of grinding spindle: 37kW
Max. rpm of grinding spindle: 6000rpm

Table Specifications:

Table diameter: Ø 400mm
Max. table load: 500kg
Table hole dimensions: 150 x 500mm
Max. table rotation speed: 1000rpm

Dimension & Weight:

Space Requirement: L7220 x W4351 x H2960mm
Weight of basic machine: 18000 kg

Additional Information: Specifications are subject to change without notification. The machine is manufactured by Matrix Machine Tool (Coventry) Limited, located in Coventry, United Kingdom.

Catalog excerpts

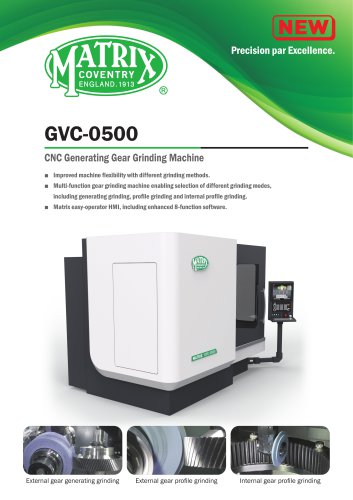

GVC-0500 CNC Generating Gear Grinding Machine-1

GVC-0500 CNC Generating Gear Grinding Machine ■ Improved machine flexibility with different grinding methods. ■ Multi-function gear grinding machine enabling selection of different grinding modes, including generating grinding, profile grinding and internal profile grinding. ■ Matrix easy-operator HMI, including enhanced 8-function software. External gear generating grinding External gear profile grinding Internal gear profile grind

Open the catalog to page 1

GVC-0500 CNC Generating Gear Grinding Machine-2

GVC-0500CNC Generating Gear Grinding MachineGVC-0500 Workpiece outside diameter Work area over table (Min. ~ Max.) Distance between center above table (Min. ~ Max.) MAIN SPECIFICATIONS Module Helix angle Teeth range Max. tooth depth GRINDING WHEEL SPECIFICATIONS Diameter of form wheel / Diameter of worm wheel (Min. ~ Max.) Thickness of form wheel / Thickness of worm wheel (Max.) Drive power of grinding spindle TABLE SPECIFICATIONS Table diameter Max. table load Table hole (diameter * depth) Table of rotation speed (Max.) DIMENSION & WEIGHT Space Requirement L7220 x W4351 x H2960mm Weight of basic...

Open the catalog to page 2
