GV-8040 CNC Vertical Gear Form Grinding Machine

Product catalog summary

Introduction
Matrix Machine Tool (Coventry) Ltd., established in 1913, specializes in manufacturing grinding machines, including the newly introduced Vertical Gear Form Grinding Machine model GV-8040. This machine is designed for producing large gears and grinding hob cutters, featuring a FANUC control system and high-speed grinding spindle.

Specifications
Gear Specifications: The GV-8040 can handle a maximum workpiece outside diameter of 800mm, with a tooth range of 9 to 999 and a module range of M2.0 to M20. It supports a helix angle range of ±45°.
Hob Cutter Specifications: It accommodates a minimum root diameter of 50mm and a maximum workpiece outside diameter of 350mm, with a flute range of 1 to 99 and a helix angle range of ±40°.

Mechanical Specifications
The machine offers a maximum grinding slide travel of 400mm, a workpiece slide travel of 400mm, and a table diameter of 740mm. It can support a maximum table load of 2500 kg.

Grinding Wheel Specifications
The grinding wheel can have a maximum diameter of 400mm and a thickness of 70mm, with a spindle speed of up to 4000 rpm and a drive power of 15kW.

Electric System
The machine operates on a 380V, 3-phase power supply, requiring 80 Amp current and supporting an ambient temperature range of 10°C to 40°C.

CNC Controller
The GV-8040 is equipped with a FANUC 31i CNC controller.

Dimensions & Weight
The machine requires a space of L 6255 x W 5200 x H 3405mm and weighs 17000kg.

Recommendations
For optimal performance, it is advised to maintain the machine in a controlled temperature environment between 20°C and 26°C to achieve gear Grade 4 to DIN 3962.

Catalog excerpts

GV-8040 CNC Vertical Gear Form Grinding Machine-1

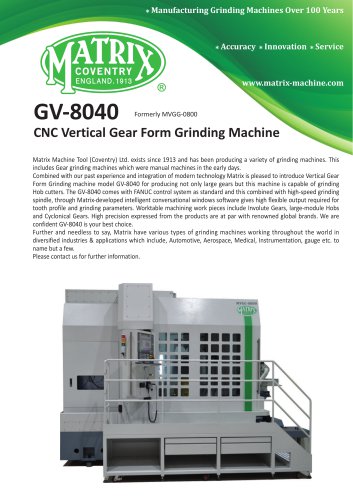

* Manufacturing Grinding Machines Over 100 Years * Accuracy * Innovation * Service CNC Vertical Gear Form Grinding Machine Matrix Machine Tool (Coventry) Ltd. exists since 1913 and has been producing a variety of grinding machines. This includes Gear grinding machines which were manual machines in the early days. Combined with our past experience and integration of modern technology Matrix is pleased to introduce Vertical Gear Form Grinding machine model GV-8040 for producing not only large gears but this machine is capable of grinding Hob cutters. The GV-8040 comes with FANUC control system as standard and this combined with high-speed grinding spindle, through Matrix-developed intelligent conversational windows software gives high flexible output required for tooth profile and grinding parameters. Worktable machining work pieces include Involute Gears, large-module Hobs and Cyclonical Gears. High precision expressed from the products are at par with renowned global brands. We are confident GV-8040 is your best choice. Further and needless to say, Matrix have various types of grinding machines working throughout the world in diversified industries & applications which include, Automotive, Aerospace, Medical, Instrumentation, gauge etc. to name but a few. Please contact us for further information.

Open the catalog to page 1

GV-8040 CNC Vertical Gear Form Grinding Machine-2

CNC VerƟcal Type Gear Form Grinding Machine Matrix Machine Tool (Coventry) Limited Matrix House, Coventry Business Park, Coventry, CV5 6UB ENGLAND +44 (0) 2476 71 8886 +44 (0) 2476 67 8899 [email protected] GV-8040 MAIN SPECIFICATIONS Gear Max. workpiece outside diameter 800mm 31.4” Tooth range 9~999 Min. workpiece root diameter 50mm 1.9” Module M2.0~M20 DP12.7 ~DP 1.27 Max. tooth depth 45mm 1.7” Helix angle range ±45° Hob cutter Min. root diameter/Max. workpiece outside diameter 50mm~350mm 1.9”~13.7” Max. flute depth 55mm 2.1” Flute range 1~99 Flute helix angle range ±40° MECHANICAL SPECIFICATIONS...
