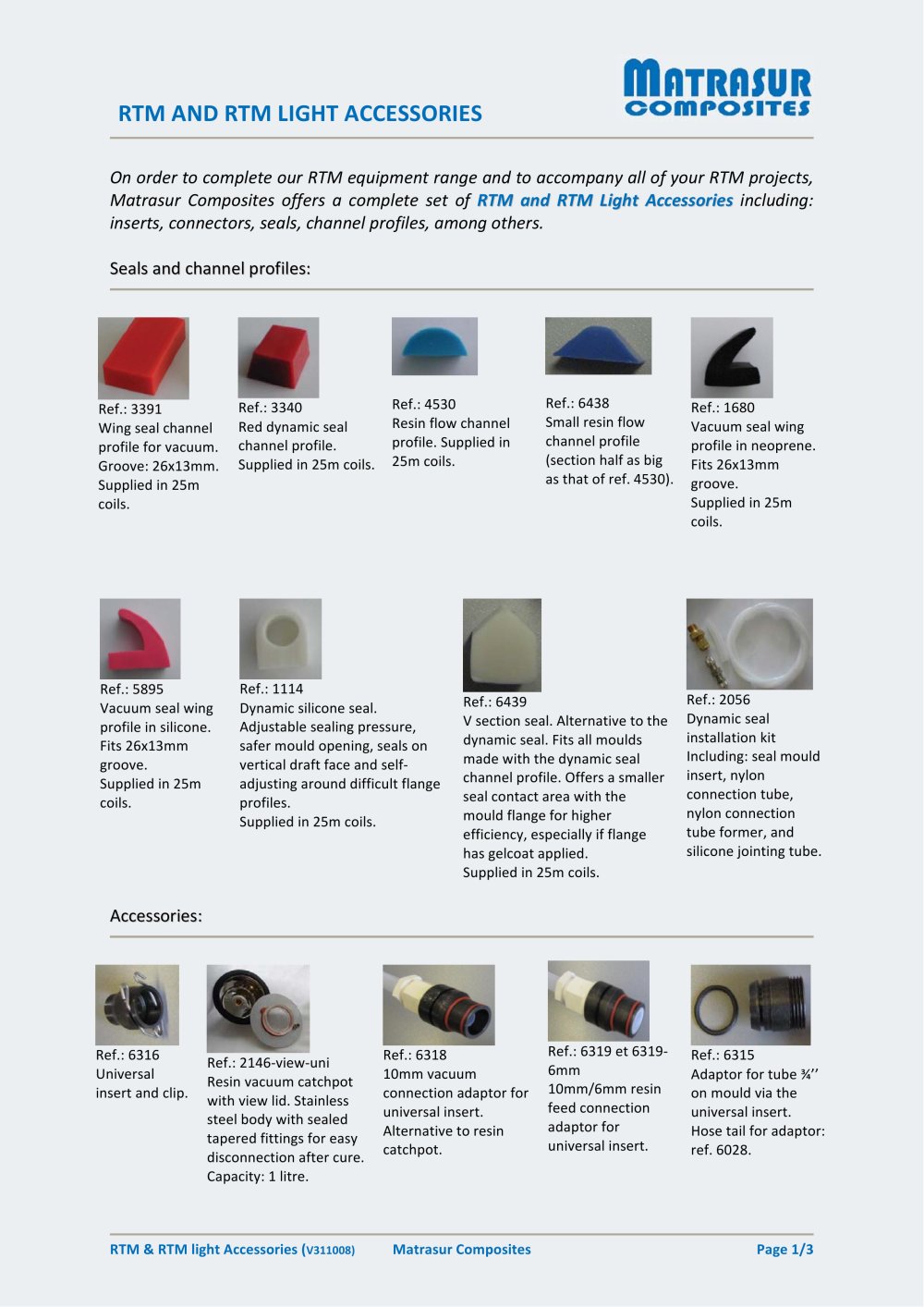

RTM accessories catalogue

Product catalog summary

Overview: Matrasur Composites provides a comprehensive range of RTM (Resin Transfer Molding) and RTM Light Accessories designed to support various RTM projects. The accessories include seals, channel profiles, inserts, connectors, and more.

Seals and Channel Profiles:

Ref. 3391: Wing seal channel profile for vacuum, groove size 26x13mm, supplied in 25m coils.
Ref. 3340: Red dynamic seal channel profile, supplied in 25m coils.
Ref. 4530: Resin flow channel profile, supplied in 25m coils.
Ref. 6438: Smaller resin flow channel profile, half the size of Ref. 4530.
Ref. 1680 & 5895: Vacuum seal wing profiles in neoprene and silicone, fitting 26x13mm grooves, supplied in 25m coils.
Ref. 1114: Dynamic silicone seal with adjustable sealing pressure, supplied in 25m coils.
Ref. 6439: V section seal, an alternative to the dynamic seal, supplied in 25m coils.
Ref. 2056: Dynamic seal installation kit including various components.

Accessories:

Ref. 6316: Universal insert and clip.
Ref. 2146-view-uni: Resin vacuum catchpot with view lid, 1-litre capacity.
Ref. 6318: 10mm vacuum connection adaptor for universal insert.
Ref. 6319 & 6319-6mm: 10mm/6mm resin feed connection adaptor for universal insert.
Ref. 6315: Adaptor for tube ¾’’ on mould via the universal insert.

Options:

Ref. 5797: Mould pressure sensor type PV Sensor, used with PV Sensor kit.
Ref. 5855: Injection head type Turbo Autosprue with nylon tube for resin.
Ref. 3228: Venturi vacuum pump for mould manufacturing.
Ref. 3370: Latch clamp for mould edge closure.
Ref. TBC-RW/AH: Cone locator and silicone form for mould building.

Consumables:

Ref. 3202: Green silicone mushroom seal, fits 10x5mm groove, supplied in 25m coils.
Ref. 0002: Mushroom seal channel profile, supplied in 25m coils.
Ref. 6328: Blank plug for universal insert.
Ref. 0580-Uni: New model of pneumatic ejector head with control.
Ref. 0008-BOX: Calibration wax available in sheets, supplied in boxes.
Ref. NONP-0144: Yellow modelling wax, supplied in blocks.
Ref. 1082: Tooling tissue (1 layer).
Ref. 0214: 10mm nylon pipe.
Ref. 6335: Roving tape 25mm and 50mm.

Contact Information: For more information or to order, contact Fabien Valck at Matrasur Composites After-Sales Department via phone or email.
