MARTIN® VIBROLLER™ Pneumatic Roller Vibrators

MARTIN® VIBROLLER™ Pneumatic Roller Vibrators

Product catalog summary

Overview: The document is an operator manual for MARTIN VIBROLLER® and VIBROLATOR® vibrators, designed to enhance bulk material handling by making it cleaner, safer, and more productive. It includes installation instructions, maintenance guidelines, and performance specifications.

Installation Instructions:

Ensure energy sources are locked out/tagged out before installation, following ANSI z244.1-1982 and 29 CFR Part 1910 standards.
Clean the mounting surface and vibrator before installation.
Position the vibrator in the lower 1/4 to 1/3 of the structure slope length. If a second vibrator is needed, mount it 180 degrees from the first and halfway up the slope.
Install a reinforcing beam if necessary, using skip welding techniques to avoid damage.
Mount the vibrator using new cap screws, compression washers, and lock nuts, adhering to specified bolt sizes and torque requirements.
Connect a lubricated air line to the vibrator, ensuring proper connection to the ball valve, FRL kit, control box, and solenoid valve.

Weekly Maintenance:

Lock out/tag out energy sources before maintenance.
Check and tighten fasteners as necessary.

Performance Specifications:

Detailed tables provide mounting bolt sizes, torque requirements, and recommended pipe sizes for compressed air flow.
Performance charts list model numbers, part numbers, unbalance, force, air consumption, and decibel levels for various vibrator models.

Safety Warnings:

Ensure all electrical wiring is done by a qualified electrician in accordance with the National Electrical Code Article 430.
Follow all safety guidelines to prevent damage to equipment and ensure safe operation.

Catalog excerpts

MARTIN® VIBROLLER™ Pneumatic Roller Vibrators-1

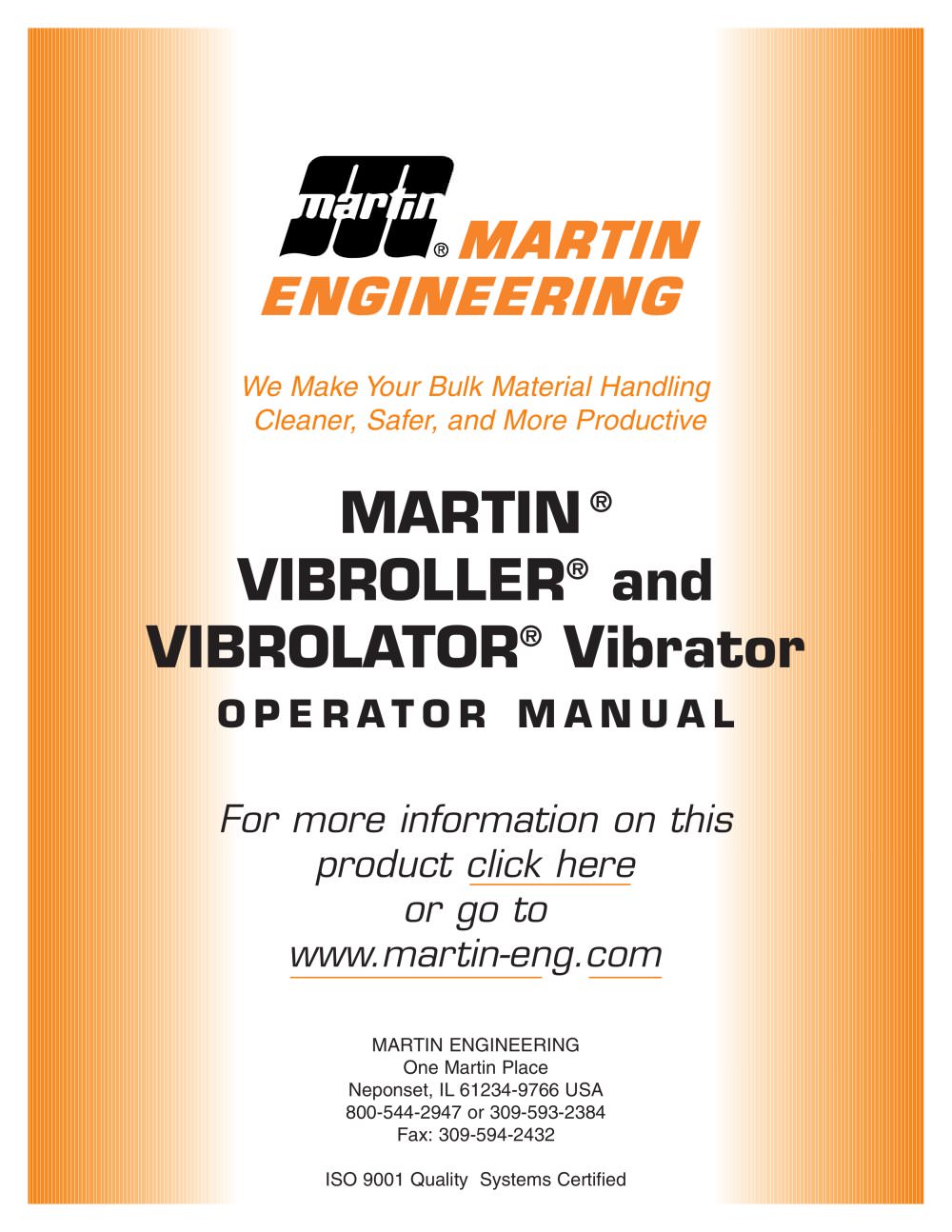

We Make Your Bulk Material HandlingCleaner, Safer, and More Productive > MARTIN ENGINEERINGOne Martin PlaceNeponset, IL61234-9766 USA800-544-2947 or 309-593-2384Fax: 309-594-2432ISO 9001 Quality Systems Certified size="-1">
