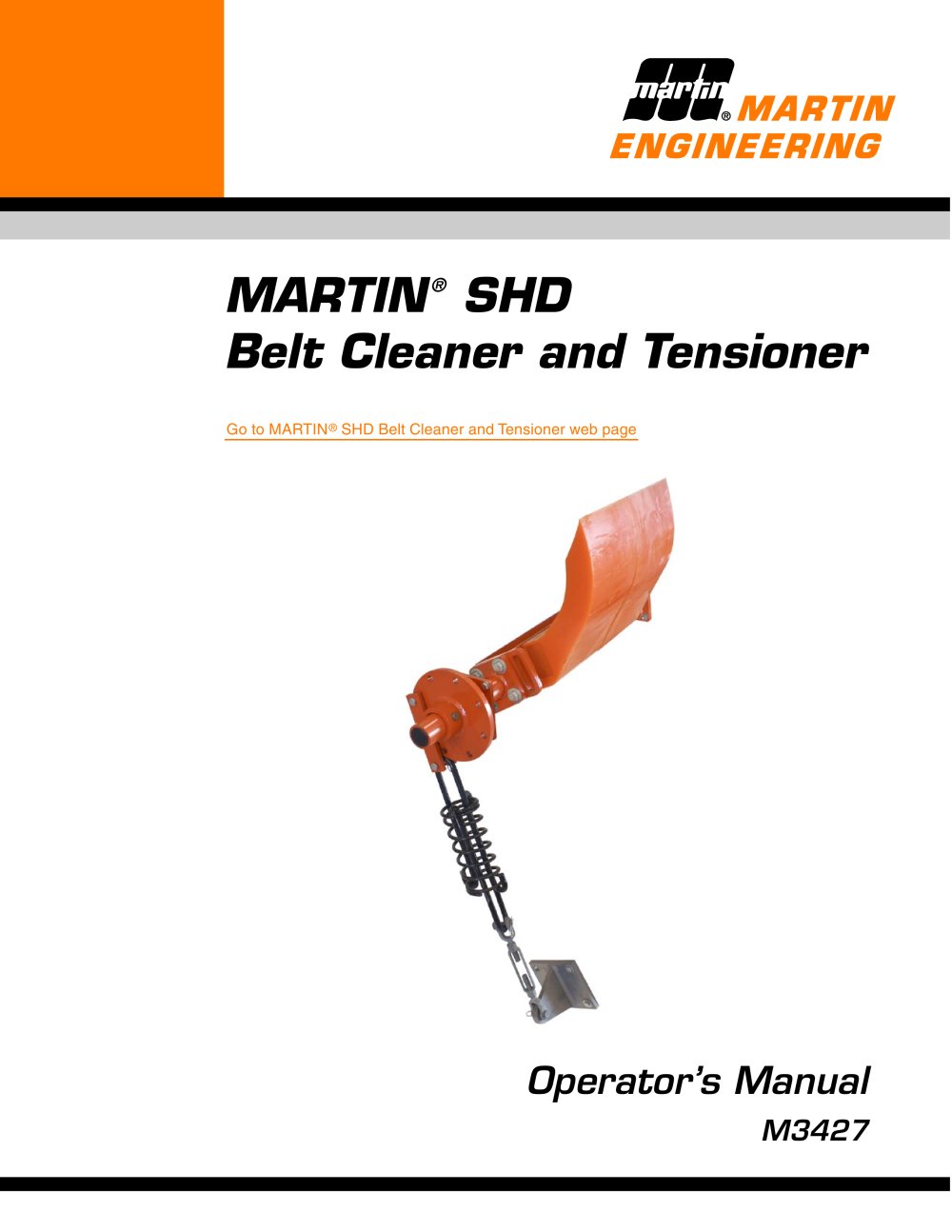

MARTIN > SHDBelt Cleaner and Tensioner > Go to MARTIN ή SHD Belt Cleaner and Tensioner web page Operators Manual M3427 size="-2">

MARTIN ENGINEERING HEREBY DISCLAIMS ANY LIABILITY FOR: DAMAGE DUE TO CONTAMINATION OF THE MATERIAL; USERS FAILURE TO INSPECT, MAINTAIN AND TAKE REASONABLE CARE OF THE EQUIPMENT; INJURIES OR DAMAGE RESULTING FROM USE OR APPLICATION OF THIS PRODUCT CONTRARY TO INSTRUCTIONS AND SPECIFICATIONS CONTAINED HEREIN. MARTIN ENGINEERINGҒS LIABILITY SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF EQUIPMENT SHOWN TO BE DEFECTIVE.Observe all safety rules given herein along with owner and Government standards and regulations. Know and understand lockout/tagout procedures as defined by American National Standards...

List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iiList of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iiIntroduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 > General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1Safety . . . . . . . . . . . . . ....

1MARTIN > SHD Belt Cleaner Mainframe Assembly, P/N SH1X-XXXXXXXXXX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .202MARTIN > ή SHD Spring Link Tensioner Assembly, P/N 35978-XXXXMX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 > List of Figures/Tables IMARTIN > SHD Tensioning Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13IIMARTIN > ή SHD Belt Cleaner Assembly Dimensions, Part Numbers,and Quantities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22IIIMARTIN...

Assy/Bladepart no. suffixBladecolorBlade typesDurometer(Shore A)TemperatureC (аF)*Max. belt speedm/s (fpm) Introduction NoneOrangeStandard90-29 to 71(-20 to 160)10 (1970)BRBrownChemical resistant95-40 to 71(-40 to 160)10 (1970) See Appendix B for typical installation dimensions. > Do not touch or go near the conveyor belt or conveyor accessories when the belt is running. Your body or clothing can get caught and you can be pulled into the conveyor, resulting in severe injury or death. ! > Before installing, servicing, or adjusting the belt cleaner, turn off and lock out/tag out all energy sources...

!Mainframe with blades is very heavy and requires a hoist to lift (see weight chart). Attempting to lift the belt cleaner without a hoist could result in serious injury. Remove all tools from the installation area and conveyor belt before turning on the conveyor. Failure to do so can cause serious injury to personnel or damage to the belt and conveyor.Moving spring can pinch and crush. Keep hands away from spring. > Use only MARTIN > SHD Mainframe and Tensioners with MARTIN > ή SHD Blades. Other mainframes and tensioners may not be strong enough and could break, causing damage to the conveyor...

The delivery service is responsible for damage occurring in transit. Martin Engineering CANNOT enter claims for damages. Contact your transportation agent for more information. 1.Inspect shipping container for damage. Report damage to delivery service immediately and fill out delivery services claim form. Keep any damaged goods subject to examination.2.Remove belt cleaner assembly from shipping container. 3.If anything is missing contact Martin Engineering or a representative. > Before Installation !Before installing equipment, turn off and lock out/ tag out all energy sources to the conveyor...

Martin Engineering M3427-09/08 4 > MARTIN SHD Belt Cleaner and Tensioner size="-2">

MARTIN > SHD Belt Cleaner and Tensioner >

MARTIN > SHD Belt Cleaner and Tensioner >

MARTIN > SHD Belt Cleaner and Tensioner >

MARTIN > SHD Belt Cleaner and Tensioner >

MARTIN > SHD Belt Cleaner and Tensioner >

MARTIN > SHD Belt Cleaner and Tensioner >

MARTIN > SHD Belt Cleaner and Tensioner >

MARTIN > ֮ SHD Belt Cleaner and Tensioner >

Final Spring Length (from Table I) > Installation

MARTIN > SHD Belt Cleaner and Tensioner >

After Installation 1.Thoroughly wipe chute wall clean above tensioner.2.Place Conveyor Products Warning Label (P/N 23395) on outside chute wall visible to belt cleaner operator. !Failure to remove tools from installation area and conveyor belt before turning on energy source can cause serious injury to personnel and damage to belt. > Do not touch or go near conveyor belt or conveyor accessories when conveyor belt is running. Body or clothing can get caught and pull body into conveyor belt, causing severe injury or death. 3.Turn on conveyor belt for 1 hour, then turn off. !Before installing, servicing,...

Weekly Maintenance MARTIN > SHD Belt Cleaner and Tensioner >

Weekly Maintenance MARTIN > ׮ SHD Belt Cleaner and Tensioner >

SymptomCorrective Action Insufficient cleaning and carryback.Tension of cleaner on belt is set too low or too high. Increase or decrease tensioner setting.ՕBlades are worn. Check blades and replace if necessary. > Troubleshooting Tension is not sufficient or is set too high. Correct tension as necessary. If this does not correct problem, blade urethane may not match application. Contact Martin Engineering or representative.High blade wear rate.Tension of cleaner on belt is set too high. Reduce tensioner setting.Unusual wear or damage to blades.Check belt splice(s) and repair as necessary.Bent...

MARTIN > ή SHD Belt Cleaner Assembly : P/N SH1X-XXXXXXXXXX.See Figure 1. > Part Numbers MARTIN > ή Spring Link Tensioner Assembly : P/N 35978. See Figure 2. > With standard door, up to 155 F (68а C): 9 x 12 in. (229 x 305 mm): P/N 27658-0912.12 x 14 in. (305 x 356 mm): P/N 27658-1214.12 x 18 in. (305 x 457 mm): P/N 27658-1218.18 x 24 in. (457 x 610 mm): P/N 27658-1824.24 x 24 in. (610 x 610 mm): P/N 27658-2424. With steel door: 9 x 12 in. (229 x 305 mm): P/N 34955-0912.12 x 18 in. (305 x 457 mm): P/N 34955-1218.18 x 24 in. (457 x 610 mm): P/N 34955-1824.24 x 24 in. (610 x 610 mm): P/N 34955-2424....
