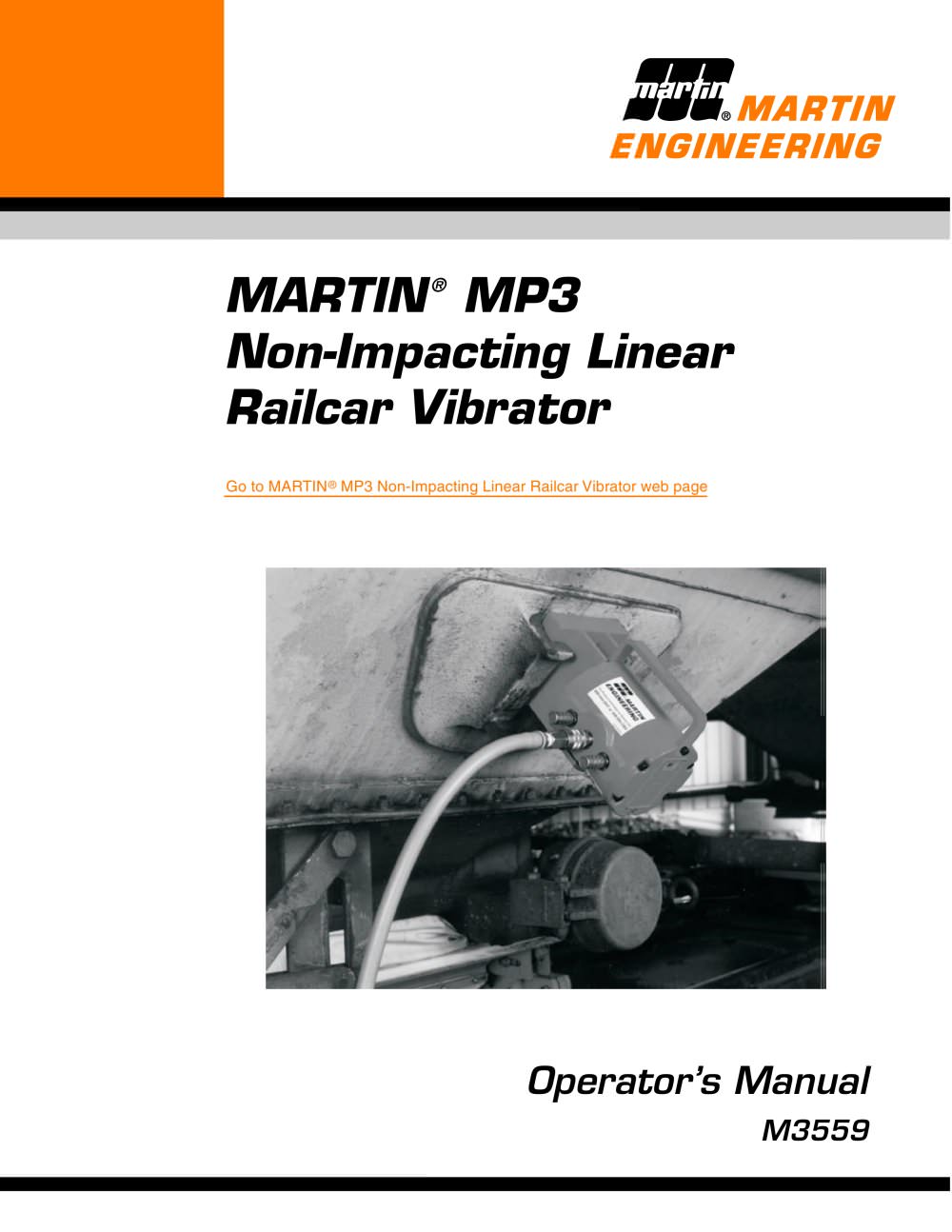

MARTIN > MP3Non-Impacting Linear Railcar Vibrator > Go to MARTIN ή MP3 Non-Impacting Linear Railcar Vibrator web page Operators Manual M3559 size="-2">

MARTIN ENGINEERING HEREBY DISCLAIMS ANY LIABILITY FOR: DAMAGE DUE TO CONTAMINATION OF THE MATERIAL; USERS FAILURE TO INSPECT, MAINTAIN AND TAKE REASONABLE CARE OF THE EQUIPMENT; INJURIES OR DAMAGE RESULTING FROM USE OR APPLICATION OF THIS PRODUCT CONTRARY TO INSTRUCTIONS AND SPECIFICATIONS CONTAINED HEREIN. MARTIN ENGINEERINGҒS LIABILITY SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF EQUIPMENT SHOWN TO BE DEFECTIVE.Observe all safety rules given herein along with owner and Government standards and regulations. Know and understand lockout/tagout procedures as defined by American National Standards...

Table of Contents Martin Engineering M3559-11/08 > MARTIN > MP3 Non-Impacting Linear Railcar Vibrator >

List of Figures Martin Engineering M3559-11/08 > MARTIN > ή MP3 Non-Impacting Linear Railcar Vibrator >

MARTIN > Piston Railcar Vibrators provide force to activate the free flow of sticky, coarse, high-moisture materials in railcars. The vibrators require no maintenance when used with filtered and lubricated air.Vibrators are quiet, lightweight, and are used on the sloped portion of railcars.This manual covers installing and operating the MARTIN > Introduction ή MP3 Non-Impacting Linear Railcar Vibrators. For assistance installing the vibrators or for other applications, call Martin Engineering or a representative. > The following documents are referenced in this manual:American National Standards...

Before Installation Martin Engineering M3559-11/08 > MARTIN > Ү MP3 Non-Impacting Linear Railcar Vibrator >

Read entire section before beginning work. > Installation ! > If installation instructions are not followed, structure and vibrator can be damaged. Abusing or handling vibrator carelessly will accelerate wear and shorten its life. To install the vibrator, follow the procedures corresponding to the following steps:1.Determine where to locate the vibrator on the structure. > Piston vibrators produce linear vibration best applied to wet, sticky material adhering to a railcar wall. The object is to move the wall back and forth to dislodge the material. 2.Connect lubricated air lines to vibrator with...

IMPORTANT > Martin Engineering recommends thin grade air motor oil in vibrators. Installation IMPORTANT > It is strongly recommended to use size 5 micrometer filters due to the small tolerance between piston and bore. IMPORTANT > Air line and FRL kit need to be adequate for individual vibrator. IMPORTANT > Verify lubricator is working while unit is on. Lack of lubrication will terminate vibrator. !If vibrator is mounted more than 6 in. (152 mm) above ground, install cable securing vibrator to structure. Without cable, vibrator could fall and cause injury. WARNING NOTE > For instructions on mounting...

MARTIN > ή MP3 Non-Impacting Linear Railcar Vibrator >

After Installation MARTIN > ή MP3 Non-Impacting Linear Railcar Vibrator >

MARTIN > ֮ MP3 Non-Impacting Linear Railcar Vibrator >

If you are experiencing problems with the MARTIN > MP3 Linear Railcar Vibrator, see below. SymptomCorrective Action > Troubleshooting Vibrator not runningVerify air pressure.Vibrator needs full air pressure on start-up with ball valve operation.No air pressure. Make sure air is on and being supplied to vibrator.Check lubrication.Vibrator not performing full-speedMufflers dirty. Clean or replace mufflers.Check air pressure and air line. Air line and components must be proper volume for individual vibrator.Ensure that flexible tube is not bent.Make sure inside diameter of air pressure supply pipe...

This section provides product names and corresponding part numbers for MARTIN > MP3 Linear Railcar Vibrator and related equipment. Please reference part numbers when ordering parts. > Linear Railcar Vibrator Assembly: P/N 36889. > Part Numbers Female Wedge Bracket (LBF): P/N 12735 > NPT Filter-Regulator-Lubricator (FRL) Kit (1/2-inch): P/N 14760 Mufflers: P/N 36893 Gray Hose (1/2-inch): P/N 100330 > Air Motor Oil: P/N 14766 > Martin Engineering M3559-11/08 9 MARTIN ή MP3 Non-Impacting Linear Railcar Vibrator size="-2">

Part Numbers MARTIN > MP3 Non-Impacting Linear Railcar Vibrator >

EXHAUSTEXHAUSTLUBRICATED AIRINLET MARTIN > ή MP3 Non-Impacting Linear Railcar Vibrator >

Part Numbers MARTIN > MP3 Non-Impacting Linear Railcar Vibrator >
