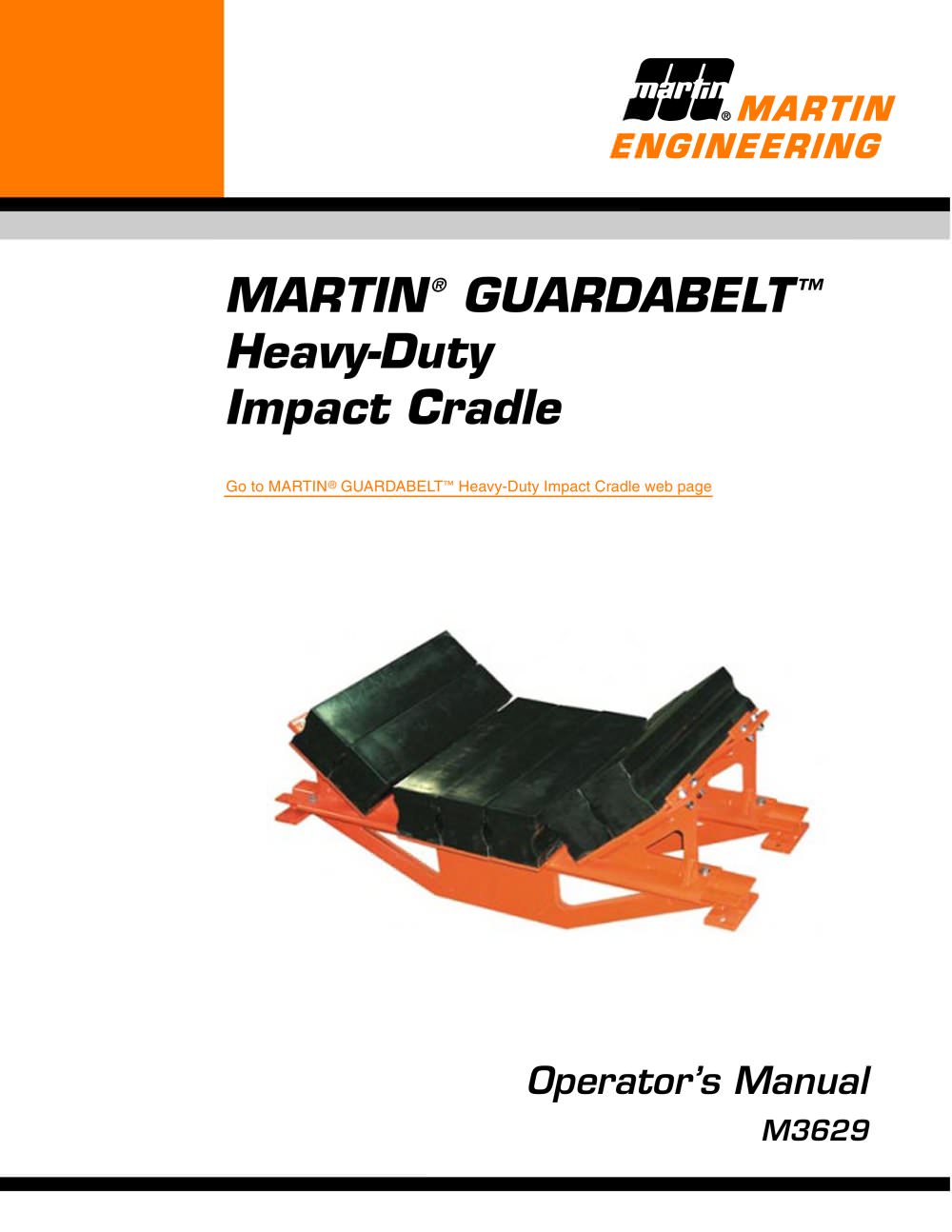

MARTIN® GUARDABELT™ Heavy-Duty Impact Cradle
28Pages

Go to MARTIN > GUARDABELT > Ι Heavy-Duty Impact Cradle web page >

MARTIN ENGINEERING HEREBY DISCLAIMS ANY LIABILITY FOR: DAMAGE DUE TO CONTAMINATION OF THE MATERIAL; USERS FAILURE TO INSPECT, MAINTAIN AND TAKE REASONABLE CARE OF THE EQUIPMENT; INJURIES OR DAMAGE RESULTING FROM USE OR APPLICATION OF THIS PRODUCT CONTRARY TO INSTRUCTIONS AND SPECIFICATIONS CONTAINED HEREIN. MARTIN ENGINEERINGҒS LIABILITY SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF EQUIPMENT SHOWN TO BE DEFECTIVE.Observe all safety rules given herein along with owner and Government standards and regulations. Know and understand lockout/tagout procedures as defined by American National...

Table of Contents Martin Engineering M3629-07/08 > MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle >

1Measuring for MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle. . . . . . . . . . .32MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle Assembly,P/N 37357-XXXXXXX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173Conveyor Products Warning Label, P/N 23395 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 > List of Figures & Tables IMARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle Materials and Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1IIPart Numbers and Quantities,...

The MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle is a layered, shock-absorbing conveyor belt transfer point product engineered for use in bulk solids handling industries. > Introduction The following documents are referenced in this manual:American National Standards Institute (ANSI) z244.1-1982, American National Standard for Personnel Protection - Lockout/Tagout of Energy Sources - Minimum Safety Requirements , American National Standards Institute, Inc., 1430 Broadway, New York, NY 10018.ՕFederal Register, Volume 54, Number 169, Part IV, 29 CFR Part 1910, Control of Hazardous Energy...

1.Inspect shipping container for damage. Report damage to delivery service immediately and fill out delivery services claim form. Keep any damaged goods subject to examination.2.Remove impact cradle from shipping container. Equipment in container should include the following:ҕMARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle AssemblyTwo Conveyor Products Warning Labels, P/N 233953.If anything is missing or damaged, contact Martin Engineering or a representative.4.Make sure belt is centered on conveyor. 5.Access to both sides of the conveyor is required. > Before Installation !Before installing...

Read entire section before beginning work. > Installation 1.00 (25).375 (9) 1.00 (25).75 (19) > 1.See Figure 1. Make sure chute walls and/or wear liners are correct distance above belt as shown. If necessary, modify chute walls and/or wear liners. > Martin Engineering M3629-07/08 3 MARTIN GUARDABELTΙ Heavy-Duty Impact Cradle size="-3">

MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle >

MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle >

MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle >

MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle >

MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle >

MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle >

MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle >

MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle >

Read entire section before beginning work. 1.Thoroughly wipe outside chute walls clean above impact cradle on both sides of chute. Place a Conveyor Products Warning Label (P/N 23395) on each chute wall visible to belt operator. > After Installation !Failure to remove tools from installation area and conveyor belt before turning on energy source can cause serious injury to personnel and damage to belt. > 2.Remove all tools and fire retardant cover from installation area and conveyor belt. ! > Do not touch or go near conveyor belt or conveyor accessories when conveyor belt is running. Body or...

MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradle >

5.Inspect impact cradle for cracks or fatigue. Weld or strengthen structure as necessary.6.Wipe warning labels clean. If labels are not readable, contact Martin Engineering or a representative for replacements. !Failure to remove tools from maintenance area and conveyor belt before turning on energy source can cause serious injury to personnel and damage to belt. > Maintenance 7.Remove all tools from maintenance area. ! > Do not touch or go near conveyor belt or conveyor accessories when conveyor belt is running. Body or clothing can get caught and pull body into conveyor belt, causing...

If you are experiencing problems with impact cradle, see below: SymptomCorrective Action High impact bar wear rate.Impact cradle is installed too close to belt. Make sure impact cradle surface is 3/4 in. (19 mm) below troughed belt.Impact bars worn unevenly.Belt is unevenly loaded, wear liners are improperly installed, and/or impact bars are not parallel to belt travel. Inspect loading area and wear liners, and modify transfer point if necessary. > Troubleshooting/Installation Checklist If after taking corrective actions suggested under TroubleshootingӔ you are still experiencing problems,...

This section provides product names and corresponding part numbers for MARTIN > GUARDABELTΙ Heavy-Duty Impact Cradles. Please reference part numbers when ordering parts. > Part Numbers MARTIN > ή GUARDABELT Heavy-Duty Impact Cradle Assembly, P/N 37357-XXXXXXX > First XX indicates belt width in inches; second XX indicates belts trough angle; third XX indicates E6 or E7 class; last X indicates standard cradle (S) or wide-base cradle (W). > P/N WL-XXXXXXXXXXXX First XXXX indicates height of wear liner in inches; next XXXX indicates length of wear liner in inches; next XXX indicates thickness...

Part Numbers Scale 1/8 DӔFӔEӔ > Martin Engineering M3629-07/08 17 > MARTIN GUARDABELTΙ Heavy-Duty Impact Cradle size="-2">
