MARTIN® Flanged Electric Vibrators
34Pages

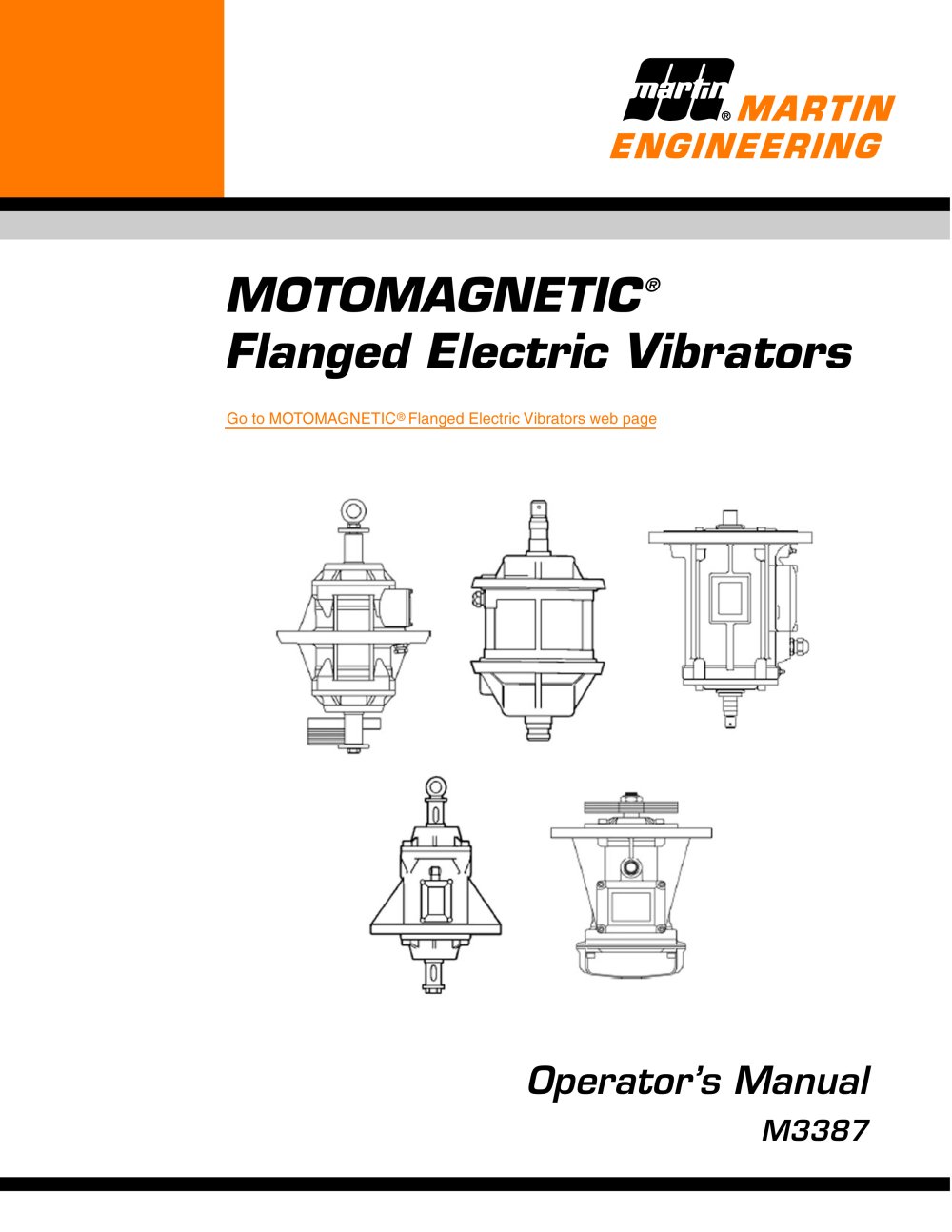

MOTOMAGNETIC > Flanged Electric Vibrators > Go to MOTOMAGNETIC ή Flanged Electric Vibrators web page Operators Manual M3387 size="-2">

MARTIN ENGINEERING HEREBY DISCLAIMS ANY LIABILITY FOR: DAMAGE DUE TO CONTAMINATION OF THE MATERIAL; USERS FAILURE TO INSPECT, MAINTAIN AND TAKE REASONABLE CARE OF THE EQUIPMENT; INJURIES OR DAMAGE RESULTING FROM USE OR APPLICATION OF THIS PRODUCT CONTRARY TO INSTRUCTIONS AND SPECIFICATIONS CONTAINED HEREIN. MARTIN ENGINEERINGҒS LIABILITY SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF EQUIPMENT SHOWN TO BE DEFECTIVE.Observe all safety rules given herein along with owner and Government standards and regulations. Know and understand lockout/tagout procedures as defined by American National...

List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iiList of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iiIntroduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 > General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1References . . . . . . . . . . ....

MOTOMAGNETIC > ή Flanged Electric Vibrators >

?Code of Federal Regulation (CFR) 29, Part 1910, Control of Hazardous Energy Source (Lockout/Tagout); Final Rule , Department of Labor, Occupational Safety and Health Administration (OSHA), 32nd Floor, Room 3244, 230 South Dearborn Street, Chicago, IL 60604.?CFR 29, Part 1910.15, Occupational Noise Exposure , Department of Labor, OSHA, 32nd Floor, Room 3244, 230 South Dearborn Street, Chicago, IL 60604. > Introduction All safety rules defined in the above documents and all owner/employer safety rules must be strictly followed when working on the vibrator. > Only metric hand tools are...

The delivery service is responsible for damage occurring in transit. Martin Engineering CANNOT enter claims for damages. Contact your transportation agent for more information. 1.Inspect shipping container for damage. Report damage to delivery service immediately and fill out delivery services claim form. Keep any damaged goods subject to examination.2.Remove MOTOMAGNETIC > Before Installation Ү Flanged Electric Vibrator from shipping container.3.If anything is missing, contact Martin Engineering or a representative. !Turn off and lock out/tag out all energy sources to equipment. > 4.Before...

Read entire section before beginning work. This manual provides instructions for installations onto steel equipment only. For other installations, call Martin Engineering or a representative. > Installation !If installation instructions are not followed, equipment or vibrator can be damaged. Abusing or handling vibrator carelessly will accelerate wear and shorten bearing life.Never weld equipment with vibrator mounted and wired. Welding may cause damage to motor windings and bearings.Use only new Grade 5 bolts and lock nuts to install vibrator. Old fasteners can break and cause damage to...

Model*Frame SizeEnglishMetricBolt Size(Gr 5)Dry Torque(ft-lb)Bolt SizeDry Torque(kgm) > Installation MTF18-470, MTF18-1300, MTF36-104010, 207/16 in. -14NC58M128MTF12-750, MTF18-1675309/16 in. -12NC94M1413MVB12-1000, MVB18-1000401/2 in. -13NC76M128MVB12-1510, MVB18-1510505/8 in. - 11NC137M1619MVB12-2500, MVB18-2500603/4 in. -10NC275M2038 MVB12-4500, MVB18-4500807/8 in. -9NC405M2256MVB12-7000, MVB18-7000907/8 in. -9NC430M2471*VB models have no mounting holes. >

!Wire vibrator in accordance with National Electrical Code Article 430. Have wiring installed by a qualified electrician only. > Installation 1.Find wiring diagram number for your vibrator on vibrator nameplate and locate wiring diagram in Figure 2 for MVB models, Figure 3 for VB models, or Figure 4 for MTF models. !Before running cord to vibrator, make sure cord voltage rating equals or exceeds the voltage at which you will be operating the vibrator. It must have a minimum temperature rating of 221F (105аC) and a minimum diameter as shown in Table III. If wire is not proper diameter, cord...

DIAGRAM 2A DIAGRAM 2C60 HZ Low VoltageHigh Voltage 3-phasepower supplyGroundGroundW2U2V2U1V1W1U1V1W1W2U2V2 > Installation Ground Ground 123456789 3-phasepower supply 3-phasepower supply460 V230 V123456789 3-phasepower supply > DIAGRAM 5A DIAGRAM 5B Low VoltageHigh Voltage3-phasepower supply 230 V 460 V W2U2V2U1V1W1W2U2V2 Thermistor U1V1W1 > 123456789 123456789 3-phasepower supplyTo controlmoduleThermistor60 HZ3-phasepower supply3-phasepower supply To controlmoduleThermistor > Ground To controlmoduleThermistor > Ground To controlmodule > Ground Ground Rotation in one direction Rotation in...

50 Hz 60 Hz > 220V380V 230V460V 123123 123123 Installation RedWhiteBlueBrownYellowBlack RedWhiteBlueBrownYellowBlack RedBlackBrown RedBlackBrown Low VoltageHigh VoltageBlueYellowWhite Low VoltageHigh VoltageBlueYellowWhite 115V, 60 Hz, Single Phase BLACKBLUEREDWHITE28UFCAPACITOR > 4.For MVB models with terminal blocks, install wire connector between the two flat washers. See Figure 5. WireconnectorFlatwashers > !Vibrator must be grounded using the power supply ground wire (or other if specified in the NEC). Failure to properly ground vibrator can cause severe injury or death. > 5.Connect...

!Thermistors are intended for motor winding protection. They do not replace overload protection. Always install overload protection. Failure to do so could result in severe injury or death. > 6.For Diagrams 5A and 5B, wire thermistor to control module in accordance with Figure 6. (Martin Engineering recommends using the control module shown in Figure 6, but other suitable control modules may be used.) > Installation 7.Reassemble wiring cover, o-ring, and rubber compression block(s), taking care not to pinch the o-ring. Tighten cord grip around supply line(s). !Install overload protection...
