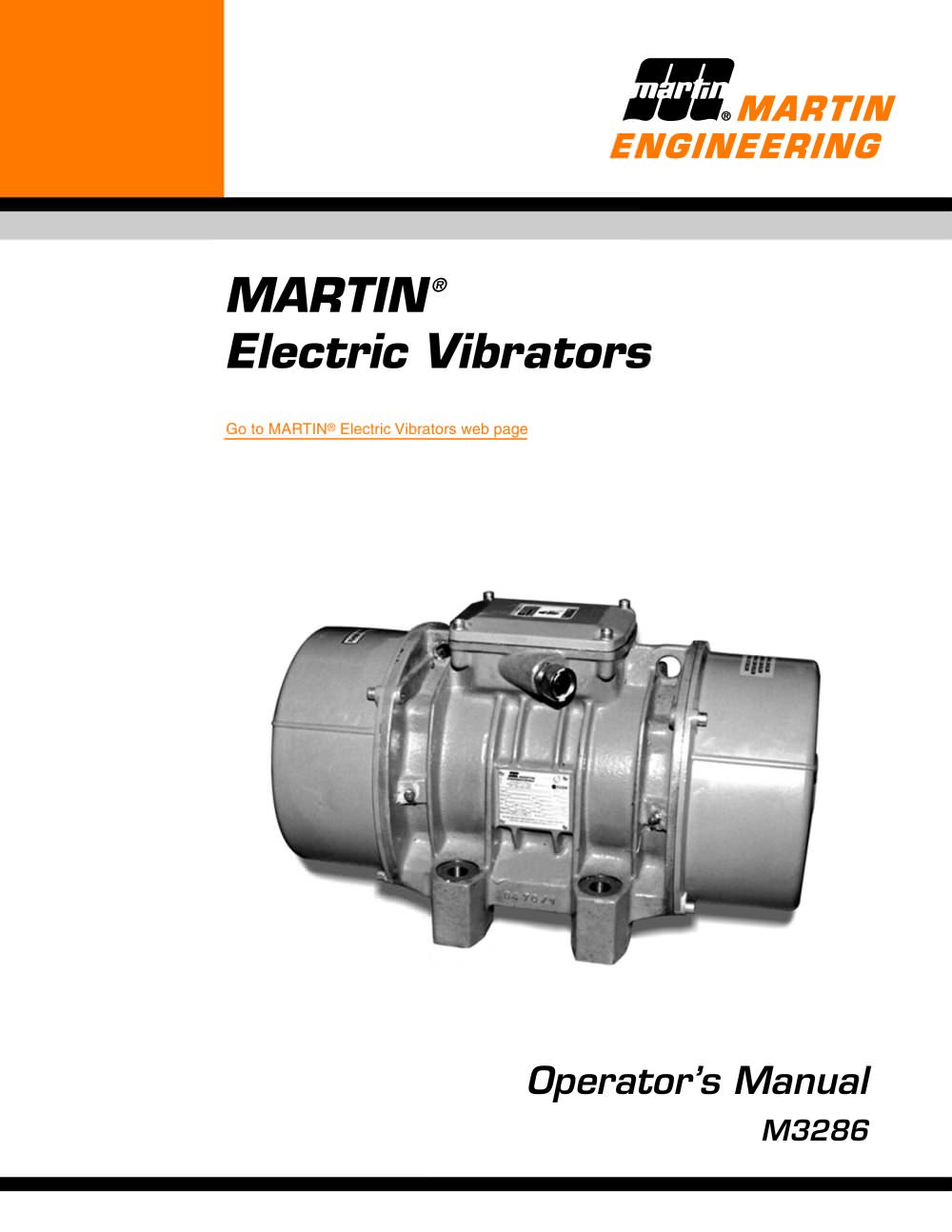

MARTIN > Electric Vibrators > Go to MARTIN ή Electric Vibrators web page Operators Manual M3286 size="-2">

MARTIN ENGINEERING HEREBY DISCLAIMS ANY LIABILITY FOR: DAMAGE DUE TO CONTAMINATION OF THE MATERIAL; USERS FAILURE TO INSPECT, MAINTAIN AND TAKE REASONABLE CARE OF THE EQUIPMENT; INJURIES OR DAMAGE RESULTING FROM USE OR APPLICATION OF THIS PRODUCT CONTRARY TO INSTRUCTIONS AND SPECIFICATIONS CONTAINED HEREIN. MARTIN ENGINEERINGҒS LIABILITY SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF EQUIPMENT SHOWN TO BE DEFECTIVE.Observe all safety rules given herein along with owner and Government standards and regulations. Know and understand lockout/tagout procedures as defined by American National Standards...

MARTIN > ή Electric Vibrators >

MARTIN > ή Electric Vibrators >

MARTIN > Electric Vibrators (CD models) are designed and manufactured to ensure the best performance and reliability in severe-duty applications. The vibrator motor has a recommended operational ambient temperature and mounting surface temperature range of -22 to 104ΰF (-30 to 40C). If operating the motor in environments beyond these temperatures, call Martin Engineering, as the vibrator may require rating reduction, more frequent lubrication, or lubrication substitution.This manual provides instructions for installation onto steel bins and hoppers only. For installation onto other structures,...

In addition to metric hand tools, the following materials are required to install this equipment:Rigid beam or mounting plate. ՕMARTIN > BBAC Cable Kit, P/N 32271, or equivalent.(Mount Kit for Electric Vibrators, P/N 32401-XX includes W-beam Mount, mounting hardware, and MARTIN > Introduction ή BBAC Safety Cable Kit.) > Store vibrator in an ambient temperature not less than 41F (5аC) with a relative humidity not more than 60%. If the vibrator has been stored for 2 or more years, remove bearings, wash them, and repack them with new grease (see MaintenanceӔ). > Martin Engineering M3286-10/08 2...

The delivery service is responsible for damage occurring in transit. Martin Engineering CANNOT enter claims for damages. Contact your transportation agent for more information. 1.Inspect shipping container/pallet for damage. Report damage to delivery service immediately and fill out delivery services claim form. Keep any damaged goods subject to examination.2.Remove vibrator from shipping container/pallet. 3.If anything is missing contact Martin Engineering or a representative. > Before Installation !Turn off and lock out/tag out all energy sources to conveyor/loading systems to mounting structure....

Read entire section before beginning work. This manual provides instructions for installations onto steel bins and hoppers only. For other installations, call Martin Engineering or a representative. > Installation ! > If installation instructions are not followed, structure and vibrator can be damaged. Abusing or handling vibrator carelessly will accelerate wear and shorten bearing life. > 1.See Figure 1. Locate vibrator in lower 1/4 to 1/3 of structure slope length. If second vibrator is required, mount 180 from first vibrator and halfway up slope. > Never weld structure with vibrator mounted...

Installation Skip weld ECF bracket Vibratormounting holesW-beam P/N 29757-XXP/N 29383-XX P/N 28309-XX T-beam Locking wedge > Martin Engineering M3286-10/08 5 > MARTIN ή Electric Vibrators size="-1">

7.After the vibrator has been operated for 10 to 20 minutes, check bolt torque. Tighten if necessary. > Vibrator TypeFrame Size*EnglishMetricBolt Size(Gr 5)Dry Torque(ft-lb)Bolt SizeDry Torque(kgm) CD, CDS00, 015/16 in. -18NC17M82CD, CDS10, 201/2 in. -13NC76M128CD, CDS30, 33, 35, 40, 505/8 in. -11NC137M1619 CD603/4 in. -10NC288M2038CD707/8 in. -9NC430M2256CD801 in. -8NC644M2471 CD90, 951 in. -8NC644M2589CD971-1/2 in. -8NC1374M36190CD100, 105, 1101-3/4 in. -8NCN/AM42**290*See Part NumbersӔ section for specific model numbers.**Plated bolt with antiseize. *Torque specifications are for reference...

!If vibrator is mounted more than 6 in. (152 mm) above ground, install cable securing vibrator to structure. Without cable, vibrator could fall and cause injury. > Installation 8.Secure vibrator to structure by installing MARTIN > BBAC Cable Kit, P/N 32271, or equivalent as follows (cable is included with Mount Kit for Electric Vibrators, P/N 32401-XX):a.Weld D-ring (A, Figure 4) onto structure wall (B) above vibrator. A BD CEF B A.B. C.D.E.F.D-ringStructure wall Wire cableVibrator lifting eyeD-ring on W-beamCable clamp (6) > b.Loop 1/4-in. (6 mm) wire cable (C) through vibrator lifting eye (D)...

After removing any nuts or cap screws from vibrator assembly, re-install to the torque values specified in Table II. > Installation Cap Screwsft/lb (kgm)Shaft Nutsft/lb (kgm)Terminal Block Nutsft/lb (kgm) M67 (1)M13x122 (3)M40.87 (0.12)M816.5 (2.3)M15x136 (5)M51.45 (0.20)M1035 (4.8)M20x172 (10)M62.17 (0.30)M1258 (8)M25x1.5123 (17)M84.70 (0.65)M1494 (13)M30x1.5246 (34)M109.80 (1.35)M16137 (19)M45x1.5360 (50)M18195 (27)M20275 (38) !Wire vibrator in accordance with National Electrical Code Article 430. Have wiring installed by a qualified electrician only. > 1.Find wiring diagram number for your...

Distance Between Flats Distance Between Flats Compression Nut Compression Nut > Installation Martin Engineering M3286-10/08 10 > MARTIN Electric Vibrators size="-1">

4.Install wire connector between the two flat washers. See Figure 7. !Vibrator must be grounded using the power supply ground wire (or other if specified in the NEC). Failure to properly ground vibrator can cause severe injury or death. > 5.Connect power supply ground wire (or other if specified in the NEC) to ground vibrator terminal. Use closed loop wire connector only.6.Reassemble wiring cover, o-ring, and rubber compression block(s), taking care not to pinch the o-ring. Tighten cord grip around supply line(s). !Thermistors are intended for motor winding protection. They do not replace overload...
