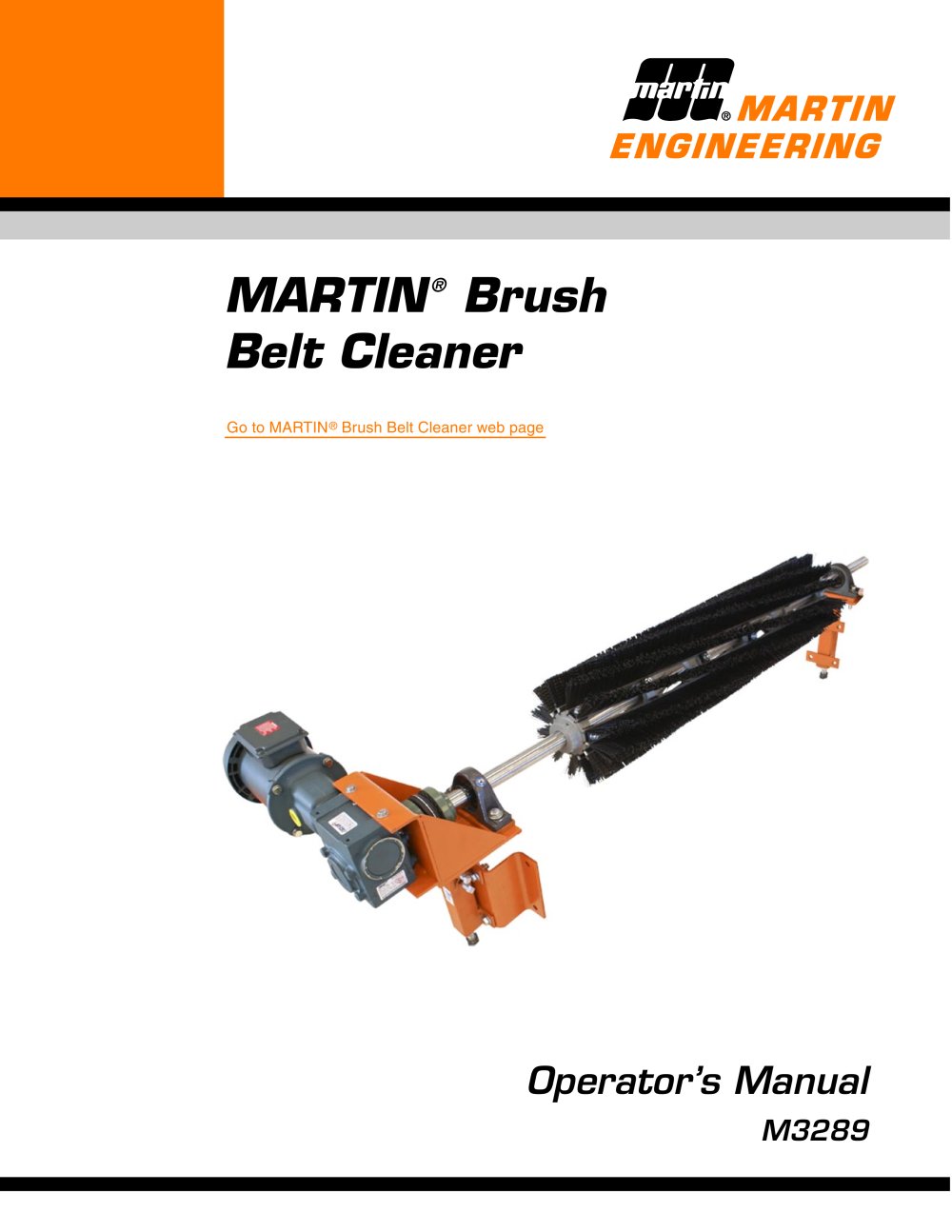

MARTIN > BrushBelt Cleaner > Go to MARTIN ή Brush Belt Cleaner web page Operators Manual M3289 size="-2">

MARTIN ENGINEERING HEREBY DISCLAIMS ANY LIABILITY FOR: DAMAGE DUE TO CONTAMINATION OF THE MATERIAL; USERS FAILURE TO INSPECT, MAINTAIN AND TAKE REASONABLE CARE OF THE EQUIPMENT; INJURIES OR DAMAGE RESULTING FROM USE OR APPLICATION OF THIS PRODUCT CONTRARY TO INSTRUCTIONS AND SPECIFICATIONS CONTAINED HEREIN. MARTIN ENGINEERINGҒS LIABILITY SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF EQUIPMENT SHOWN TO BE DEFECTIVE.Observe all safety rules given herein along with owner and Government standards and regulations. Know and understand lockout/tagout procedures as defined by American National Standards...

List of Figures and Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iiIntroduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 > General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1Installations without chutework. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1Brush cleaner inspection access. . . . . . . ....

1Dimensions for > MARTIN Standard or Rotary Strip Brush Cleaner. . . . . . . . . . .32Cutouts for > MARTIN ή Standard or Rotary Strip Brush Cleaner. . . . . . . . . . . . . . 43Installing > MARTIN Standard Brush Cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . 54Installing > MARTIN ή Rotary Strip Brush Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . 65Tensioning > MARTIN Standard or Rotary Strip Brush Cleaner. . . . . . . . . . . . . .76 > MARTIN ή Brush Cleaner Changing Belt Line . . . . . . . . . . . . . . . . . . . . . . . . . . .77 > List of Figures/Tables MARTIN Brush...

The MARTIN > Brush Cleaner is designed as a secondary cleaner for removing fines in dual cleaner systems. Each cleaner consists of a nylon or polypropylene 10-in. (254-mm) round brush mounted on a steel shaft that rotates in the opposite direction of the conveyor belt. The MARTIN > ή Rotary Strip Brush Cleaner with bristle strips is also available for applications where small amounts of moisture in the material may be present.MARTIN > Introduction Brush Cleaners are powered by explosion-proof motors that operate at 350 to 420 rpm. For belts up to 42 in. (1200 mm) wide a 1-horsepower motor is...

The delivery service is responsible for damage occurring in transit. Martin Engineering CANNOT enter claims for damages. Contact your transportation agent for more information. 1.Inspect shipping container for damage. Report damage to delivery service immediately and fill out delivery services claim form. Keep any damaged goods subject to examination.2.Remove MARTIN > Before Installation Ү Brush Cleaner from shipping container. Equipment in container should include the following:MARTIN > ծ Standard or Rotary Strip Brush Cleaner.Two Conveyor Products Warning Labels, P/N 23395.3.If anything is...

Read entire section before beginning work. To install the MARTIN > Brush Cleaner, follow the procedures corresponding to the following steps:1.Locate MARTIN > Installation ή Brush Cleaner mounts on chute walls.2.Cut holes in chute walls.3.Install MARTIN > Brush Cleaner.4.Wire MARTIN > ή Brush Cleaner motor. > A minimum clearance of 6 in. (152 mm) outside operator side chute wall and 16 in. (407 mm) outside far side chute wall is required for MARTIN > Brush Cleaner installation. 1.Ensure MARTIN > ή Brush Cleaner location allows proper clearance for MARTIN > Brush Cleaner. Locate MARTIN > ή Brush...

14 (356) Belt 12 Belt 2.81 (71)11.19(284) 3(76) 3/4(19)2-1/2 (64) 9.19(233) 10(254) 12 12(305) (305) (305) 2-1/2 (64) 3(76) 5-1/2(140)8(203) 4(102) 5-1/2(140)8(203) Far Side Cutout(No MARTIN Operator Side Cutout(For MARTIN > Ү CYA > Door) > ٮ CYA > Door and Mount Bracket) > MARTIN Brush Belt Cleaner size="-1">

1.Align MARTIN > Brush Cleaner mount over bolt holes on far side chute wall. Bolt or skip weld mount to chute wall.2.Install motor (A, Figure 3) onto motor mount on far side chute wall.3.Slide brush shaft (B) through mount on operator side chute wall and roller bearing (C) on far side chute wall.4.Install clutch (D) onto motor shaft and brush shaft. 5.Center brush (E) under conveyor belt and secure with locking hubs (F) and brush clamps (G).6.Slide operator side mount over brush shaft and install to chute wall or mount bracket if using a MARTIN > Installation ή CYA > Inspection Door.7.If necessary,...

1.Align MARTIN > Brush Cleaner mount over bolt holes on far side chute wall. Bolt or skip weld mount to chute wall.2.Install motor (A, Figure 4) onto motor mount on far side chute wall.3.Slide shaft and brush (B) through mount on operator side chute wall and roller bearing (C) on far side chute wall.4.Install clutch (D) onto motor shaft and brush shaft. 5.Center brush under conveyor belt as follows:a.Loosen two set screws (E) at each end of brush assembly.b.Center brush under belt. c.Tighten screws, securing brush assembly to shaft.6.Slide operator side mount over brush shaft and install to chute...

Tension belt cleaner so 1/4-in. (6 mm) of brush is deflected against conveyor belt. Over-adjustment will cause bristles to be pulled off brush shaft. 1.Tension MARTIN > Standard or Rotary Strip Brush Cleaner as follows:a.Turn take-up rod weldment on bottom of mount bracket until 1/4-in. (6 mm) of brush is deflected against belt (see Figure 5). Count number of turns. > Installation b.Repeat on other side with same number of turns so brush contacts belt evenly across width of belt.c.Make sure MARTIN > Brush Cleaner is not changing belt line (see Figure 6). If it is, install belt support directly...

1.Measure from edge of conveyor belt to outside edge of brush on both sides to make sure brush is centered on belt.2.Thoroughly wipe outside chute walls clean above MARTIN > Brush Cleaner mounts. Place a Conveyor Products Warning Label (P/N 23395) on both chute walls visible to belt cleaner operator. !Remove all tools from the installation area and conveyor belt before turning on the conveyor. Failure to do so can cause serious injury to personnel or damage to the belt and conveyor. > After Installation 3.Remove all tools and fire retardant cover from installation area and conveyor belt. ! >...
