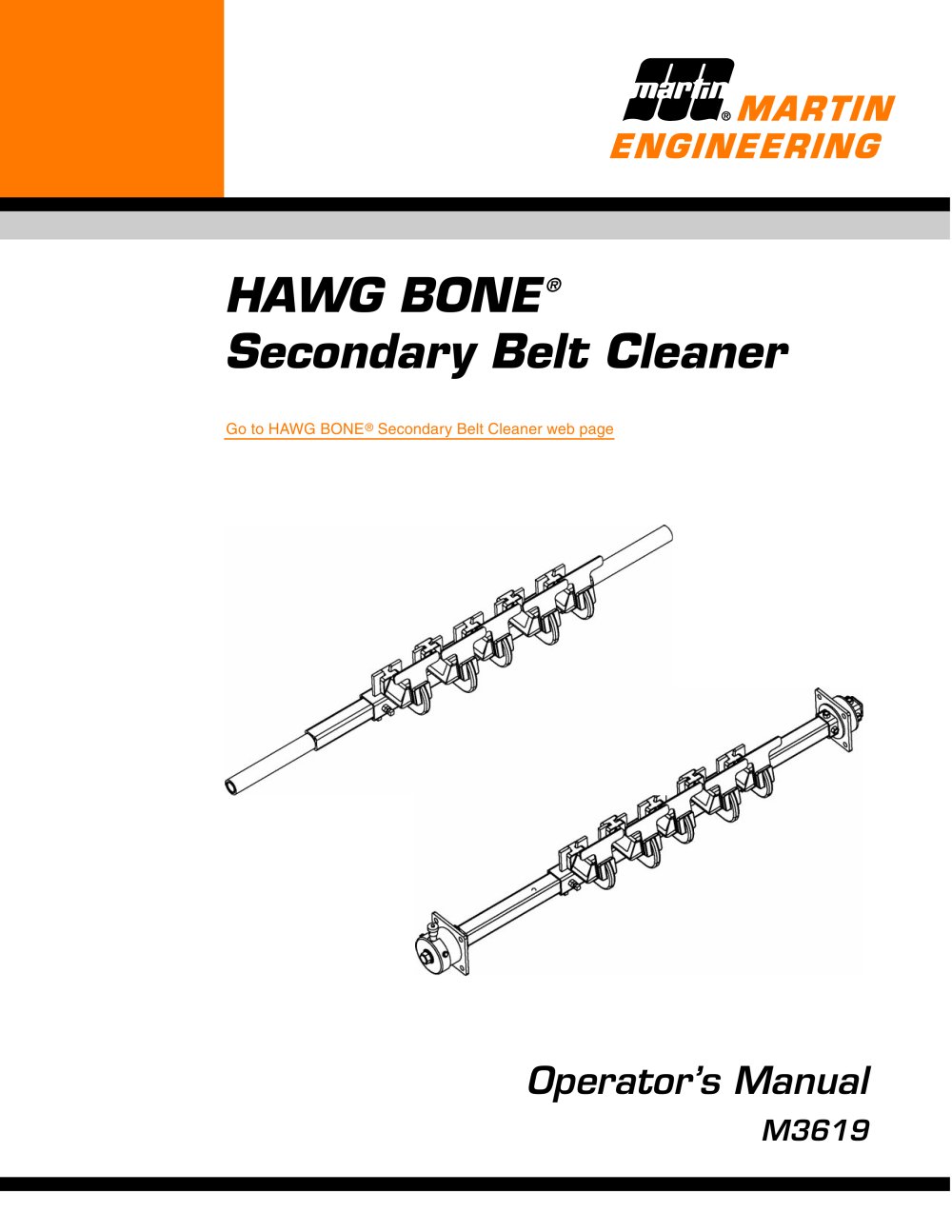

HAWG BONE > Secondary Belt Cleaner > Go to HAWG BONE ή Secondary Belt Cleaner web page Operators Manual M3619 size="-2">

MARTIN ENGINEERING HEREBY DISCLAIMS ANY LIABILITY FOR: DAMAGE DUE TO CONTAMINATION OF THE MATERIAL; USERS FAILURE TO INSPECT, MAINTAIN AND TAKE REASONABLE CARE OF THE EQUIPMENT; INJURIES OR DAMAGE RESULTING FROM USE OR APPLICATION OF THIS PRODUCT CONTRARY TO INSTRUCTIONS AND SPECIFICATIONS CONTAINED HEREIN. MARTIN ENGINEERINGҒS LIABILITY SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF EQUIPMENT SHOWN TO BE DEFECTIVE.Observe all safety rules given herein along with owner and Government standards and regulations. Know and understand lockout/tagout procedures as defined by American National Standards...

List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iiList of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iiIntroduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 > General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1Installations without chutework. ....

List of Figures & Tables HAWG BONE > Secondary Belt Cleaner >

The following documents are referenced in this manual:American National Standards Institute (ANSI) z244.1-1982, American National Standard for Personnel Protection - Lockout/Tagout of Energy Sources - Minimum Safety Requirements , American National Standards Institute, Inc., 1430 Broadway, New York, NY 10018.ՕFederal Register, Volume 54, Number 169, Part IV, 29 CFR Part 1910, > Introduction Control of Hazardous Energy Source (Lockout/Tagout); Final Rule , Department of Labor, Occupational Safety and Health Administration (OSHA), 32nd Floor, Room 3244, 230 South Dearborn Street, Chicago, Illinois...

The delivery service is responsible for damage occurring in transit. Martin Engineering CANNOT enter claims for damages. Contact your transportation agent for more information. 1.Inspect shipping container for damage. Report damage to delivery service immediately and fill out delivery services claim form. Keep any damaged goods subject to examination.2.Remove belt cleaner from shipping container. Equipment in container should include the following:ҕHAWG BONE > Before Installation Belt Cleaner (mainframe and blades).ΕTwo Conveyor Products Warning Labels, P/N 23395.3.If anything is missing, contact...

1.On operator side chute wall, draw horizontal and vertical center lines of pulley to find pulley center point (A). Make sure vertical center line is perpendicular to belt line.2.Measure 1 in. (25 mm) past point where belt leaves pulley (B), and mark vertical line on chute wall perpendicular to belt line. (More than 4 in. [100 mm] requires a hold-down roller.) > Installation 1.00 (25) min.4.00 (100) max. 1.00 (25) Center point of pulleyPoint where belt leaves pulleyCenter point of SecondaryA.B.C.Cleaner mainframe D. D HAWG BONE > Short Arm: 8-1/2 (216) > 3.Locate cleaner blades where this line...

Read entire section before beginning work. 1.After belt cleaner and tensioner are installed according to the applicable tensioner manual, measure from pulley shaft to mainframe, on both operator side and far side, to make sure mainframe is parallel to pulley.2.Measure from center point of mainframe to face of conveyor belt to make sure the proper critical dimension is held (see Figure 1).3.Measure from center point of pulley to outside edge of first and last blade to make sure blades are centered on belt.4.Make sure Secondary Cleaner is not changing belt line (see Figure 2). If it is, install...

After Installation Martin Engineering M3619-01/08 > HAWG BONE > Secondary Belt Cleaner >

Maintenance inspection should be performed no less than weekly. Your application may require more frequent maintenance inspections. > Maintenance Read entire section before beginning work. !Before servicing belt cleaner, turn off and lock out/tag out energy source to conveyor belt and conveyor accessories. > 1.Turn off and lock out/tag out energy source according to ANSI standards (see ReferencesӔ).2.Remove any material from belt cleaner. 3.Make sure all fasteners are tight. Tighten if necessary.4.Check blades for excessive wear. Allow 3 in. (76 mm) of wear on urethane, mild steel and stainless...

Do not touch or go near conveyor belt or conveyor accessories when conveyor belt is running. Body or clothing can get caught and pull body into conveyor belt, causing severe injury or death. 8.Start conveyor belt. > Maintenance Blade ColorShelf Life Blue1 Year from Code DateBrown2 Years from Code DateClear1 Year from Code DateGreen2 Years from Code DateMaximizer (orange)1 Year from Code DateOrange (A-9)1 Year from Code Date > Code Date is written near bottom of blade as mm/dd/yy-xx. If code date on your blade(s) is not legible or is missing, contact Martin Engineering or a representative. > Martin...

SymptomCorrective Action High blade wear rate.Tension is set too high. Reduce tension.Unusual wear or damage to blades.Check belt splice(s) and repair as necessary.Noise or vibration.Tension is not sufficient or is set too high. Correct tension as necessary. If this does not correct problem, blade urethane may not match application. Contact Martin Engineering or representative.Corrosion or chemical degradation.Blade urethane may not match application. Contact Martin Engineering or representative.Insufficient cleaning and carryback.Tension is set too low or too high. Increase or decrease tension....

This section provides product names and corresponding part numbers for HAWG BONE > Belt Cleaners and related equipment. Please reference part numbers when ordering parts: > Part Numbers HAWG BONE > Secondary Cleaner Assembly with MARTIN > ή TWIST or Spring Tensioner: P/N 37144-XXXXX-X. HAWG BONE > ٮ Secondary Cleaner Assembly with MARTIN > Internal Spring Tensioner: P/N 37144-XXXXXI. > MARTIN > Flange Mount with Air-Actuated Tensioner: P/N 30691 MARTIN > ή Flange Mount Spring Tensioner: P/N 30691-SM MARTIN > Flange Mount Water Tensioner: P/N 30691-W. MARTIN > ή Adjustable LӔ Bracket Spring Tensioner:...
