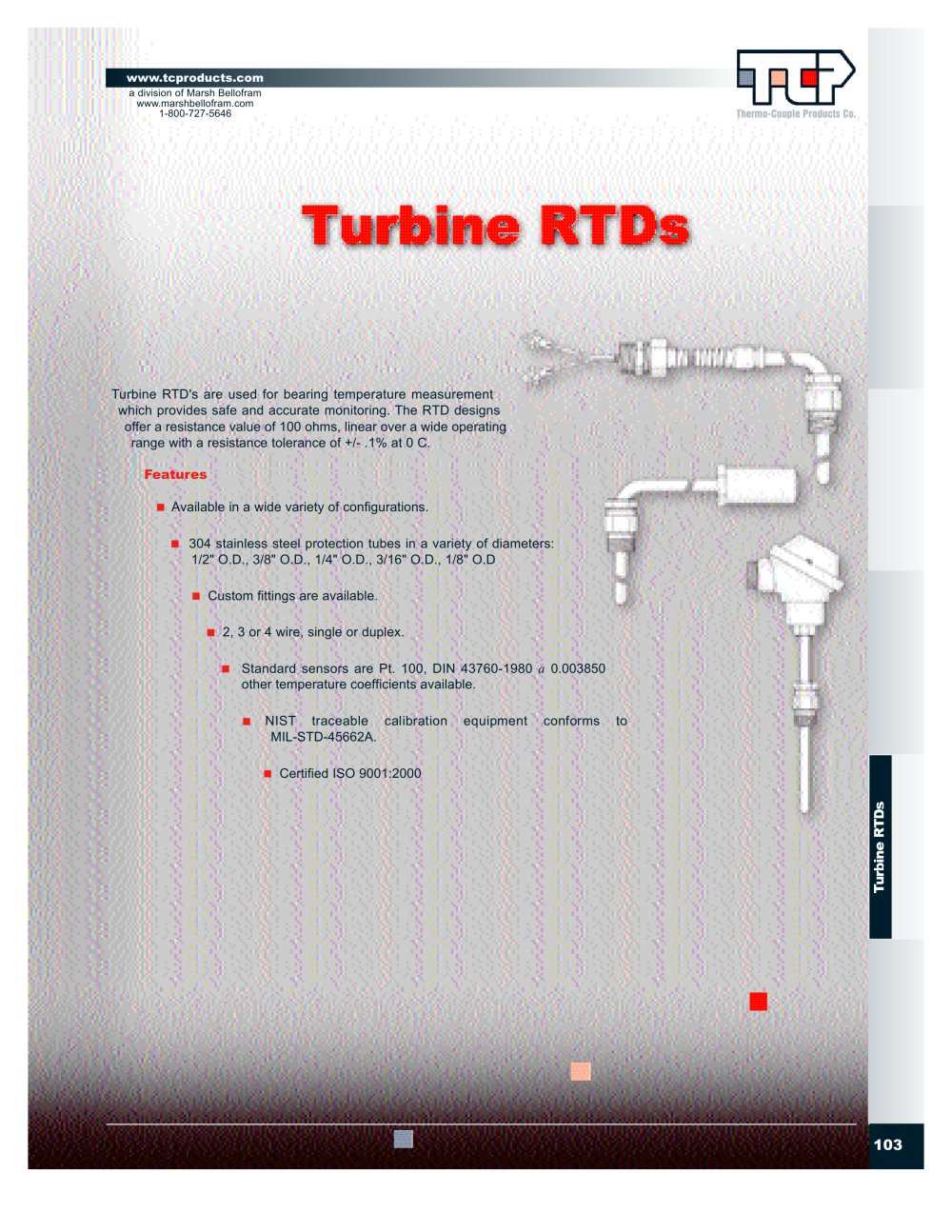

Turbine RTD's are used for bearing temperature measurement which provides safe and accurate monitoring. The RTD designs offer a resistance value of 100 ohms, linear over a wide operating range with a resistance tolerance of +/- .1% at 0 C. Features ƒ× Available in a wide variety of configurations. ƒ× 304 stainless steel protection tubes in a variety of diameters: 1/2" O.D., 3/8" O.D., 1/4" O.D., 3/16" O.D., 1/8" O.D ƒ× Custom fittings are available. ƒ× 2, 3 or 4 wire, single or duplex. ƒ× Standard sensors are Pt. 100, DIN 43760-1980 a 0.003850 other temperature coefficients available. ƒ× NIST traceable calibration equipment conforms to MIL-STD-45662A. ƒ× Certified ISO 9001:2000 www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com 1-800-727-5646 Thermo-Couple Products Co. 103
Open the catalog to page 1
www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com Thermo-Couple Products Co. 1-800-727-5646 104 TURBINE RTDs GENERAL DESCRIPTION The popularity of RTDs has increased as control systems have become more complicated. RTDs offer a linear signal that is easy for today’s instrumentation to interpret. In addition, RTDs offer superior accuracy and stability. Features • Available in a wide variety of configurations. • Stainless steel protection tubes in a variety of diameters: 1/2 in. O.D., 3/8 in. O.D., 3/16 in. O.D., 1/8 in. O.D. • Custom fitting available • 3 or 4 wire •...
Open the catalog to page 2
www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com 1-800-727-5646 Thermo-Couple Products Co. 105 WATERPROOF TURBINE RTD Part # 664-800-000 • High temperature thermoplastic rubber extruded cover protects sensor from liquid contamination. • Glass braid insulation with stainless steel overwrap. • 3/8 in. 304 stainless steel overwrap • Galvanized steel core protection conduit • Compression fitting available for adjustable insertion depths • PT100 DIN 43760-1980 a 0.003850 RECEPTACLE Standard length 1/2 in., with 1/2"-14 NPT process thread. Other dimensions available. S...
Open the catalog to page 3
www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com Thermo-Couple Products Co. 1-800-727-5646 106 BEARING TURBINE RTD HEAVY-DUTY TURBINE RTD Part # 664-810-000 • Ideal for engine and compressor service. • Spring-loaded for superior bearing contact. • High-temperature Teflon® insulation with braided stainless steel overwrap. • PT100 DIN 43760-1980 a 0.003850 RECEPTACLE Standard 1/8"-27 NPT process thread. W DIMENSION Wire length in 6 in. increments. Minimum = 5 ft. WIRE CONFIGURATION: 3 or 4 U DIMENSION Insertion length. Specify your requirements. IDENTIFICATION Model...
Open the catalog to page 4
www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com 1-800-727-5646 Thermo-Couple Products Co. 107 HEAVY-DUTY TURBINE RTD Part # 664-830-000 • For installations where a flexible conduit connection is undesirable. • Compact unit with snap-on locking terminal head. • 1/4 in. or 3/8 in. O.D. 304 stainless steel protection tube • Terminal block is easily accessible for extension wire connection. • PT100 DIN 43760-1980 a 0.003850 WIRE CONFIGURATION: 3 or 4 Configuration Number: 664-830-000 Enter a selection for each item below, please fax your inquiry to TCP. !Metric Ord e...
Open the catalog to page 5
www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com Thermo-Couple Products Co. 1-800-727-5646 108 HEAVY-DUTY TURBINE RTD Part # 664-840-000 • 3/8 in. O.D. 304 stainless steel protection tube. • High temperature glass braid insulation • Braided stainless steel overwrap • 1/2 in. O.D. flexible 304 stainless steel protective conduit • Available in compression fitting for adjustable insertion lengths • PT100 DIN 43760-1980 a 0.003850 RECEPTACLE Standard length 1/2 in., with 1/2"-14 NPT process thread. Other dimensions available. S DIMENSION Standard tube extension length 2...
Open the catalog to page 6
www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com 1-800-727-5646 Thermo-Couple Products Co. 109 LIGHT-DUTY TURBINE RTD Part # 664-850-000 • 1/2"-14 NPT compression fitting. • 1/2 in. box connector • PT100 DIN 43760-1980 a 0.003850 WIRE CONFIGURATION: 3 or 4 IDENTIFICATION Model number, sales order number or your number. Configuration Number: 664-850-000 B DIMENSION In 1 in. increments Minimum = 4 in., Maximum = 12 in. SPRING-LOADED TURBINE RTD Part # 664-860-000 • Aluminum screw-top head permits transmitter installation • 1/4 in. O.D. 304 stainless steel protection...
Open the catalog to page 7
www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com Thermo-Couple Products Co. 1-800-727-5646 110 ADJUSTABLE IMMERSION TURBINE RTD Part # 664-870-000 • Teflon-coated with stainless steel overbraid • 1/4 in. O.D. 304 stainless steel protection tube • PT100 DIN 43760-1980 a 0.003850 WIRE CONFIGURATION: 3 or 4 Configuration Number: 664-870-000 RECEPTACLE 1/2 in. NPT stainless steel compression fitting. Other dimensions available. W DIMENSION Wire length in 1 in. increments. Minimum - 8 in. U DIMENSION Insertion length in 1/8 in. increments. Minimum 1-3/8 in., Maximum 15 in....
