Marsh Bellofram Thermo-Couple Products Division Plastics Industry Thermocouples

Product catalog summary

Overview: Thermo-Couple Products Co., a division of Marsh Bellofram, offers a range of thermocouples primarily used in the plastics industry for temperature measurement in injection molding machines, extrusion equipment, thermoforming, and blow molding devices. These thermocouples are designed to operate at a maximum temperature of 800°F (427°C) and are typically constructed with 304 or 316 stainless steel sheaths.

Specifications:

Series 5520, 5521, 5522: Compression type thermocouples with a 304 stainless steel sheath and a 1/8" NPT brass male adapter. They feature all stainless construction with fiberglass insulated wire and are rated for a maximum operating temperature of 800°F.
Series 5523, 5524, 5525: Spring-loaded thermocouples designed to maximize heat transfer, also rated for 800°F. They include a 304 stainless steel sheath and fiberglass insulated wire.
Series 5528, 5529: Universal thermocouples with adjustable immersion lengths, commonly used for injection molding, heated dies, platens, and pipelines. They feature stainless steel construction and are rated for 800°F.

Customization Options:

Wire Calibration: Options include J (Iron/Constantan), K (Chromel/Alumel), T (Copper/Constantan), and E (Chromel/Constantan).
Immersion Length: Specified in inches from 01 to 99, with factory consultation required for lengths over 99 inches.
Sheath Diameter: Standard diameters are .125" and .187", with other options available upon consultation.
Junction Style: Options include grounded flat tip (W1) and ungrounded tip (W3), with W1 being standard.
Termination Style: Includes standard plug, mini plug, 3" pig-tail with #6 ring terminal, and 1/2" BX connector, with specific codes for each style.

Ordering Information: Metric orders are welcome, and customers are encouraged to specify their requirements using the provided codes and fax their inquiries to TCP for processing.

Catalog excerpts

Marsh Bellofram Thermo-Couple Products Division Plastics Industry Thermocouples-1

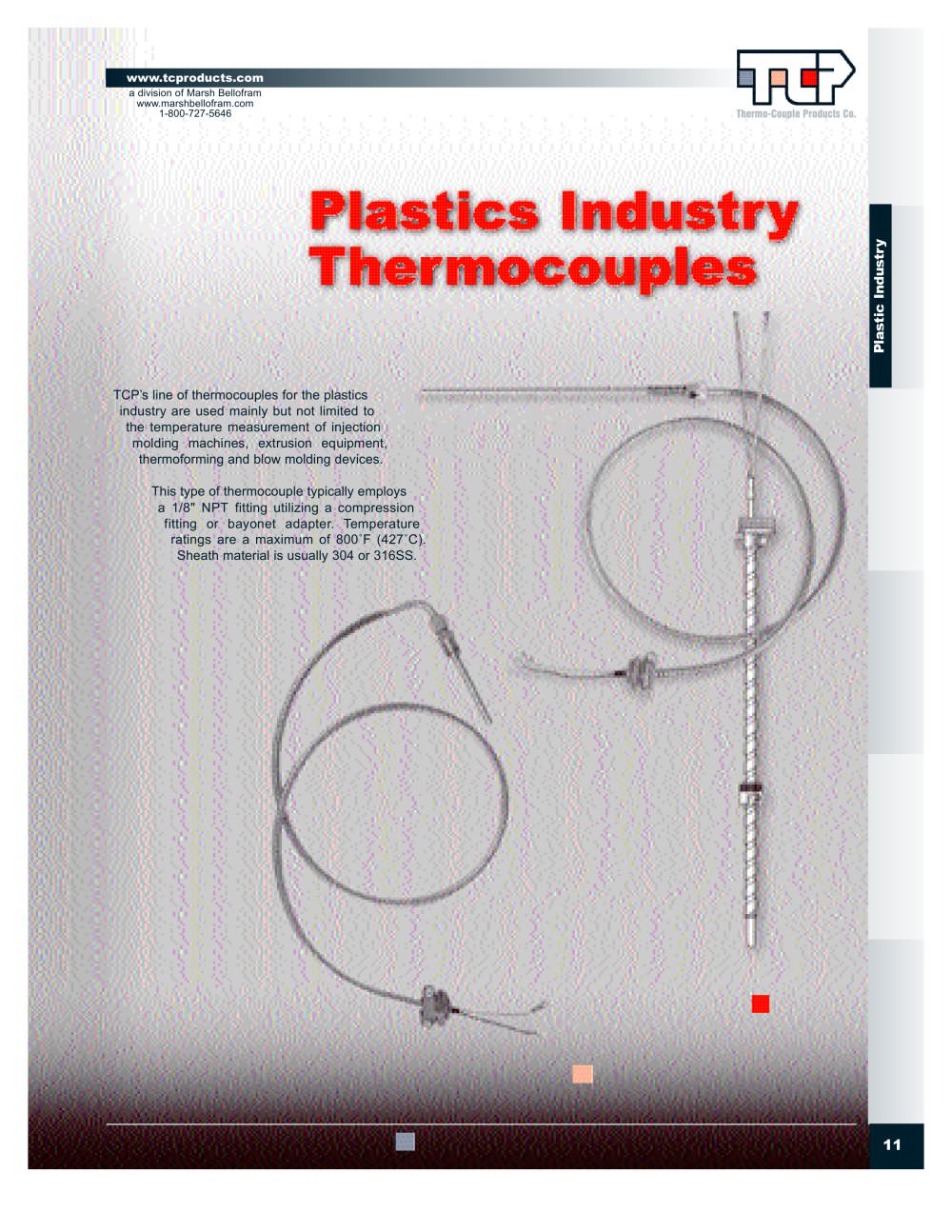

www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com 1-800-727-5646 Thermo-Couple Products Co. 11 TCP’s line of thermocouples for the plastics industry are used mainly but not limited to the temperature measurement of injection molding machines, extrusion equipment, thermoforming and blow molding devices. This type of thermocouple typically employs a 1/8" NPT fitting utilizing a compression fitting or bayonet adapter. Temperature ratings are a maximum of 800°F (427°C). Sheath material is usually 304 or 316SS.

Open the catalog to page 1

Marsh Bellofram Thermo-Couple Products Division Plastics Industry Thermocouples-2

www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com Thermo-Couple Products Co. 1-800-727-5646 12 INJECTION MOLDING THERMOCOUPLE Series 5520 • Compression Type Thermocouples for Injection Molding Applications • 304 Stainless Steel Sheath • 1/8" NPT Brass Male Adapter is Supplied Standard. • All Stainless Construction with Fiberglass Insulated Wire • 800°F Maximum Operating Temperature. ! Metric Ord e rs Welcome Place an mm in the appropriate selection box: 100 mm Enter a selection for each item, please fax your inquiry to TCP. 5520 - Example: - - - - - - CODE WIRE CALIBRATION...

Open the catalog to page 2

Marsh Bellofram Thermo-Couple Products Division Plastics Industry Thermocouples-3

www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com 1-800-727-5646 Thermo-Couple Products Co. 13 INJECTION MOLDING THERMOCOUPLE ! Metric Ord e rs Welcome Place an mm in the appropriate selection box: 100 mm Enter a selection for each item, please fax your inquiry to TCP. 5521 - Example: - - - - - - CODE WIRE CALIBRATION J K T E Iron/Constantan Chromel/Alumel Copper/ Constantan Chromel/Constantan IMMERSION LENGTH “L” Specify in inches 01 to 99. For lengths over 99 inches consult factory. CODE OTHER PERTINENT DATA 0 999 NONE Special Request Consult Factory CODE SHEATH DIAMETER...

Open the catalog to page 3

Marsh Bellofram Thermo-Couple Products Division Plastics Industry Thermocouples-4

www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com Thermo-Couple Products Co. 1-800-727-5646 14 INJECTION MOLDING THERMOCOUPLE Series 5522 • Compression Type Thermocouples for Injection Molding Applications • 304 Stainless Steel Sheath • 1/8" NPT Brass Male Adapter is Supplied. • All Stainless Construction with Fiberglass Insulated Wire • 800°F Maximum Operating Temperature. ! Metric Ord e rs Welcome Place an mm in the appropriate selection box: 100 mm Enter a selection for each item, please fax your inquiry to TCP. 5522 - Example: - - - - - - CODE WIRE CALIBRATION J K T...

Open the catalog to page 4

Marsh Bellofram Thermo-Couple Products Division Plastics Industry Thermocouples-5

www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com 1-800-727-5646 Thermo-Couple Products Co. 15 SPRING LOADED INJECTION MOLDING THERMOCOUPLE Series 5523 • Spring Rated for 800°F (425°C) Maximum Service • 304 Stainless Steel Sheath • Spring Loaded to Maximize Heat Transfer • All Stainless Construction with Fiberglass Insulated Wire • 800°F (425°C) Maximum Operating Temperature. ! Metric Ord e rs Welcome Place an mm in the appropriate selection box: 100 mm Enter a selection for each item, please fax your inquiry to TCP. 5523 - Example: - - - - - - IMMERSION LENGTH “L” Specify...

Open the catalog to page 5

Marsh Bellofram Thermo-Couple Products Division Plastics Industry Thermocouples-6

www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com Thermo-Couple Products Co. 1-800-727-5646 16 SPRING LOADED INJECTION MOLDING THERMOCOUPLE Series 5524 • Spring Rated for 800°F (425°C) Maximum Service • 304 Stainless Steel Sheath • Spring Loaded to Maximize Heat Transfer • All Stainless Construction With Fiberglass Insulated Wire • 800°F (425°C) Maximum Operating Temperature. ! Metric Ord e rs Welcome Place an mm in the appropriate selection box: 100 mm Enter a selection for each item, please fax your inquiry to TCP. 5524 - Example: - - - - - - IMMERSION LENGTH “L” Specify...

Open the catalog to page 6

Marsh Bellofram Thermo-Couple Products Division Plastics Industry Thermocouples-7

www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com 1-800-727-5646 Thermo-Couple Products Co. 17 SPRING LOADED INJECTION MOLDING THERMOCOUPLE Series 5525 • Spring Rated for 800°F (425°C) Maximum Service • 304 Stainless Steel Sheath • Spring Loaded to Maximize Heat Transfer • All Stainless Construction with Fiberglass Insulated Wire • 800°F (425°C) Maximum Operating Temperature. ! Metric Ord e rs Welcome Place an mm in the appropriate selection box: 100 mm Enter a selection for each item, please fax your inquiry to TCP. 5525 - Example: - - - - - - IMMERSION LENGTH “L” Specify...

Open the catalog to page 7

Marsh Bellofram Thermo-Couple Products Division Plastics Industry Thermocouples-8

www.tcproducts.com a division of Marsh Bellofram www.marshbellofram.com Thermo-Couple Products Co. 1-800-727-5646 18 UNIVERSAL THERMOCOUPLE 5528 - E - .50 - 36 - 10 - 0 Series 5528 • Adjustable Immersion Stainless Steel Flex-Hose Acts as a Spring • Commonly Used for Injection Molding, Heated Dies, Platens, Pipelines and Others. • Stainless Steel Construction Rated for 800°F (425°C) Enter a selection for each item, please fax your inquiry to TCP. 5528 - Example: - - - - CODE WIRE CALIBRATION J K T E Iron/Constantan Chromel/Alumel Copper/ Constantan Chromel/Constantan CODE OTHER PERTINENT DATA...
