Marsh Bellofram PCD Division Value Series Gauges, Diaphragm Seals, Pressure Indicators

Product catalog summary

Overview: This document outlines the accessories offered by Marsh Bellofram, including gauges, diaphragm seals, and pressure indicators, with detailed specifications, features, and ordering information.

1. Manual Panel Station (MPS 8):

Description: A precision high flow regulator suitable for laboratory panels and control rooms, featuring a three-way valve for manual or automatic operation.
Specifications: Pressure ranges from 0-15 PSIG to 0-2.1 BAR, flow capacity of 25 SCFM, sensitivity of 1” w.c., and temperature range of -20 to 160˚F.
Features: Utilizes Type 41 Precision Regulator, self-relieving, high flow capacity, available in direct or reverse acting styles.

2. Value Series Gauges:

Description: Economical gauges for non-corrosive media like water, oil, air, and gas.
Specifications: ASME Grade B accuracy, ranges from 15 to 160 PSI, dual scale PSI and kPa standard.

3. Diaphragm Seals:

Description: Isolation devices that protect instruments from process media, extending service life.
Models: Includes Model 12000, 13000, 13040, 14000, and 14040, with materials like 316SS and Hastelloy C.
Features: Options for easy clean out, various fill materials, and different diaphragm materials.

4. Handheld Digital Pressure Indicator:

Description: Portable device for calibrating and testing pressure instruments, with a digital LCD readout.
Specifications: Range from -14.7 to 200 psig, accuracy of ±0.5%, includes carrying case and technical manual.

5. Company Information:

Overview: Marsh Bellofram Group provides products for industrial, process, and automation markets, including pressure instruments and pneumatic controls.
Quality Assurance: ISO 9001:2000 certified, focusing on value and quality.
Warranty: 18-month warranty for defects, with repair or replacement options.

6. Additional Fees:

Drop Ship Fee: $10.00 per shipment for non-distributor addresses.
Expedite Fee: $15.00 per order line item for expedited shipping within two business days.
Retesting Fee: $25.00 per unit for products returned that meet quality specifications.
Restocking Fee: 25% fee for authorized credit returns, waived if shipped in error.

Evaluation Fee: $25.00 per unit for mechanical products out of warranty; $25.00 to $75.00 for electro-mechanical products.

Return Goods Authorization Procedure: Returns accepted for defective products, authorized samples, wrong or duplicate shipments, or warranty repair. Defective products must be confirmed before credit issuance. The procedure includes:

Issuance of an RGA number with completed information blocks.
RGA number displayed on package and packing slip.
All RGAs shipped to Bellofram with freight pre-paid. Credit issued for freight on duplicate, wrong, and defective products.
Authorization by Bellofram CS Manager or VP Sales required, RGAs valid for 45 days.

Required Information for RGA Approval:

Customer invoice number
Customer account number
Customer PO number
Bellofram system number
Product catalog number and quantity
Product description
Reason for return

Catalog excerpts

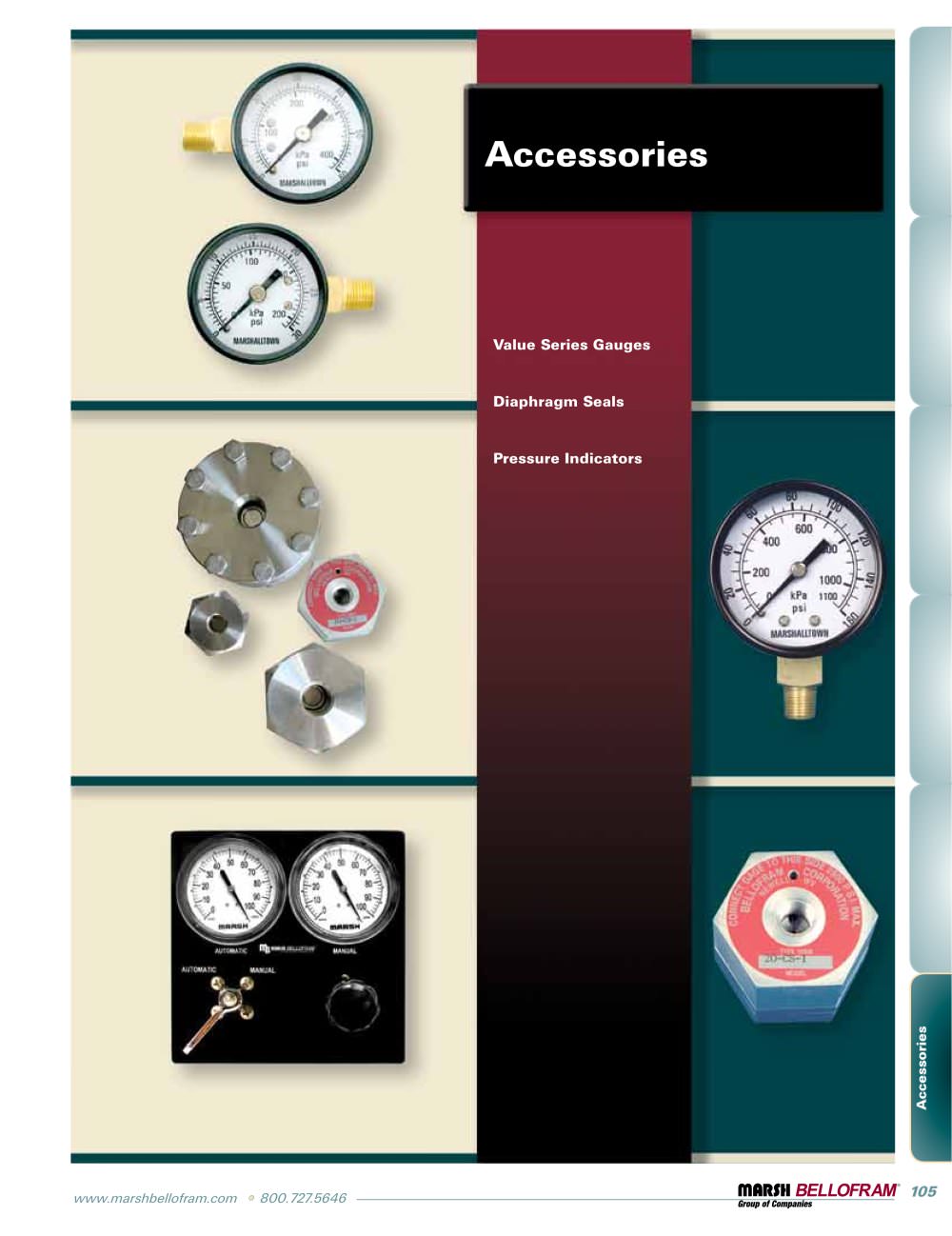

Marsh Bellofram PCD Division Value Series Gauges, Diaphragm Seals, Pressure Indicators-1

www.marshbellofram.com • 800.727.5646 105 Accessories Accessories Value Series Gauges Diaphragm Seals Pressure Indicators

Open the catalog to page 1

Marsh Bellofram PCD Division Value Series Gauges, Diaphragm Seals, Pressure Indicators-2

106 800.727.5646 • www.marshbellofram.com Accessories MPS 8 Manual Panel Station Description Marsh Bellofram’s Manual Panel Stations offer a precision high flow regulator with a quality gauge in a space saving package for ease of installation and versatility. Most often found in laboratory panels, and control rooms, they are ideally suited for applications that require maintaining and monitoring critical pressures in a system. The addition of a three-way valve allows for operation in either a manual mode where the pressure is set and monitored at the panel, or automatic mode where the pressure...

Open the catalog to page 2

Marsh Bellofram PCD Division Value Series Gauges, Diaphragm Seals, Pressure Indicators-3

www.marshbellofram.com • 800.727.5646 107 Accessories AUTOMATIC MANUAL AUTOMATIC MANUAL 0.125 THK 7.25 1.829 Remote Supply 1/4 NPT Instrument Air Supply 1/4 NPT 1.35 REMOTE SUPPLY 1/4 NPT 4X 1/4–20 UNC–2A 1/4 NPT 2.219 8. Square Panel Opening INSTRUMENT AIR SUPPLY 1/4 NPT 34.3 46.5 56.4 3.2 184 in. mm .406 4x 10.3 203.2 8.5 Square 216 .406 4x 10.3 MPS 8 Dimensional Drawings MPS 8 Principles of Operation Type 41 Pressure Regulator Series See Page 10 Panel Loading Station MPS 8 consists of a T41 regulator and a standard 3-12" gauge configured as shown. The three-way valve allows switching the load...

Open the catalog to page 3

Marsh Bellofram PCD Division Value Series Gauges, Diaphragm Seals, Pressure Indicators-4

108 800.727.5646 • www.marshbellofram.com Accessories Features • ASME Grade B Accuracy • Extra Savings with Quantity Pricing • 4 Standard Mounting Options: LM, CB, Right and Left Marshalltown Value Series are the most economical, general purpose gauge in the Marsh gauge line. Suited for use with water, oil, air, gas, and other non-corrosive media. Typical applications include FRL’s, compressors, pumps, boilers, regulators, dryers as well as commercial and industrial equipment. Marshalltown Value Series Gauges Specifications Accuracy ASME Grade B = ±3/2/3% (±2% of range across middle half of scale)...

Open the catalog to page 4

Marsh Bellofram PCD Division Value Series Gauges, Diaphragm Seals, Pressure Indicators-5

www.marshbellofram.com • 800.727.5646 109 Accessories Description Model 12000 Mini Serviceable Rubber Diaphragm Seal Model 12000 Ordering Info 12000 Upper Housing 22 14 316SS 24 12 52 14 PVC 54 12 Lower Housing 22 14 316SS 24 12 52 14 PVC 54 12 Diaphragm 3 Nitrile 4 Fluorocarbon 5 Neoprene Easy Clean Out 0 None 2 Clean Out Fill 0 No Fill G Glycerine S Silicone The Model 12000 Serviceable Mini Diaphragm Seal is designed for gauges and instruments with operating pressure to 2500 psi with stainless and 500 PSI with PVC models. Ideally suited for small applications and corrosive installations. The...

Open the catalog to page 5

Marsh Bellofram PCD Division Value Series Gauges, Diaphragm Seals, Pressure Indicators-6

110 800.727.5646 • www.marshbellofram.com Accessories Description Model 13040 All Welded Diaphragm Seal Model 13040 Ordering Info 13040 Upper Housing 22 14 316SS 24 12 Lower Housing 22 14 316SS 24 12 26 34 28 1 42 14 Hastelloy 44 12 46 34 48 1 Diaphragm 1 316SS 2 Hastelloy C Flush Connection 0 None 2 14 Fill 0 No Fill G Glycerine S Silicone The Model 13040 All Welded Seal is designed for 2" to 4-12" bourdon tube gauges with pressure ranges from vacuum to 1000 psi. Available in all 316SS or Hastelloy C process housing and diaphragm, with threaded connections. Optional flushing connections also...

Open the catalog to page 6

Marsh Bellofram PCD Division Value Series Gauges, Diaphragm Seals, Pressure Indicators-7

www.marshbellofram.com • 800.727.5646 111 Accessories Description Model 14040 Removable Diaphragm Seal The Model 14040 Removable Diaphragm Seal is a welded diaphragm-to-upper design allowing the upper housing to be removed with the instrument in place without loosing fill. The same interlocking feature as the 14000 is used to assure alignment of the upper to the lower. Available in threaded connections for pressures vacuum to 2500 PSI. Fill/bleed port screw in the upper is standard and an optional flush connection is available. Filled and calibrated to gauges only 25/8" 1.53" 1.5" 2.5" HEX 1.66"...

Open the catalog to page 7

Marsh Bellofram PCD Division Value Series Gauges, Diaphragm Seals, Pressure Indicators-8

800.727.5646 • www.marshbellofram.com Marsh Bellofram Group of Companies is the consolidation of pneumatics, electronics and electrical components for the industrial, process and automation markets. Electro-pneumatic and pneumatic controls, pressure and temperature instruments, digital counters and timers, motor controls and motion control instrumentation make up the main stay of the Companies products. The Groups include Marsh and Marshalltown pressure instruments, Bellofram pneumatic products, Automatic Timing and Controls counters and timers, Diversified Electronics motor protection products,...
