Marsh Bellofram PCD Division Type 5000 P/I Transducers

Marsh Bellofram PCD Division Type 5000 P/I Transducers
2Pages

Catalog excerpts

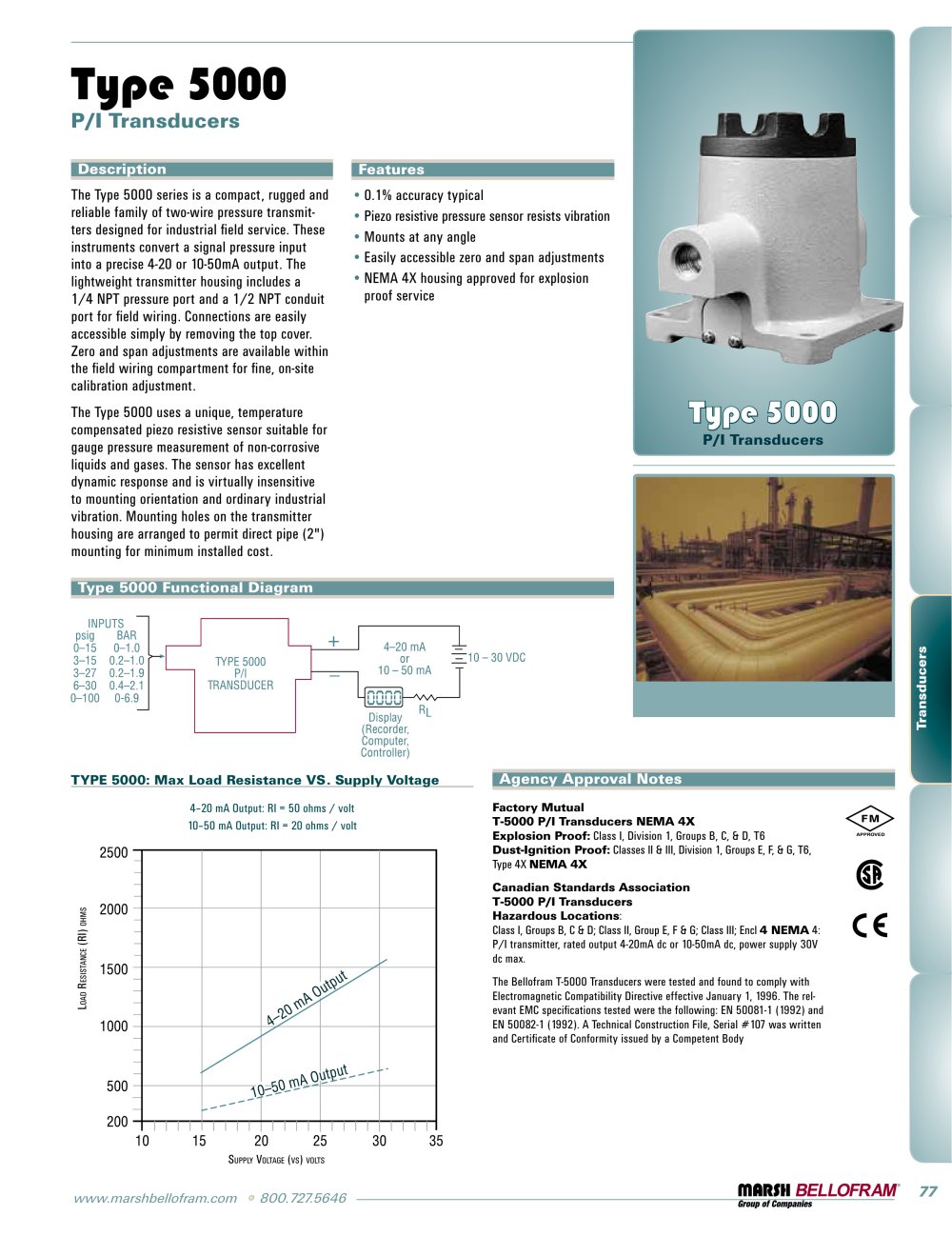

Marsh Bellofram PCD Division Type 5000 P/I Transducers - 1

www.marshbellofram.com • 800.727.5646 77 Transducers Description The Type 5000 series is a compact, rugged and reliable family of two-wire pressure transmitters designed for industrial field service. These instruments convert a signal pressure input into a precise 4-20 or 10-50mA output. The lightweight transmitter housing includes a 1/4 NPT pressure port and a 1/2 NPT conduit port for field wiring. Connections are easily accessible simply by removing the top cover. Zero and span adjustments are available within the field wiring compartment for fine, on-site calibration adjustment. The Type 5000 uses a unique, temperature compensated piezo resistive sensor suitable for gauge pressure measurement of non-corrosive liquids and gases. The sensor has excellent dynamic response and is virtually insensitive to mounting orientation and ordinary industrial vibration. Mounting holes on the transmitter housing are arranged to permit direct pipe (2") mounting for minimum installed cost. Type 5000 P/I Transducers Type 5000 P/I Transducers Features • 0.1% accuracy typical • Piezo resistive pressure sensor resists vibration • Mounts at any angle • Easily accessible zero and span adjustments • NEMA 4X housing approved for explosion proof service Type 5000 Functional Diagram TYPE 5000: Max Load Resistance VS. Supply Voltage 4–20 mA Output: RI = 50 ohms / volt 10–50 mA Output: RI = 20 ohms / volt load ResistanCe (Ri) ohMs suPPly voltage ( vs) volts Factory Mutual T-5000 P/I Transducers NEMA 4X Explosion Proof: Class I, Division 1, Groups B, C, & D, T6 Dust-Ignition Proof: Classes II & III, Division 1, Groups E, F, & G, T6, Type 4X NEMA 4X Canadian Standards Association T-5000 P/I Transducers Hazardous Locations: Class I, Groups B, C & D; Class II, Group E, F & G; Class III; Encl 4 NEMA 4: P/I transmitter, rated output 4-20mA dc or 10-50mA dc, power supply 30V dc max. The Bellofram T-5000 Transducers were tested and found to comply with Electromagnetic Compatibility Directive effective January 1, 1996. The relevant EMC specifications tested were the following: EN 50081-1 (1992) and EN 50082-1 (1992). A Technical Construction File, Serial #107 was written and Certificate of Conformity issued by a Competent Body Agency Approval Notes

Open the catalog to page 1

Marsh Bellofram PCD Division Type 5000 P/I Transducers - 2

78 800.727.5646 • www.marshbellofram.com Transducers Type 1500 Specifications Input signal 0–15 PSIG 0–1.0 BAR 3–15 PSIG 0.2–1.0 BAR 3–27 PSIG 0.2–1.9 BAR 6–30 PSIG 0.4–2.1 BAR 0.2–1.0 BAR 3–15 PSIG 0–100 PSIG 0–6.9 BAR Output Signal 4–20 mA DC, 2 wire 10–50 mA DC, 2 wire Output Protections Reverse polarity protected Accuracy includes nonlinearity, hysteresis and non-repeatability ± 0.1% span typical; ± 0.25% span max. Overpressure 45 PSIG (3.1 BAR) without calibration shift 60 PSIG (4.1 BAR) without failure Allowable Loads See Graph Response Time Less than 10 msec for step change to 99% R...

Open the catalog to page 2
