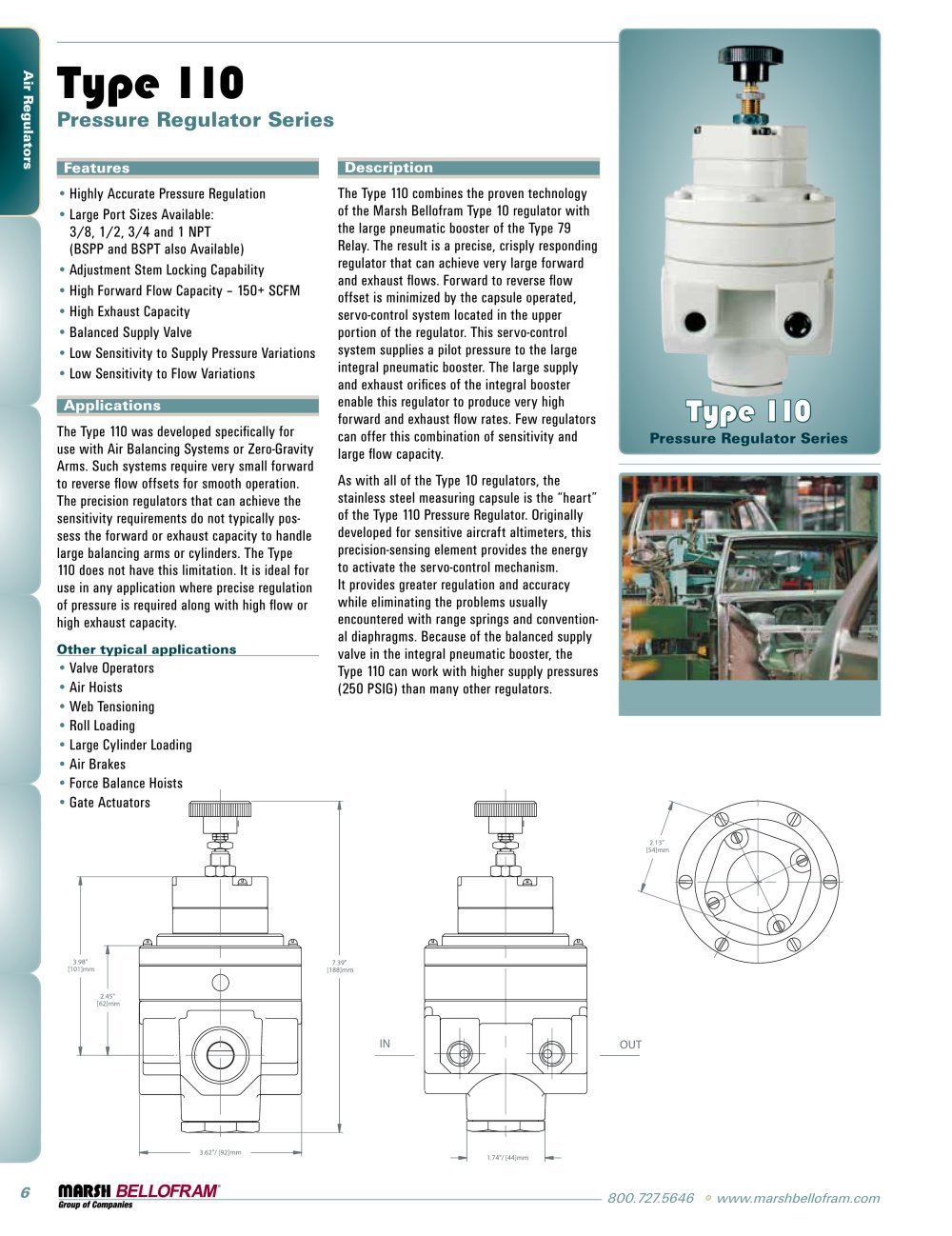

6 800.727.5646 • www.marshbellofram.com Air Regulators Features • Highly Accurate Pressure Regulation • Large Port Sizes Available: 3/8, 1/2, 3/4 and 1 NPT (BSPP and BSPT also Available) • Adjustment Stem Locking Capability • High Forward Flow Capacity – 150+ SCFM • High Exhaust Capacity • Balanced Supply Valve • Low Sensitivity to Supply Pressure Variations • Low Sensitivity to Flow Variations Applications The Type 110 was developed specifically for use with Air Balancing Systems or Zero-Gravity Arms. Such systems require very small forward to reverse flow offsets for smooth operation. The precision regulators that can achieve the sensitivity requirements do not typically possess the forward or exhaust capacity to handle large balancing arms or cylinders. The Type 110 does not have this limitation. It is ideal for use in any application where precise regulation of pressure is required along with high flow or high exhaust capacity. Other typical applications • Valve Operators • Air Hoists • Web Tensioning • Roll Loading • Large Cylinder Loading • Air Brakes • Force Balance Hoists • Gate Actuators Type 110 Pressure Regulator Series Description The Type 110 combines the proven technology of the Marsh Bellofram Type 10 regulator with the large pneumatic booster of the Type 79 Relay. The result is a precise, crisply responding regulator that can achieve very large forward and exhaust flows. Forward to reverse flow offset is minimized by the capsule operated, servo-control system located in the upper portion of the regulator. This servo-control system supplies a pilot pressure to the large integral pneumatic booster. The large supply and exhaust orifices of the integral booster enable this regulator to produce very high forward and exhaust flow rates. Few regulators can offer this combination of sensitivity and large flow capacity. As with all of the Type 10 regulators, the stainless steel measuring capsule is the “heart” of the Type 110 Pressure Regulator. Originally developed for sensitive aircraft altimeters, this precision-sensing element provides the energy to activate the servo-control mechanism. It provides greater regulation and accuracy while eliminating the problems usually encountered with range springs and conventional diaphragms. Because of the balanced supply valve in the integral pneumatic booster, the Type 110 can work with higher supply pressures (250 PSIG) than many other regulators. Type 110 Pressure Regulator Series

www.marshbellofram.com • 800.727.5646 7 Air Regulators Type 110 Maximum Supply Pressure 250 PSIG / 17.2 BAR Output Pressure Ranges 2-25 PSIG / 0.14-1.7 BAR 2-50 PSIG / 0.14-3.5 BAR 2-110 PSIG / 0.14-7.6 BAR Port Sizes 3/8, 1/2, 3/4, 1 NPT, BSPT or BSPP Effect of Supply Pressure Variation on Outlet Pressure 0.01 psig / 0.6 mBAR change in output for a 25 psig/1.7 BAR change in supply pressure Sensitivity 1/4" / 6.4 mm of water column Air Consumption 14 scfh / 6.6 slpm @ max output pressure Forward Flow Capacity (100 psig/ 6.9 BAR supply, 20 psig / 1.4 BAR set point) 3/8 NPT - 110 SCFM+ / 3105 SLPM...
