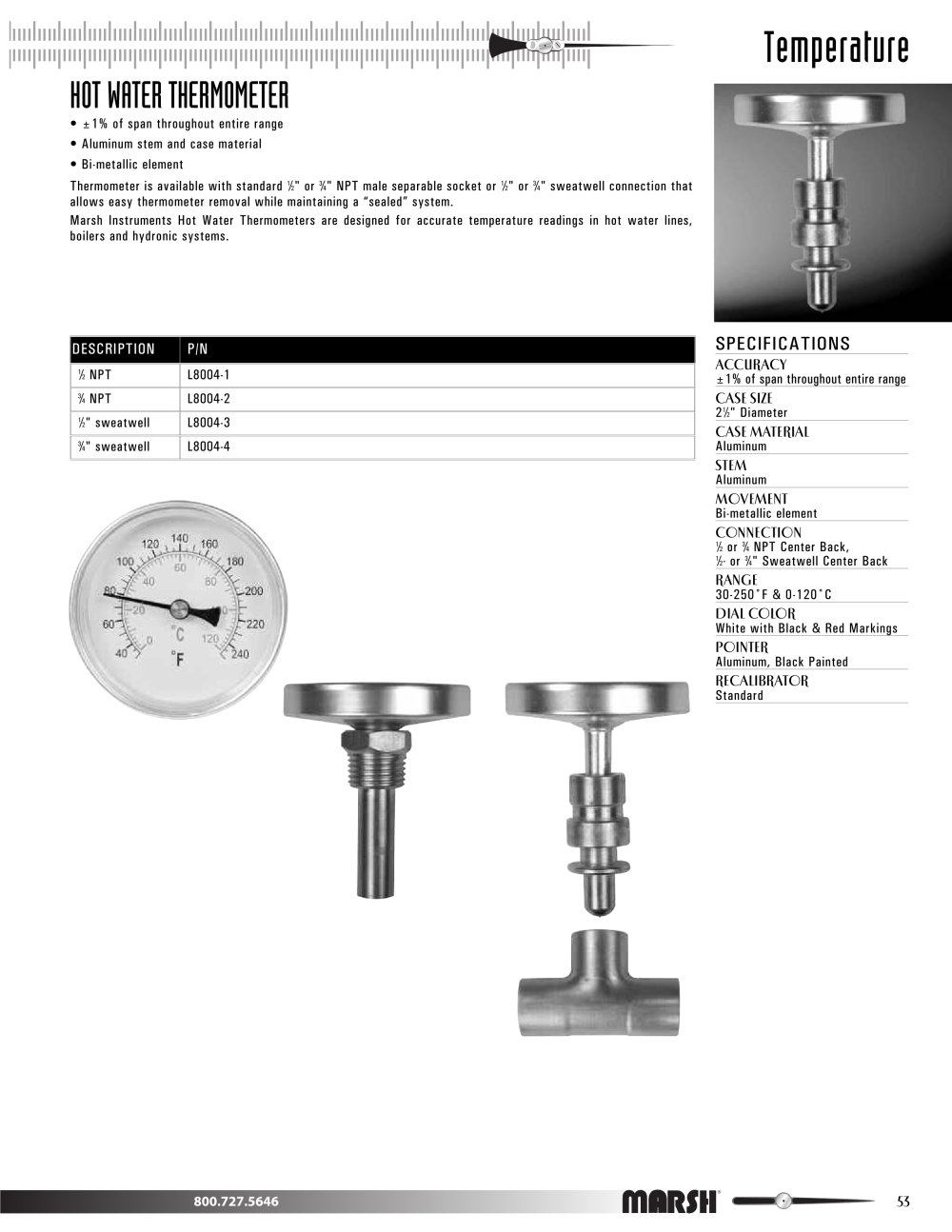

Marsh Bellofram - Marsh Division - Temperature Instruments - Hot Water Thermometer - 1

53 Temperature HOT WATER THERMOMETER • ±1% of span throughout entire range • Aluminum stem and case material • Bi-metallic element Thermometer is available with standard 12" or 34" NPT male separable socket or 12" or 34" sweatwell connection that allows easy thermometer removal while maintaining a “sealed” system. Marsh Instruments Hot Water Thermometers are designed for accurate temperature readings in hot water lines, boilers and hydronic systems. SPECIFICATIONS ACCURACY ±1% of span throughout entire range CASE SIZE 212" Diameter CASE MATERIAL Aluminum STEM Aluminum MOVEMENT Bi-metallic element CONNECTION 12 or 34 NPT Center Back, 12” or 34" Sweatwell Center Back RANGE 30-250°F & 0-120°C DIAL COLOR White with Black & Red Markings POINTER Aluminum, Black Painted RECALIBRATOR Standard DESCRIPTION P/N 12 NPT L8004-1 34 NPT L8004-2 12" sweatwell L8004-3 34" sweatwell L8004-4

Open the catalog to page 1

Marsh Bellofram - Marsh Division - Temperature Instruments - Hot Water Thermometer - 2

54 Temperature BIMETAL THERMOMETERS • External Reset Feature for Field Recalibration (3" & 5") • 2", 3" and 5" Dials • 9 Dual Scale Ranges to 1,000°F (525°C) • Stem Lengths to 24" • Hermetically Sealed Case Design • 1% Full Scale Accuracy Marsh Instruments Bimetal Thermometers combine the benefits of economy and reliability for local mounted temperature indication in the dual scale ranges from -50° to 1,000°F (-40° to 525°C). Additional advantages offered by the Series “L” Bimetal Thermometers include an easy-to-read dual scale, fast speed of response, and accurate temperature indication....

Open the catalog to page 2

Marsh Bellofram - Marsh Division - Temperature Instruments - Hot Water Thermometer - 4

56 Temperature POCKET THERMOMETER • 1" Dial • 304 Stainless Steel Hermetically Sealed Case • 5" long stem • Protective Case with Stainless Steel Clip Marsh pocket thermometers have a 1" dial, 304SS hermetically sealed case, 304SS 0.4mm diameter 5" long stem, and plastic lens. The accuracy is ±1.5% of scale range. Each unit comes with a protective case with SS clip, that allows it to be safely carried in your pocket and also can be used to hold the thermometer in the medium to be tested. Typical applications include the food industries, HVAC/R industries, and any applications requiring fast...

Open the catalog to page 4

Marsh Bellofram - Marsh Division - Temperature Instruments - Hot Water Thermometer - 5

57 Temperature TYPE INDUSTRIAL THERMOMETERS 9" ADJUSTABLE With 312" Stem Stem & Well 312" (NO) 312" SW 312" LW Dual Scale ºF & ºC ºF & ºC ºF & ºC Range -40° to 110°F /-40° to 40°C Y1210 Y1202 Y1242 0° to 120°F /-15° to 45°C Y1211 Y1203 Y1243 0° to 160°F /-15° to 65°C Y1212 Y1204 Y1244 30° to 240°F /0° to 115°C Y1214 Y1206 Y1246 30° to 300°F /0° to 150°C Y1216 Y1208 Y1248 With 6" Stem Stem & Well 6" (NO) 6" SW 6" LW Dual Scale ºF & ºC ºF & ºC ºF & ºC Range -40° to 110°F /-40° to 40°C Y1218 Y1226 Y1234 0° to 120°F /-15° to 45°C Y1219 Y1227 Y1235 0° to 160°F /-15° to 65°C Y1220 Y1228 Y1236 30°...

Open the catalog to page 5

Marsh Bellofram - Marsh Division - Temperature Instruments - Hot Water Thermometer - 6

58 Temperature TYPE SUBMARINE THERMOMETERS Stem Length 2" Dual Scale ºF & ºC STRAIGHT 90º BACK ANGLE Range -40° to 110°F /-40° to 40°C Y1402 Y1412 20° to 180°F /-6° to 82°C Y1404 Y1414 30° to 240°F /0° to 114°C Y1406 Y1416 50° to 400°F /10° to 200°C Y1408 Y1418 SUBMARINE THERMOMETER • 5" Scale Size • V-Shaped aluminum scale with black markings • Lens front, red reading organic filled tube • Gray ABS Case • 2" nominal stem length for 314" OA socket Each thermometer is manufactured to a standard accuracy of 1% of span. Gray case with red reading spirit filled tube with magnifying lens for...

Open the catalog to page 6

Marsh Bellofram - Marsh Division - Temperature Instruments - Hot Water Thermometer - 7

59 Temperature SPECIFICATIONS ACCURACY ASME Grade B=±3/2/3% (±2% of range across middle half of scale) CASE SIZE 212" Round & 312" Square CASE MATERIAL Steel, black painted CONNECTION 212" case: 14 NPT Center Back Mount, 312" case: 12 NPT Lower Mount or Lower Back Mount PRESSURE RANGES Dual scale in 4 ranges: 0 to 60 psi & 0 to 130 ft. of water 0 to 100 psi & 0 to 230 ft. of water 0 to 200 psi & 0 to 480 ft. of water 0 to 300 psi & 0 to 680 ft. of water TEMPERATURE RANGE 60° to 260°F & 20° to 120°C DIALS Black markings on white TUBE & SOCKET Copper Alloy POINTERS Aluminum, red painted with...

Open the catalog to page 7
