Water Test Gauge

Designed to connect directly to a standard 3⁄4" water faucet or hose.
Measures commercial and residential water pressure with a dual scale dial (psi and kPa).
Specifications include ASME Grade B accuracy, 2.5" diameter steel case, copper alloy tube and socket, and a range of 0 to 300 psi.
Options for different ranges are available upon consultation.

Paper Machine Gauge

Features a hinged ring chrome-plated steel case with a protective weather-tight seal.
Available in nine ranges, fitting existing panel cutouts, with a standard restrictor.
Specifications include ASME Grade A accuracy, 3.5" diameter case, copper alloy internals, and a range of 30 to 1,000 psi.
Custom dial options are available, including various pressure units and custom logos.

X-Mas Tree Gauge

Designed for oil patches, well heads, and offshore oil platforms.
Features a polished stainless steel case with a micrometer adjustable pointer.
Specifications include ASME Grade A accuracy, 4.5" diameter case, stainless steel internals, and a range of 1,000 to 10,000 psi.
Available in multiple pressure ranges with a single scale psi dial.

Catalog excerpts

Marsh Bellofram - Marsh Division - Special Application Gauges-1

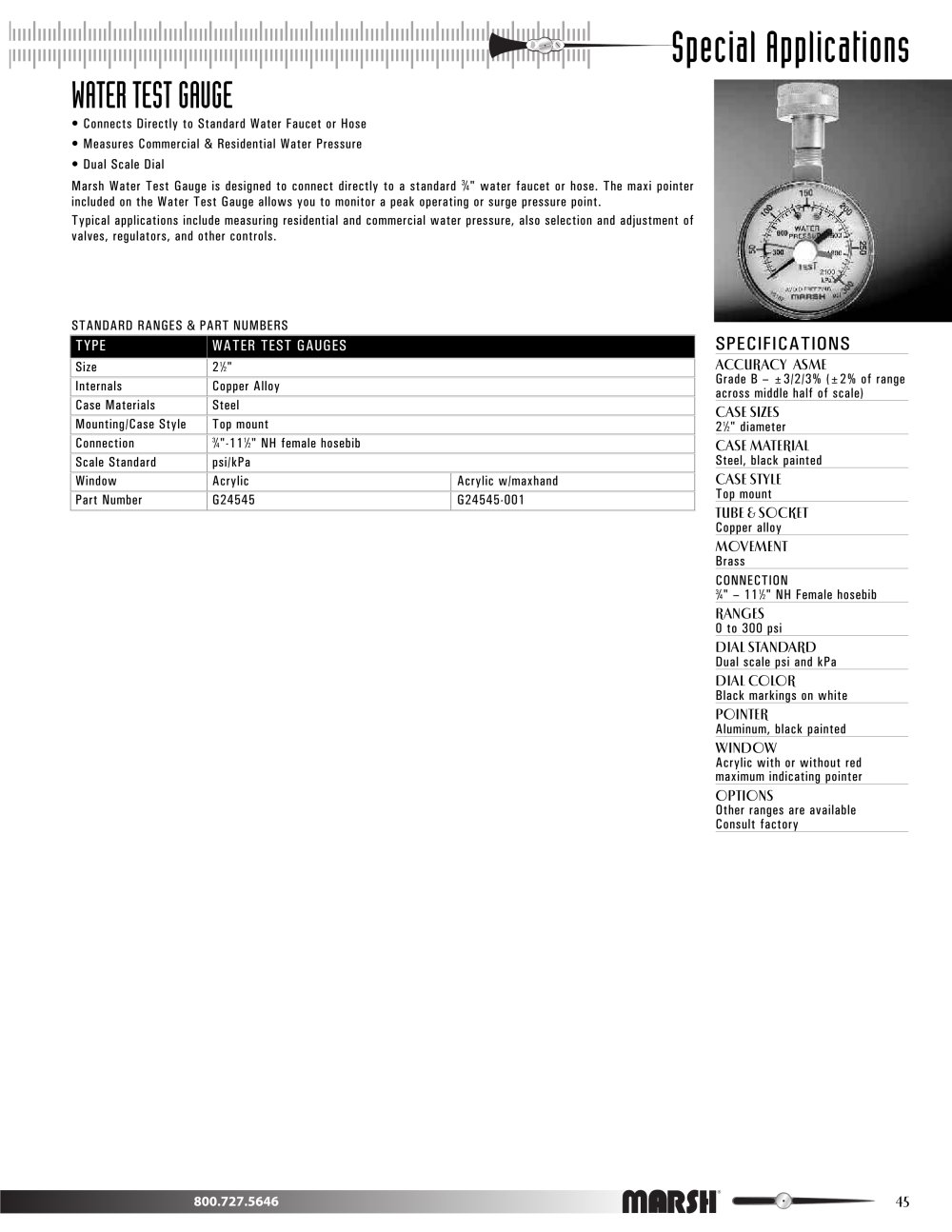

45 Special Applications WATER TEST GAUGE • Connects Directly to Standard Water Faucet or Hose • Measures Commercial & Residential Water Pressure • Dual Scale Dial Marsh Water Test Gauge is designed to connect directly to a standard 34" water faucet or hose. The maxi pointer included on the Water Test Gauge allows you to monitor a peak operating or surge pressure point. Typical applications include measuring residential and commercial water pressure, also selection and adjustment of valves, regulators, and other controls. SPECIFICATIONS ACCURACY ASME Grade B – ±3/2/3% (±2% of range across middle half of scale) CASE SIZES 212" diameter CASE MATERIAL Steel, black painted CASE STYLE Top mount TUBE & SOCKET Copper alloy MOVEMENT Brass CONNECTION 34" – 1112" NH Female hosebib RANGES 0 to 300 psi DIAL STANDARD Dual scale psi and kPa DIAL COLOR Black markings on white POINTER Aluminum, black painted WINDOW Acrylic with or without red maximum indicating pointer OPTIONS Other ranges are available Consult factory TYPE WATER TEST GAUGES Size 212" Internals Copper Alloy Case Materials Steel Mounting/Case Style Top mount Connection 34"-1112" NH female hosebib Scale Standard psi/kPa Window Acrylic Acrylic w/maxhand Part Number G24545 G24545-001 STANDARD RANGES & PART NUMBERS
