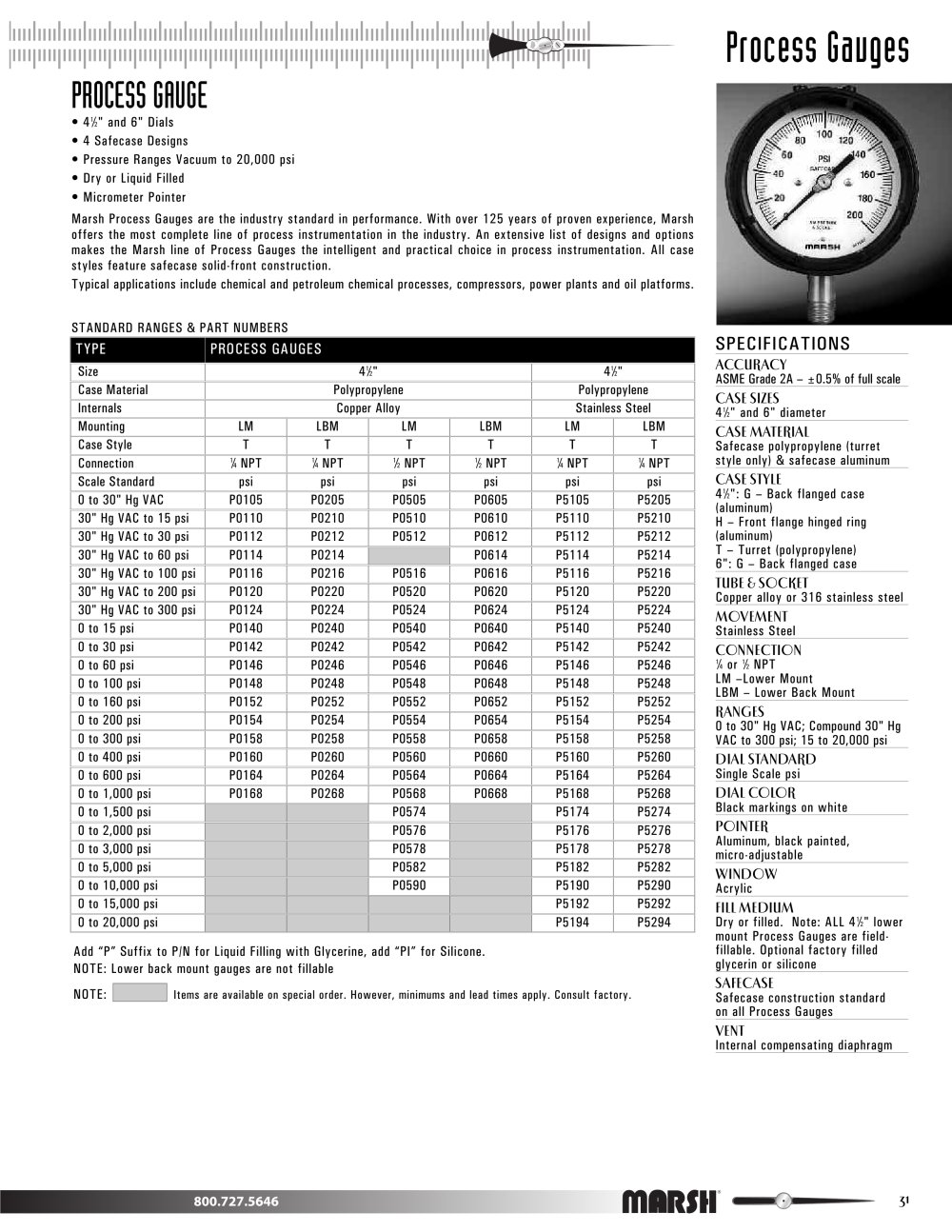

Marsh Bellofram - Marsh Division - Process Gauges - 1

31 Process Gauges SPECIFICATIONS ACCURACY ASME Grade 2A – ±0.5% of full scale CASE SIZES 412" and 6" diameter CASE MATERIAL Safecase polypropylene (turret style only) & safecase aluminum CASE STYLE 412": G – Back flanged case (aluminum) H – Front flange hinged ring (aluminum) T – Turret (polypropylene) 6": G – Back flanged case TUBE & SOCKET Copper alloy or 316 stainless steel MOVEMENT Stainless Steel CONNECTION 14 or 12 NPT LM –Lower Mount LBM – Lower Back Mount RANGES 0 to 30" Hg VAC; Compound 30" Hg VAC to 300 psi; 15 to 20,000 psi DIAL STANDARD Single Scale psi DIAL COLOR Black markings on white POINTER Aluminum, black painted, micro-adjustable WINDOW Acrylic FILL MEDIUM Dry or filled. Note: ALL 412" lower mount Process Gauges are fieldfillable. Optional factory filled glycerin or silicone SAFECASE Safecase construction standard on all Process Gauges VENT Internal compensating diaphragm Add “P” Suffix to P/N for Liquid Filling with Glycerine, add “PI” for Silicone. NOTE: Lower back mount gauges are not fillable NOTE: Items are available on special order. However, minimums and lead times apply. Consult factory. TYPE PROCESS GAUGES Size 412" 412" Case Material Polypropylene Polypropylene Internals Copper Alloy Stainless Steel Mounting LM LBM LM LBM LM LBM Case Style T T T T T T Connection 14 NPT 14 NPT 12 NPT 12 NPT 14 NPT 14 NPT Scale Standard psi psi psi psi psi psi 0 to 30" Hg VAC P0105 P0205 P0505 P0605 P5105 P5205 30" Hg VAC to 15 psi P0110 P0210 P0510 P0610 P5110 P5210 30" Hg VAC to 30 psi P0112 P0212 P0512 P0612 P5112 P5212 30" Hg VAC to 60 psi P0114 P0214 P0614 P5114 P5214 30" Hg VAC to 100 psi P0116 P0216 P0516 P0616 P5116 P5216 30" Hg VAC to 200 psi P0120 P0220 P0520 P0620 P5120 P5220 30" Hg VAC to 300 psi P0124 P0224 P0524 P0624 P5124 P5224 0 to 15 psi P0140 P0240 P0540 P0640 P5140 P5240 0 to 30 psi P0142 P0242 P0542 P0642 P5142 P5242 0 to 60 psi P0146 P0246 P0546 P0646 P5146 P5246 0 to 100 psi P0148 P0248 P0548 P0648 P5148 P5248 0 to 160 psi P0152 P0252 P0552 P0652 P5152 P5252 0 to 200 psi P0154 P0254 P0554 P0654 P5154 P5254 0 to 300 psi P0158 P0258 P0558 P0658 P5158 P5258 0 to 400 psi P0160 P0260 P0560 P0660 P5160 P5260 0 to 600 psi P0164 P0264 P0564 P0664 P5164 P5264 0 to 1,000 psi P0168 P0268 P0568 P0668 P5168 P5268 0 to 1,500 psi P0574 P5174 P5274 0 to 2,000 psi P0576 P5176 P5276 0 to 3,000 psi P0578 P5178 P5278 0 to 5,000 psi P0582 P5182 P5282 0 to 10,000 psi P0590 P5190 P5290 0 to 15,000 psi P5192 P5292 0 to 20,000 psi P5194 P5294 STANDARD RANGES & PART NUMBERS PROCESS GAUGE • 412" and 6" Dials • 4 Safecase Designs • Pressure Ranges Vacuum to 20,000 psi • Dry or Liquid Filled • Micrometer Pointer Marsh Process Gauges are the industry standard in performance. With over 125 years of proven experience, Marsh offers the most complete line of process instrumentation in the industry. An extensive list of designs and options makes the Marsh line of Process Gauges the intelligent and practical choice in process instrumentation. All case styles feature safecase solid-front construction. Typical applications include chemical and petroleum chemical processes, compressors, power plants and oil platforms.

Open the catalog to page 1

Marsh Bellofram - Marsh Division - Process Gauges - 3

33 Process Gauges TURRET CASE FRONT FLANGE CASE BACK FLANGE CASE Turret Panel Mounting Holes 0.22 Size A B C D E F G H J 412" 5.00 3.13 1.13 4.28 1.53 4.13 5.38 5.85 1.27 Back Flanged Size A B C D E G H J 23 412" 4.94 2.88 1.19 4.28 1.50 5.38 5.78 1.27 .23 6" 6.63 2.88 1.19 4.97 1.50 7.00 7.50 1.27 .28 Front Flanged Panel Mounting Holes 0.23 Size A B C G H J M 412" 6.08 1.70 1.88 5.38 4.88 1.27 0.54

Open the catalog to page 3

Marsh Bellofram - Marsh Division - Process Gauges - 4

34 Process Gauges PROCESS GAUGE OPTIONS OPTION TYPE SUFFIX AVAILABLE ON MODELS Restrictors Add restrictor H All ranges Fill Medium Glycerine (GL) P 412" Lower Mount only (all ranges) Silicone (SL) PI 412" Lower Mount only (all ranges) Catalog Dials bar only L1 See Marsh Price List for minimum kg/cm2 only L2 kPa only L3 MPa only L4 psi & bar W1 psi & kg/cm2 W2 psi & kPa W3 psi & MPa W4 Window Instrument Glass (GS) F1 412" & 6" Safety Glass (SG) F3 412" & 6" Cases Phenolic Turret (PH) J1 412" 412" Steel Case (LM or LBM) J 412" (Adjustable pointer only) 6" Hinged Ring Steel Case with U-Clamp J...
