Group: Marsh Bellofram
Catalog excerpts

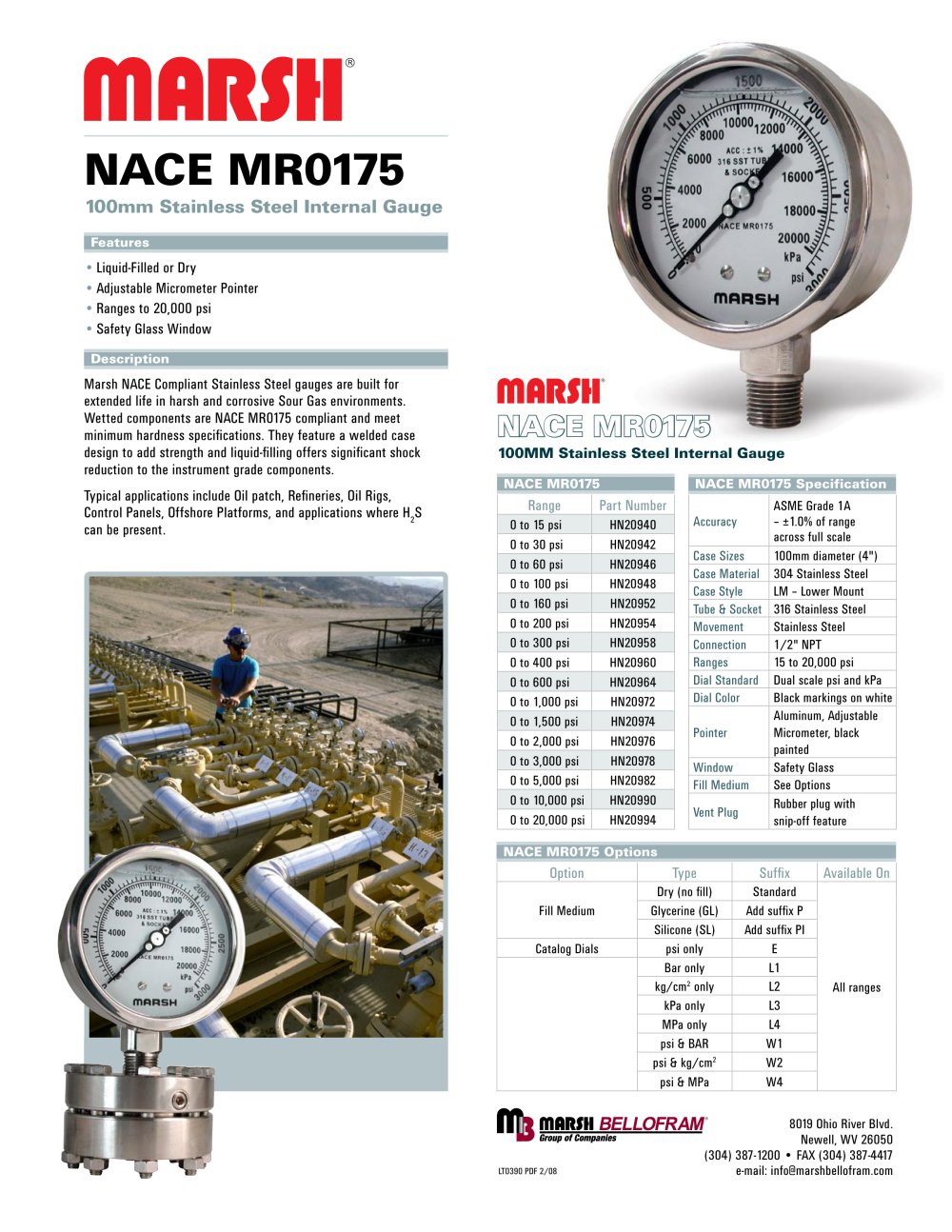

Features Liquid-Filled or Dry Adjustable Micrometer Pointer Ranges to 20,000 psi Safety Glass Window Description Marsh NACE Compliant Stainless Steel gauges are built for extended life in harsh and corrosive Sour Gas environments. Wetted components are NACE MR0175 compliant and meet minimum hardness specifications. They feature a welded case design to add strength and liquid-filling offers significant shock reduction to the instrument grade components. Typical applications include Oil patch, Refineries, Oil Rigs, Control Panels, Offshore Platforms, and applications where H2S can be present. • • • • NACE MR0175 100mm Stainless Steel Internal Gauge NACE MR0175 Range Part Number 0 to 15 psi HN20940 0 to 30 psi HN20942 0 to 60 psi HN20946 0 to 100 psi HN20948 0 to 160 psi HN20952 0 to 200 psi HN20954 0 to 300 psi HN20958 0 to 400 psi HN20960 0 to 600 psi HN20964 0 to 1,000 psi HN20972 0 to 1,500 psi HN20974 0 to 2,000 psi HN20976 0 to 3,000 psi HN20978 0 to 5,000 psi HN20982 0 to 10,000 psi HN20990 0 to 20,000 psi HN20994 NACE MR0175 Specification Accuracy ASME Grade 1A – ±1.0% of range across full scale Case Sizes 100mm diameter (4") Case Material 304 Stainless Steel Case Style LM – Lower Mount Tube & Socket 316 Stainless Steel Movement Stainless Steel Connection 1/2" NPT Ranges 15 to 20,000 psi Dial Standard Dual scale psi and kPa Dial Color Black markings on white Pointer Aluminum, Adjustable Micrometer, black painted Window Safety Glass Fill Medium See Options Vent Plug Rubber plug with snip-off feature NACE MR0175 Options Option Type Suffix Available On Fill Medium Dry (no fill) Standard All ranges Glycerine (GL) Add suffix P Silicone (SL) Add suffix PI Catalog Dials psi only E Bar only L1 kg/cm2 only L2 kPa only L3 MPa only L4 psi & BAR W1 psi & kg/cm2 W2 psi & MPa W4 NACE MR0175 100MM Stainless Steel Internal Gauge 8019 Ohio River Blvd. Newell, WV 26050 (304) 387-1200 • FAX (304) 387-4417 LT0390 PDF 2/08 e-mail: info@marshbellofram.com
