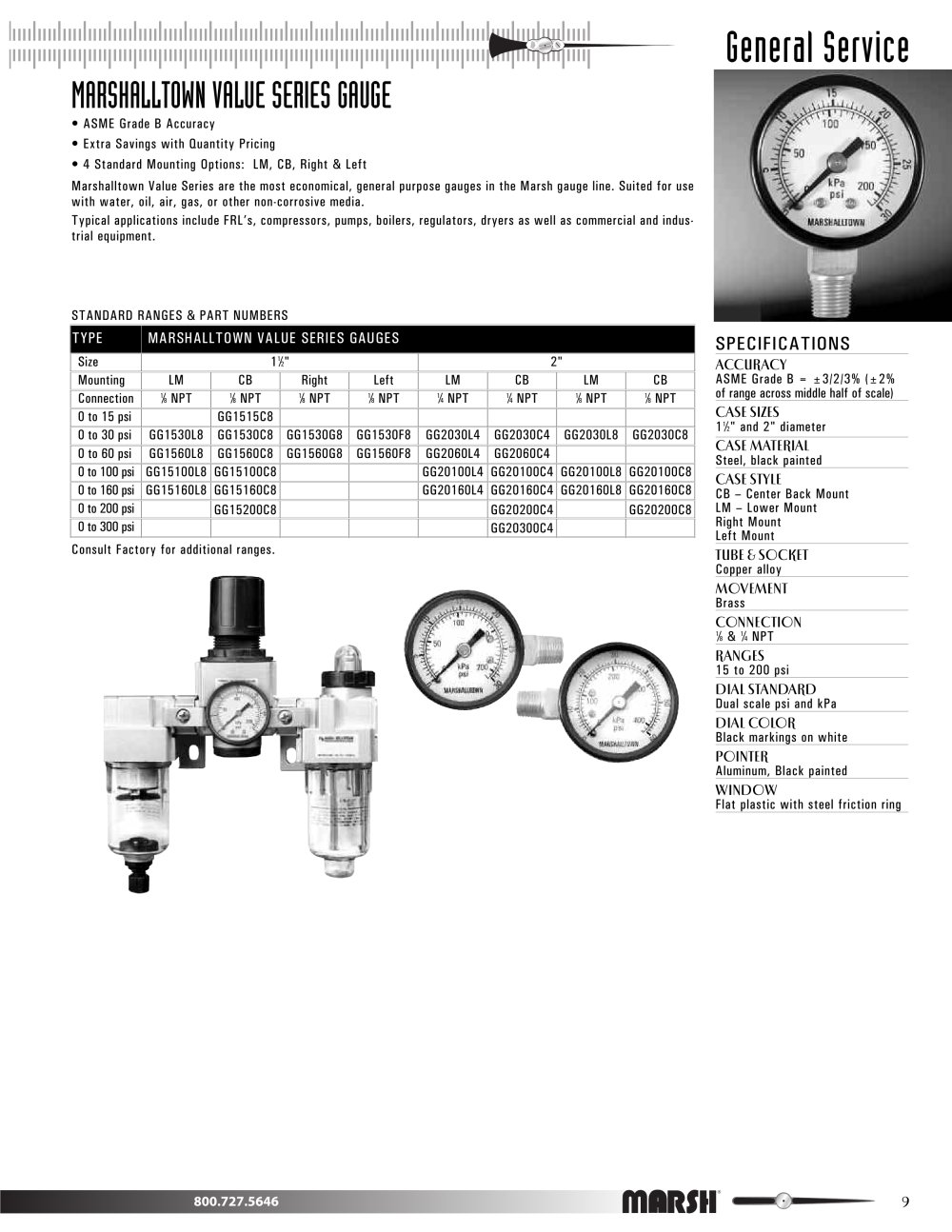

9 General Service MARSHALLTOWN VALUE SERIES GAUGE • ASME Grade B Accuracy • Extra Savings with Quantity Pricing • 4 Standard Mounting Options: LM, CB, Right & Left Marshalltown Value Series are the most economical, general purpose gauges in the Marsh gauge line. Suited for use with water, oil, air, gas, or other non-corrosive media. Typical applications include FRL’s, compressors, pumps, boilers, regulators, dryers as well as commercial and industrial equipment. SPECIFICATIONS ACCURACY ASME Grade B = ±3/2/3% (±2% of range across middle half of scale) CASE SIZES 112" and 2" diameter CASE MATERIAL Steel, black painted CASE STYLE CB – Center Back Mount LM – Lower Mount Right Mount Left Mount TUBE & SOCKET Copper alloy MOVEMENT Brass CONNECTION 18 & 14 NPT RANGES 15 to 200 psi DIAL STANDARD Dual scale psi and kPa DIAL COLOR Black markings on white POINTER Aluminum, Black painted WINDOW Flat plastic with steel friction ring TYPE MARSHALLTOWN VALUE SERIES GAUGES Size 112" 2" Mounting LM CB Right Left LM CB LM CB Connection 18 NPT 18 NPT 18 NPT 18 NPT 14 NPT 14 NPT 18 NPT 18 NPT 0 to 15 psi GG1515C8 0 to 30 psi GG1530L8 GG1530C8 GG1530G8 GG1530F8 GG2030L4 GG2030C4 GG2030L8 GG2030C8 0 to 60 psi GG1560L8 GG1560C8 GG1560G8 GG1560F8 GG2060L4 GG2060C4 0 to 100 psi GG15100L8 GG15100C8 GG20100L4 GG20100C4 GG20100L8 GG20100C8 0 to 160 psi GG15160L8 GG15160C8 GG20160L4 GG20160C4 GG20160L8 GG20160C8 0 to 200 psi GG15200C8 GG20200C4 GG20200C8 0 to 300 psi GG20300C4 STANDARD RANGES & PART NUMBERS Consult Factory for additional ranges.

Open the catalog to page 1

Marsh Bellofram - Marsh Division - General Service Gauges - 2

10 General Service TYPE GENERAL SERVICE GAUGES Size 112" 2" Case Material Steel Steel Internals Copper Alloy Copper Alloy Mounting / Case Style LM UC CB LM LM CB CB Connection 18 NPT 18 NPT 18 NPT 18 NPT 14 NPT 18 NPT 14 NPT Scale Standard psi/kPa psi/kPa 0 to 30" Hg VAC J0405 J0505 J0605 J1105 J1405 J1805 J2005 30" Hg VAC to 15 psi 30" Hg VAC to 30 psi J1412 30" Hg VAC to 60 psi J1414 30" Hg VAC to 100 psi 30" Hg VAC to 150 psi J0418 J0518 J0618 J1118 J1418 J1818 J2018 30" Hg VAC to 200 psi J0420 J0520 J0620 J1120 J1420 J1820 J2020 30" Hg VAC to 300 psi J0424 J0524 J0624 J1124 J1424 J1824...

Open the catalog to page 2

Marsh Bellofram - Marsh Division - General Service Gauges - 4

12 General Service Dial Divisions General Service 3/2/3% of Span Ranges Figure Intervals Minor Gradua -tions Vacuum 5 1 COMPOUND 30" Hg VAC to 15 psi 10 5 2 1 30" Hg VAC to 30 psi 10 10 2 1 30" Hg VAC to 60 psi 10 10 2 2 30" Hg VAC to 150 psi 30 30 5 5 30" Hg VAC to 300 psi 30 50 – 10 PRESSURE 0 to 15 psi 3 0.2 0 to 30 psi 5 1 0 to 60 psi 10 1 0 to 100 psi 10 2 0 to 160 psi 20 2 0 to 200 psi 50 4 0 to 300 psi 50 5 0 to 400 psi 50 5 0 to 600 psi 50 10 HIGH PRESSURE 0 to 1,000 psi 200 20 0 to 1,500 psi 300 20 0 to 2,000 psi 400 40 0 to 3,000 psi 500 100 0 to 4,000 psi 1,000 100 0 to 5,000 psi...
