Group: Marsh Bellofram
Catalog excerpts

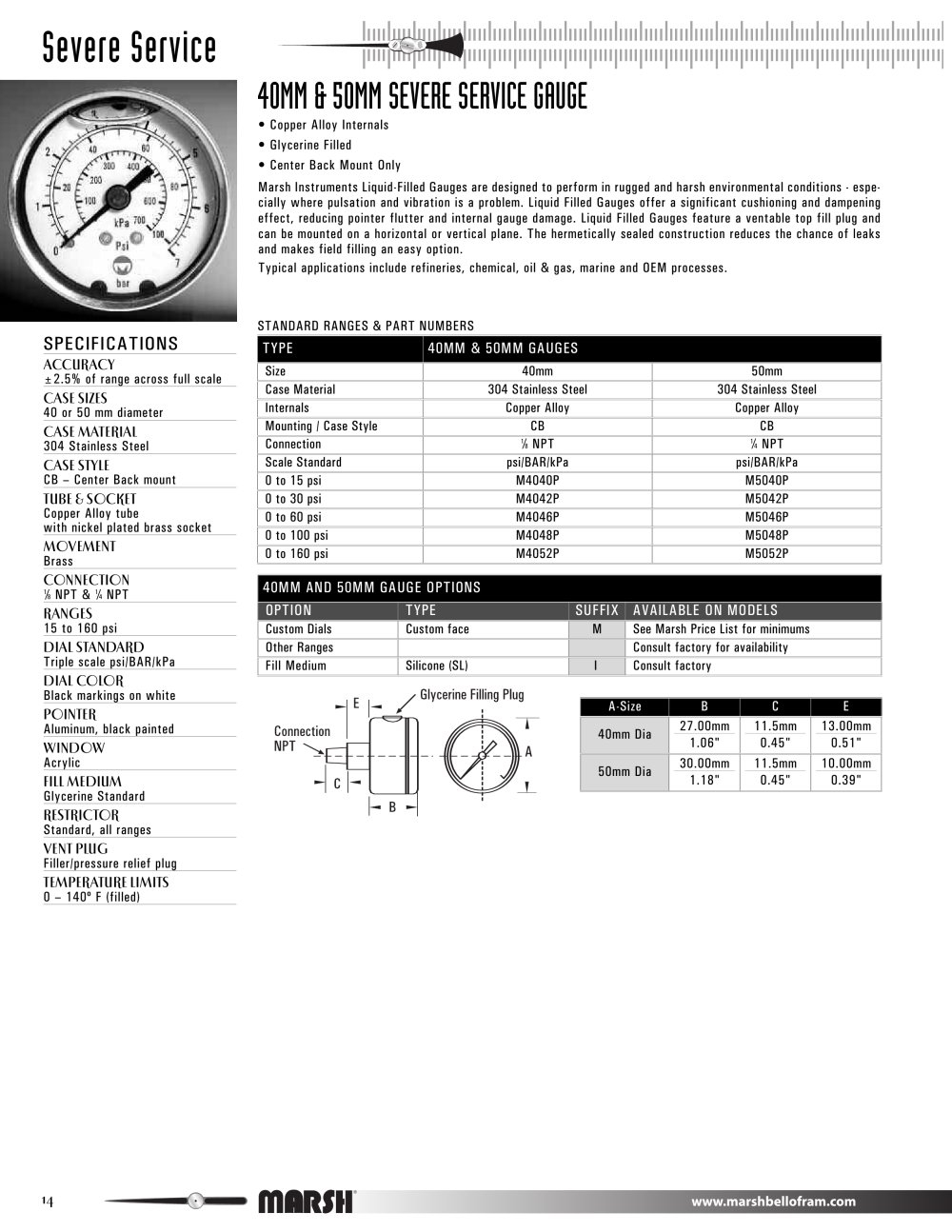

14 Severe Service SPECIFICATIONS ACCURACY ±2.5% of range across full scale CASE SIZES 40 or 50 mm diameter CASE MATERIAL 304 Stainless Steel CASE STYLE CB – Center Back mount TUBE & SOCKET Copper Alloy tube with nickel plated brass socket MOVEMENT Brass CONNECTION 18 NPT & 14 NPT RANGES 15 to 160 psi DIAL STANDARD Triple scale psi/BAR/kPa DIAL COLOR Black markings on white POINTER Aluminum, black painted WINDOW Acrylic FILL MEDIUM Glycerine Standard RESTRICTOR Standard, all ranges VENT PLUG Filler/pressure relief plug TEMPERATURE LIMITS 0 – 140º F (filled) TYPE 40MM & 50MM GAUGES Size 40mm 50mm Case Material 304 Stainless Steel 304 Stainless Steel Internals Copper Alloy Copper Alloy Mounting / Case Style CB CB Connection 18 NPT 14 NPT Scale Standard psi/BAR/kPa psi/BAR/kPa 0 to 15 psi M4040P M5040P 0 to 30 psi M4042P M5042P 0 to 60 psi M4046P M5046P 0 to 100 psi M4048P M5048P 0 to 160 psi M4052P M5052P 40MM & 50MM SEVERE SERVICE GAUGE • Copper Alloy Internals • Glycerine Filled • Center Back Mount Only Marsh Instruments Liquid-Filled Gauges are designed to perform in rugged and harsh environmental conditions - especially where pulsation and vibration is a problem. Liquid Filled Gauges offer a significant cushioning and dampening effect, reducing pointer flutter and internal gauge damage. Liquid Filled Gauges feature a ventable top fill plug and can be mounted on a horizontal or vertical plane. The hermetically sealed construction reduces the chance of leaks and makes field filling an easy option. Typical applications include refineries, chemical, oil & gas, marine and OEM processes. STANDARD RANGES & PART NUMBERS 40MM AND 50MM GAUGE OPTIONS OPTION TYPE SUFFIX AVAILABLE ON MODELS Custom Dials Custom face M See Marsh Price List for minimums Other Ranges Consult factory for availability Fill Medium Silicone (SL) I Consult factory A-Size B C E 40mm Dia 27.00mm 1.06" 11.5mm 0.45" 13.00mm 0.51" 50mm Dia 30.00mm 1.18" 11.5mm 0.45" 10.00mm 0.39"
Open the catalog to page 115 Severe Service SPECIFICATIONS ACCURACY ASME Grade B – ±3/2/3% (±2% of range across middle half of scale) CASE SIZES 63mm (2.47") diameter CASE MATERIAL 304 Stainless Steel CASE STYLE Rolled ring, hermetically sealed case CB – Center Back Mount LM – Lower Mount UC – U-Clamp Mount TUBE & SOCKET Copper alloy or 316 stainless steel MOVEMENT Brass CONNECTION 14 NPT RANGES 0 to 30" Hg VAC; Compound 30" Hg to 400 psi; 15 to 10,000 psi DIAL STANDARD Dual scale psi and kPa DIAL COLOR Black markings on white POINTER Aluminum, black painted WINDOW Polycarbonate FILL MEDIUM Glycerine Standard...
Open the catalog to page 216 Severe Service front flange mount H 120… 120… G J .12 [3.0] L1 .000 TO .365 [9.3] PANEL VARIANCE 1.36 [34.5] K A .24 [6.1] .88 [22.4] 1.04 [26.4] C L Gauge Size Connection A C G H K J L L1 63mm 14" 2.66" 68mm 1.03" 26mm 2.95" 75mm 0.15" 4mm 0.56" 14mm 3.35 85mm 2.43" 62mm 2.5" 64mm Dimension Table 63MM SEVERE SERVICE GAUGE OPTIONS OPTION TYPE SUFFIX AVAILABLE ON MODELS Fill Medium Dry (no fill) Delete suffix P All models Silicone (SL) I All models Front Flange Adapter ring (3 hole) R1 Center Back & U-Clamp only (factory Installed) Adapter ring (no holes) R2 U-Clamp only (factory...
Open the catalog to page 317 Severe Service 100MM SEVERE SERVICE GAUGE • Brass or Stainless Steel Internals • Ranges to 10,000 psi • Glycerine Filled Marsh Instruments Liquid Filled Gauges are designed to perform in rugged applications and harsh environmental conditions - especially where pulsation and vibration are a problem. Liquid Filled Gauges offer a significant cushioning and dampening effect, reducing pointer flutter and internal gauge damage; also lubricating the internals, and reducing corrosion. All stainless steel Liquid Filled Gauges feature a ventable top fill plug for pressure relief and ease of...
Open the catalog to page 418 Severe Service 120º G H 120º J L1 .14 (3.6) K 1.20 .000 TO .365 [9.3] [30.5] PANEL VARIANCE A .30 [7.6] 1.04 [26.4] .88 [22.4] C L Gauge Size Connection A C G H K J L L1 100mm 14" 3.90" 99mm 1.03" 26mm 4.57" 116mm 0.19" 5mm 9/16" 14mm 5.20" 132mm 3.62" 92mm 3.68" 94mm Dimension Table U-Clamp Front Flange 100MM SEVERE SERVICE GAUGE OPTIONS OPTION TYPE SUFFIX AVAILABLE ON MODELS Fill Medium Dry (no fill) Delete suffix P All models Silicone (SL) I All models Front Flange Adapter Ring (3 hole) R U-Clamp & Center Back only (factory installed) Catalog Dials psi only E See Marsh Price List for...
Open the catalog to page 519 Severe Service TYPE 63MM BRASS 100MM BRASS Size 63mm 100mm Case Material Forged Brass Forged Brass Internals Copper Alloy Copper Alloy Mounting / Case Style LM LM Connection 14 NPT 12 NPT Scale Standard psi psi 0 to 30" Hg VAC W9005PE W9405PE 30" Hg VAC to 30 psi W9012PE W9412PE 30" Hg VAC to 60 psi W9014PE W9414PE 30" Hg VAC to 100 psi W9016PE W9416PE 30" Hg VAC to 200 psi W9020PE W9420PE 0 to 15 psi W9040PE W9440PE 0 to 30 psi W9042PE W9442PE 0 to 60 psi W9046PE W9446PE 0 to 100 psi W9048PE W9448PE 0 to 160 psi W9052PE W9452PE 0 to 200 psi W9054PE W9454PE 0 to 300 psi W9058PE W9458PE 0...
