Marsh Bellofram Diversified Electronics Division UPA130 Series Voltage Alert Flyer

Marsh Bellofram Diversified Electronics Division UPA130 Series Voltage Alert Flyer

Product catalog summary

Overview
The UPA Voltage Alert is designed to enhance safety by reducing the risk of electrical arc flash and electrocution. It is ideal for Lockout/Tagout procedures and enhances compliance with NFPA 70E and OSHA standards. The device detects stored energy and indicates hazardous conditions through LED flashes.

Specifications

Operational Range: 40 to 750 VAC (single or 3-phase), 30 to 1000 VDC.
Maximum Rated Voltage: 750 VAC/1000 VDC.
Detection Thresholds: 29 VAC for 3-phase, 40 VAC for single-phase, 27 VDC typical cutoff.
Power Consumption: Approximately 1.2 Watts at 750 VAC.
Temperature Rating: Operates from -4° to 131°F (-20° to +55°C); storage from -40° to 185°F (-40° to +85°C).
Enclosure: Totally encapsulated for environmental protection, UL TYPE 4X.
Terminations: Four 8ft, 18 AWG 1000V, UL-1452 wires.
Weight: 7 oz.

Features

Verification of stored energy inside a panel.
Fits 30mm knockout.
Redundant circuitry ensures reliability.
Visual alerts for dangerous AC or DC potentials.

Indicator Flash Rates
The device provides visual alerts with varying flash rates depending on the voltage level for both AC and DC potentials.

Applications
The UPA Voltage Alert is suitable for use in MCC & MCC buckets, circuit breaker disconnects without visible blades, panels with multiple power sources, and mechanical LOTO applications.

Ordering Information
Model UPA-130 is available with accessories such as ANSI warning plates and flush mounting kits.

Catalog excerpts

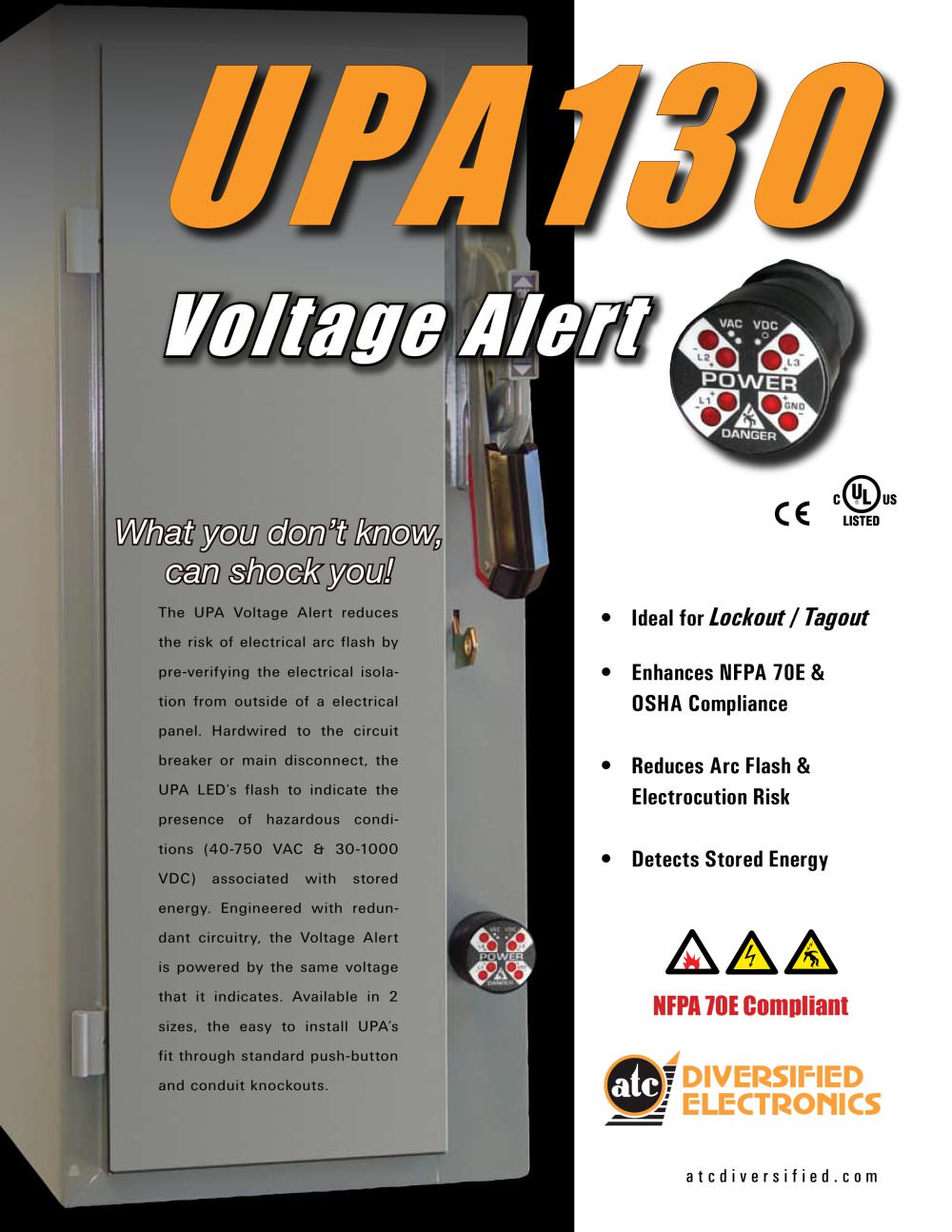

Marsh Bellofram Diversified Electronics Division UPA130 Series Voltage Alert Flyer-1

• Ideal for Lockout / Tagout • Enhances NFPA 70E & OSHA Compliance • Reduces Arc Flash & Electrocution Risk • Detects Stored Energy The UPA Voltage Alert reduces the risk of electrical arc flash by pre-verifying the electrical isolation from outside of a electrical panel. Hardwired to the circuit breaker or main disconnect, the UPA LED’s flash to indicate the presence of hazardous conditions (40-750 VAC & 30-1000 VDC) associated with stored energy. Engineered with redundant circuitry, the Voltage Alert is powered by the same voltage that it indicates. Available in 2 sizes, the easy to install UPA’s fit through standard push-button and conduit knockouts. What you don’t know, can shock you! Voltage Alert UPA130 a t c d i v e r s i f i e d . c o m NFPA 70E Compliant
