Marsh Bellofram Diversified Electronics Division UPA-130 Series 30mm Universal Power Alert

Marsh Bellofram Diversified Electronics Division UPA-130 Series 30mm Universal Power Alert
2Pages

Catalog excerpts

Marsh Bellofram Diversified Electronics Division UPA-130 Series 30mm Universal Power Alert - 1

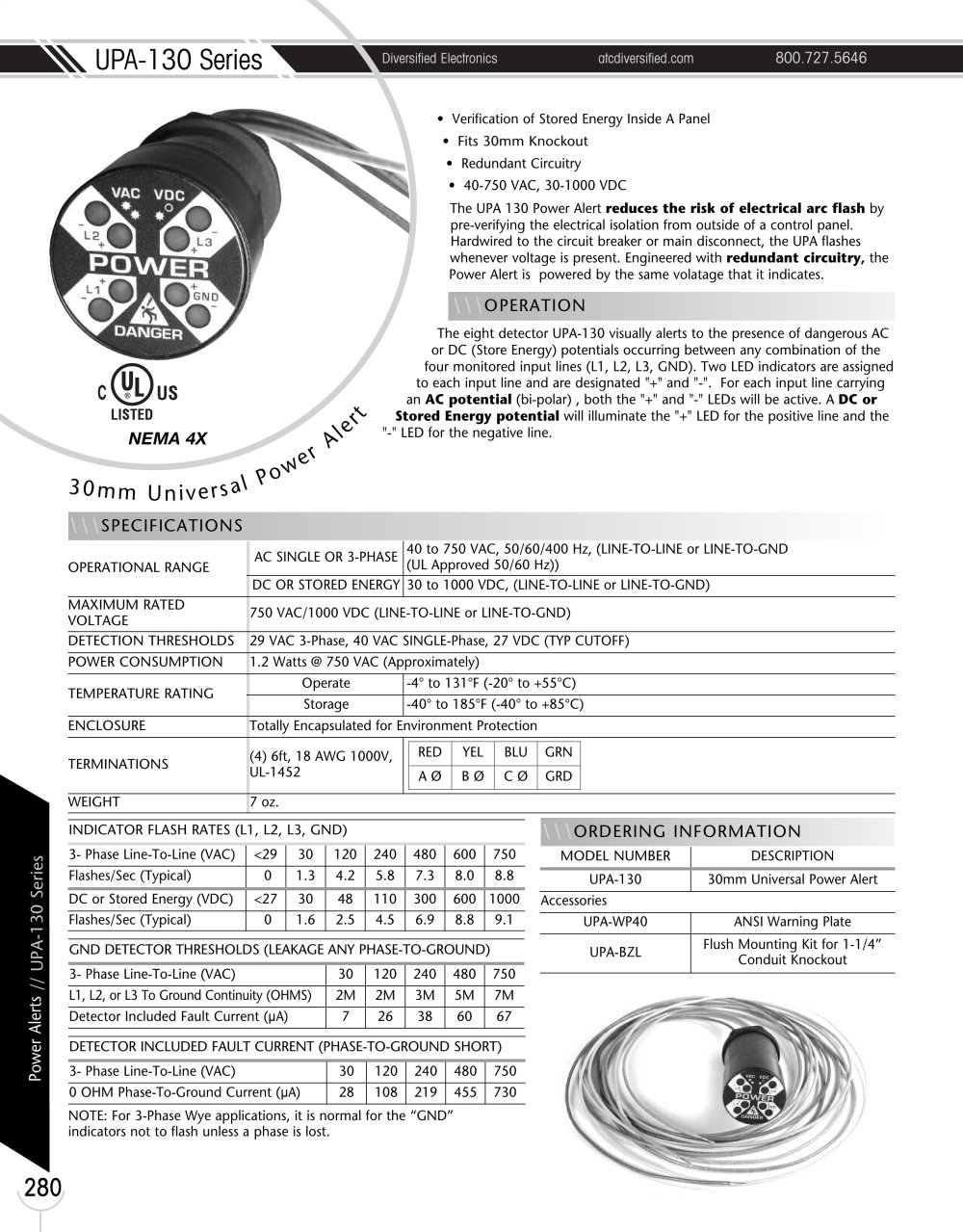

NOTE: For 3-Phase Wye applications, it is normal for the “GND” indicators not to flash unless a phase is lost. \\\ORDERING INFORMATION MODEL NUMBER DESCRIPTION UPA-130 30mm Universal Power Alert Accessories UPA-WP40 ANSI Warning Plate UPA-BZL Flush Mounting Kit for 1-1/4” Conduit Knockout DETECTOR INCLUDED FAULT CURRENT (PHASE-TO-GROUND SHORT) 3- Phase Line-To-Line (VAC) 30 120 240 480 750 0 OHM Phase-To-Ground Current (µA) 28 108 219 455 730 GND DETECTOR THRESHOLDS (LEAKAGE ANY PHASE-TO-GROUND) 3- Phase Line-To-Line (VAC) 30 120 240 480 750 L1, L2, or L3 To Ground Continuity (OHMS) 2M 2M 3M 5M 7M Detector Included Fault Current (µA) 7 26 38 60 67 INDICATOR FLASH RATES (L1, L2, L3, GND) 3- Phase Line-To-Line (VAC) <29 30 120 240 480 600 750 Flashes/Sec (Typical) 0 1.3 4.2 5.8 7.3 8.0 8.8 DC or Stored Energy (VDC) <27 30 48 110 300 600 1000 Flashes/Sec (Typical) 0 1.6 2.5 4.5 6.9 8.8 9.1 \\\SPECIFICATIONS OPERATIONAL RANGE AC SINGLE OR 3-PHASE 40 to 750 VAC, 50/60/400 Hz, (LINE-TO-LINE or LINE-TO-GND (UL Approved 50/60 Hz)) DC OR STORED ENERGY 30 to 1000 VDC, (LINE-TO-LINE or LINE-TO-GND) MAXIMUM RATED VOLTAGE 750 VAC/1000 VDC (LINE-TO-LINE or LINE-TO-GND) DETECTION THRESHOLDS 29 VAC 3-Phase, 40 VAC SINGLE-Phase, 27 VDC (TYP CUTOFF) POWER CONSUMPTION 1.2 Watts @ 750 VAC (Approximately) TEMPERATURE RATING Operate -4° to 131°F (-20° to +55°C) Storage -40° to 185°F (-40° to +85°C) ENCLOSURE Totally Encapsulated for Environment Protection TERMINATIONS (4) 6ft, 18 AWG 1000V, UL-1452 RED YEL BLU GRN A Ø B Ø C Ø GRD WEIGHT 7 oz. UPA-130 Series Diversified Electronics atcdiversified.com 800.727.5646 280 Power Alerts // UPA-130 Series • Verification of Stored Energy Inside A Panel • Fits 30mm Knockout • Redundant Circuitry • 40-750 VAC, 30-1000 VDC The UPA 130 Power Alert reduces the risk of electrical arc flash by pre-verifying the electrical isolation from outside of a control panel. Hardwired to the circuit breaker or main disconnect, the UPA flashes whenever voltage is present. Engineered with redundant circuitry, the Power Alert is powered by the same volatage that it indicates. The eight detector UPA-130 visually alerts to the presence of dangerous AC or DC (Store Energy) potentials occurring between any combination of the four monitored input lines (L1, L2, L3, GND). Two LED indicators are assigned to each input line and are designated "+" and "-". For each input line carrying an AC potential (bi-polar) , both the "+" and "-" LEDs will be active. A DC or Stored Energy potential will illuminate the "+" LED for the positive line and the "-" LED for the negative line. 3 0 m m U n i v er s a l P ow er Al e r t NEMA 4X \\\OPERATION
