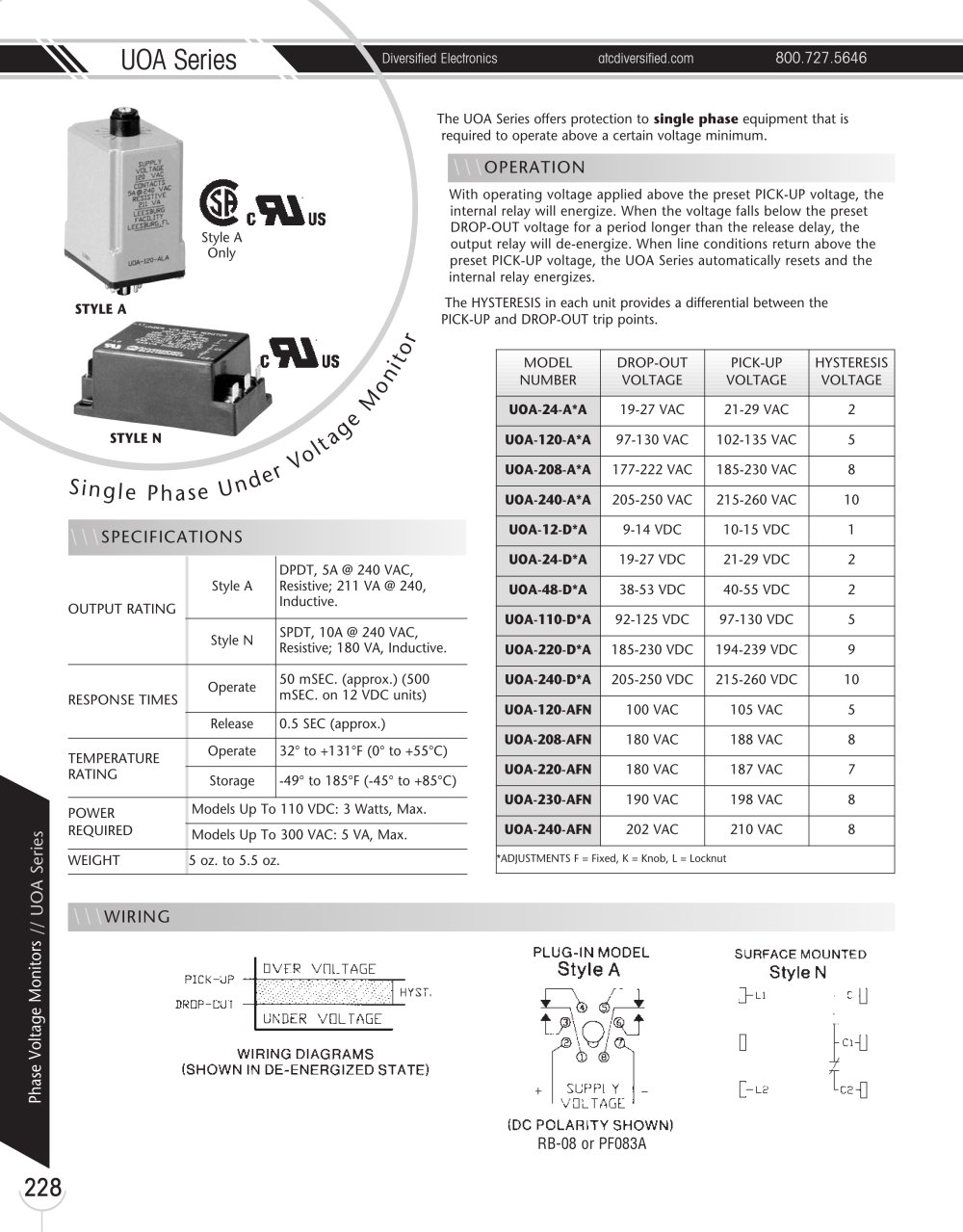

UOA Series Diversified Electronics atcdiversified.com 800.727.5646 228 Phase Voltage Monitors // UOA Series The UOA Series offers protection to single phase equipment that is required to operate above a certain voltage minimum. With operating voltage applied above the preset PICK-UP voltage, the internal relay will energize. When the voltage falls below the preset DROP-OUT voltage for a period longer than the release delay, the output relay will de-energize. When line conditions return above the preset PICK-UP voltage, the UOA Series automatically resets and the internal relay energizes. The HYSTERESIS in each unit provides a differential between the PICK-UP and DROP-OUT trip points. S i n g l e P h a s e U n d e r V o l t age Moni tor Style A Only MODEL NUMBER DROP-OUT VOLTAGE PICK-UP VOLTAGE HYSTERESIS VOLTAGE UOA-24-A*A 19-27 VAC 21-29 VAC 2 UOA-120-A*A 97-130 VAC 102-135 VAC 5 UOA-208-A*A 177-222 VAC 185-230 VAC 8 UOA-240-A*A 205-250 VAC 215-260 VAC 10 UOA-12-D*A 9-14 VDC 10-15 VDC 1 UOA-24-D*A 19-27 VDC 21-29 VDC 2 UOA-48-D*A 38-53 VDC 40-55 VDC 2 UOA-110-D*A 92-125 VDC 97-130 VDC 5 UOA-220-D*A 185-230 VDC 194-239 VDC 9 UOA-240-D*A 205-250 VDC 215-260 VDC 10 UOA-120-AFN 100 VAC 105 VAC 5 UOA-208-AFN 180 VAC 188 VAC 8 UOA-220-AFN 180 VAC 187 VAC 7 UOA-230-AFN 190 VAC 198 VAC 8 UOA-240-AFN 202 VAC 210 VAC 8 *ADJUSTMENTS F = Fixed, K = Knob, L = Locknut STYLE A RB-08 or PF083A STYLE N \\\OPERATION \\\WIRING \\\SPECIFICATIONS OUTPUT RATING Style A DPDT, 5A @ 240 VAC, Resistive; 211 VA @ 240, Inductive. Style N SPDT, 10A @ 240 VAC, Resistive; 180 VA, Inductive. RESPONSE TIMES Operate 50 mSEC. (approx.) (500 mSEC. on 12 VDC units) Release 0.5 SEC (approx.) TEMPERATURE RATING Operate 32° to +131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) POWER REQUIRED Models Up To 110 VDC: 3 Watts, Max. Models Up To 300 VAC: 5 VA, Max. WEIGHT 5 oz. to 5.5 oz.
