Marsh Bellofram Diversified Electronics Division TSH Series Delayed Interval Solid-State Output

Marsh Bellofram Diversified Electronics Division TSH Series Delayed Interval Solid-State Output

Product catalog summary

Overview: The TSH Series Delayed Interval Solid-State Output timer is designed to control the timing of electrical loads. It operates by initiating an OFF time upon application of voltage, followed by an ON time, and then de-energizing the load to complete the cycle. The OFF and ON times are independently adjustable.

Specifications:

Supply Voltage: Available in 24, 120, or 240 VAC, 50/60 Hz with a tolerance of ±10%.
Output Rating: Solid-state, SPST-N.O. with a 1 amp resistive load capacity, 1250 VA inrush, and 125 VA run at 120 VAC inductive.
Timing Ranges: Virtually unlimited with standard ranges available on page 84.
Timing Tolerances: Minimum setting +0–20%, Maximum setting ±10%.
Repeatability: 1% maximum with no first cycle effect.
Reset Times: 100 mSEC before timeout, 50 mSEC after timeout.
Recycle Time: 40 mSEC.
Duty Cycle: Continuous operation.
Enclosure: Surface mounted and encapsulated with high-quality epoxy for environmental protection.
Temperature Rating: Operating range from 32° to 131°F (0° to +55°C), storage range from -49° to 185°F (-45° to +85°C).
Terminations: 1/4" quick disconnect terminals.
Weight: Net weight is 0.96 oz, shipping weight is 1.28 oz.

Operation: The timer's operation involves applying voltage to initiate the OFF time, followed by the ON time, and then de-energizing the load. Resetting can be done by removing the input voltage during or after the time periods.

Model Number Example: TSH-120-AFC-015 indicates a delayed interval timer with 120 VAC supply voltage and both delays fixed at 15 seconds, UL Recognized.

Catalog excerpts

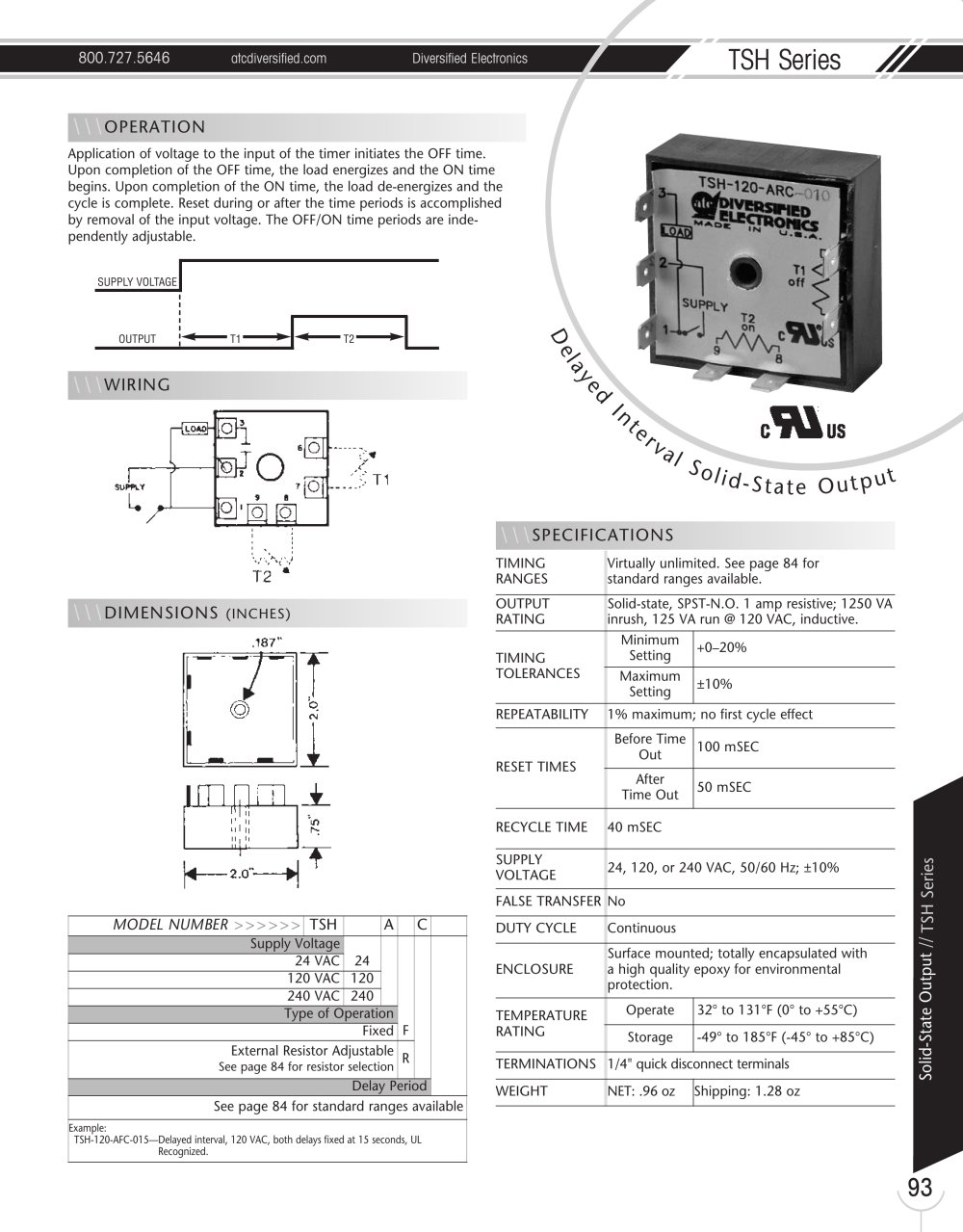

Marsh Bellofram Diversified Electronics Division TSH Series Delayed Interval Solid-State Output-1

800.727.5646 atcdiversified.com Diversified Electronics TSH Series Solid-State Output // TSH Series 93 Dela yed I n t e r v a l So l i d - S ta t e Ou t p ut Application of voltage to the input of the timer initiates the OFF time. Upon completion of the OFF time, the load energizes and the ON time begins. Upon completion of the ON time, the load de-energizes and the cycle is complete. Reset during or after the time periods is accomplished by removal of the input voltage. The OFF/ON time periods are independently adjustable. SUPPLY VOLTAGE OUTPUT T1 T2 \\\WIRING \\\DIMENSIONS (INCHES) \\\SPECIFICATIONS TIMING RANGES Virtually unlimited. See page 84 for standard ranges available. OUTPUT RATING Solid-state, SPST-N.O. 1 amp resistive; 1250 VA inrush, 125 VA run @ 120 VAC, inductive. TIMING TOLERANCES Minimum Setting +0–20% Maximum Setting ±10% REPEATABILITY 1% maximum; no first cycle effect RESET TIMES Before Time Out 100 mSEC After Time Out 50 mSEC RECYCLE TIME 40 mSEC SUPPLY VOLTAGE 24, 120, or 240 VAC, 50/60 Hz; ±10% FALSE TRANSFER No DUTY CYCLE Continuous ENCLOSURE Surface mounted; totally encapsulated with a high quality epoxy for environmental protection. TEMPERATURE RATING Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) TERMINATIONS 1/4" quick disconnect terminals WEIGHT NET: .96 oz Shipping: 1.28 oz MODEL NUMBER >>>>>> TSH A C Supply Voltage 24 F 24 VAC 120 VAC 120 240 VAC 240 Type of Operation Fixed External Resistor Adjustable See page 84 for resistor selection R Delay Period See page 84 for standard ranges available Example: TSH-120-AFC-015—Delayed interval, 120 VAC, both delays fixed at 15 seconds, UL Recognized. \\\OPERATION
