Marsh Bellofram Diversified Electronics Division TSG-Series Repeat Cycle ON-Time First Solid-State Output

Marsh Bellofram Diversified Electronics Division TSG-Series Repeat Cycle ON-Time First Solid-State Output
1 /1Page

Catalog excerpts

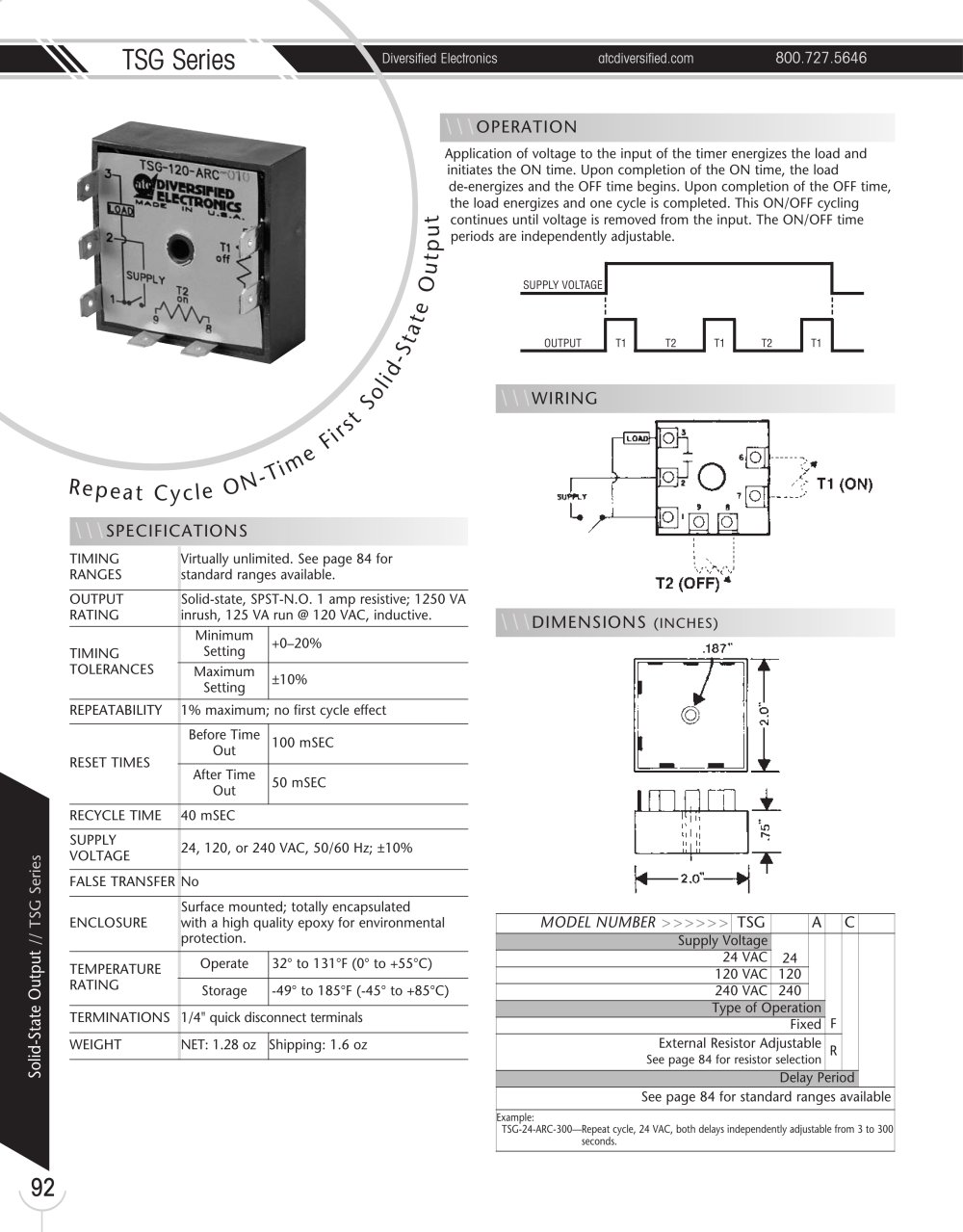

Solid-State Output // TSG Series TSG Series Diversified Electronics atcdiversified.com 800.727.5646 92 Application of voltage to the input of the timer energizes the load and initiates the ON time. Upon completion of the ON time, the load de-energizes and the OFF time begins. Upon completion of the OFF time, the load energizes and one cycle is completed. This ON/OFF cycling continues until voltage is removed from the input. The ON/OFF time periods are independently adjustable. R e p e a t C y c l e O N - T ime F i r s t Sol id-State Output SUPPLY VOLTAGE OUTPUT T1 T2 T1 T2 T1 \\\WIRING \\\DIMENSIONS (INCHES) MODEL NUMBER >>>>>> TSG A C Supply Voltage 24 F 24 VAC 120 VAC 120 240 VAC 240 Type of Operation Fixed External Resistor Adjustable See page 84 for resistor selection R Delay Period See page 84 for standard ranges available Example: TSG-24-ARC-300—Repeat cycle, 24 VAC, both delays independently adjustable from 3 to 300 seconds. \\\SPECIFICATIONS TIMING RANGES Virtually unlimited. See page 84 for standard ranges available. OUTPUT RATING Solid-state, SPST-N.O. 1 amp resistive; 1250 VA inrush, 125 VA run @ 120 VAC, inductive. TIMING TOLERANCES Minimum Setting +0–20% Maximum Setting ±10% REPEATABILITY 1% maximum; no first cycle effect RESET TIMES Before Time Out 100 mSEC After Time Out 50 mSEC RECYCLE TIME 40 mSEC SUPPLY VOLTAGE 24, 120, or 240 VAC, 50/60 Hz; ±10% FALSE TRANSFER No ENCLOSURE Surface mounted; totally encapsulated with a high quality epoxy for environmental protection. TEMPERATURE RATING Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) TERMINATIONS 1/4" quick disconnect terminals WEIGHT NET: 1.28 oz Shipping: 1.6 oz \\\OPERATION
