Marsh Bellofram Diversified Electronics Division TSE Series Single Shot Solid-State Output

Marsh Bellofram Diversified Electronics Division TSE Series Single Shot Solid-State Output

Product catalog summary

Overview: The TSE Series from Diversified Electronics is a solid-state output timer designed for controlling loads with a single shot operation. It is activated by an external isolated switch and deactivates after a preset delay period.

Specifications:

Supply Voltage: Available in 24 VAC, 120 VAC, and 240 VAC.
Output Rating: Solid-state, SPST-N.O. with 1 amp resistive capacity, 1250 VA inrush, and 125 VA run at 120 VAC inductive.
Timing Ranges: Virtually unlimited with standard ranges available on page 84.
Timing Tolerances: Minimum setting +0–20%, Maximum setting ±10%.
Repeatability: 1% maximum with no first cycle effect.
Reset Times: 100 mSEC before time out, 50 mSEC after time out.
Recycle Time: 40 mSEC.
Supply Voltage Tolerance: ±10% at 50/60 Hz.
False Transfer: No.
Duty Cycle: Continuous.
Enclosure: Surface mounted and encapsulated with high-quality epoxy for environmental protection.
Temperature Rating: Operating range from 32° to 131°F (0° to +55°C), storage range from -49° to 185°F (-45° to +85°C).
Terminations: 1/4" quick disconnect terminals.
Weight: Net weight is 1.28 oz, shipping weight is 1.6 oz.

Operation: The timer is continuously powered, and the load is controlled by an external switch. When the switch is closed, the load energizes and the delay period begins. After the delay, the load de-energizes.

Example Model: TSE-120-AFC-180 indicates a single shot timer with 120 VAC supply and a fixed delay of 180 seconds.

Catalog excerpts

Marsh Bellofram Diversified Electronics Division TSE Series Single Shot Solid-State Output -1

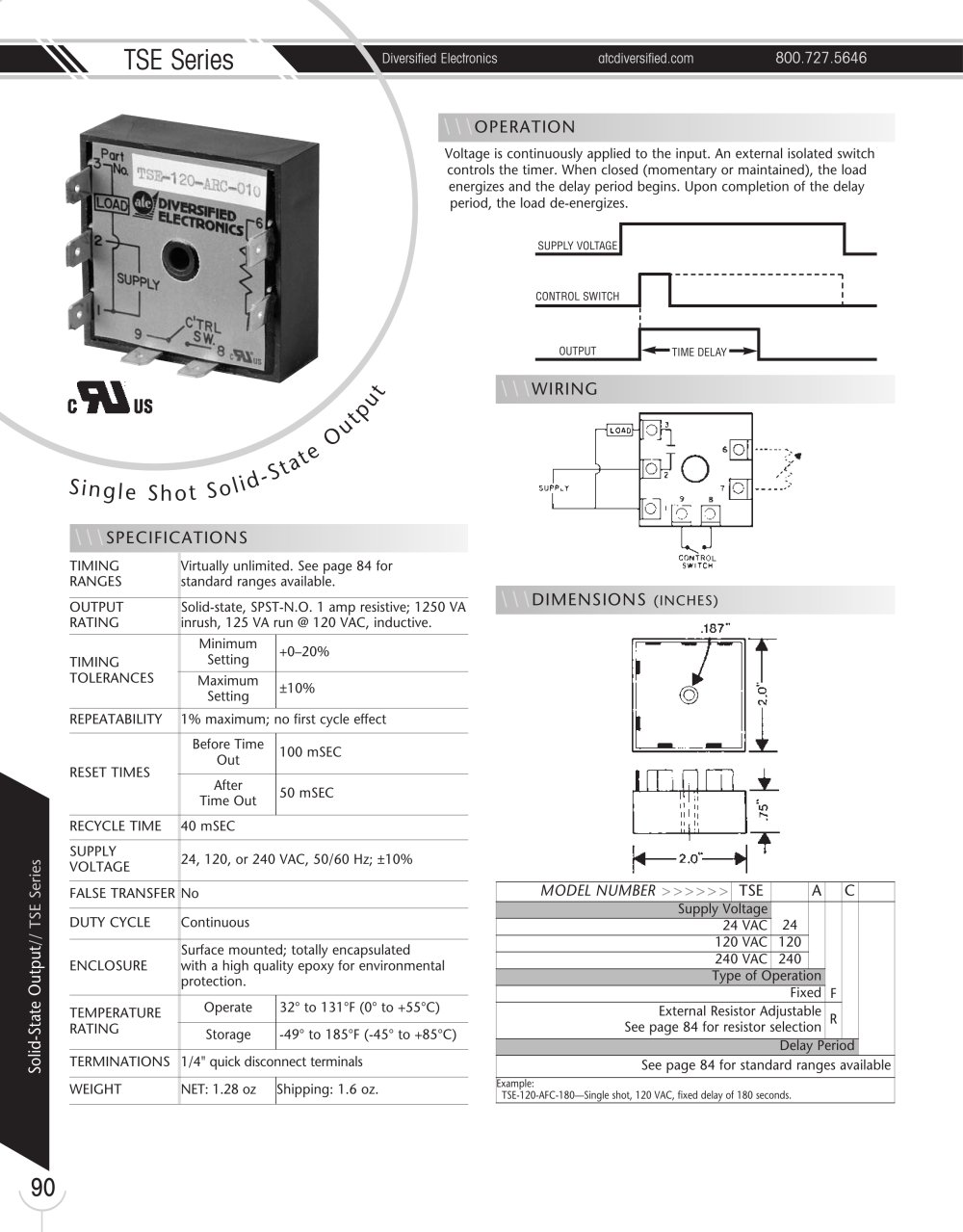

Solid-State Output// TSE Series TSE Series Diversified Electronics atcdiversified.com 800.727.5646 90 Voltage is continuously applied to the input. An external isolated switch controls the timer. When closed (momentary or maintained), the load energizes and the delay period begins. Upon completion of the delay period, the load de-energizes. S i n g l e S h o t So l i d - S ta t e Output SUPPLY VOLTAGE OUTPUT CONTROL SWITCH TIME DELAY \\\WIRING \\\DIMENSIONS (INCHES) MODEL NUMBER >>>>>> TSE A C Supply Voltage 24 F 24 VAC 120 VAC 120 240 VAC 240 Type of Operation Fixed External Resistor Adjustable See page 84 for resistor selection R Delay Period See page 84 for standard ranges available Example: TSE-120-AFC-180—Single shot, 120 VAC, fixed delay of 180 seconds. \\\SPECIFICATIONS TIMING RANGES Virtually unlimited. See page 84 for standard ranges available. OUTPUT RATING Solid-state, SPST-N.O. 1 amp resistive; 1250 VA inrush, 125 VA run @ 120 VAC, inductive. TIMING TOLERANCES Minimum Setting +0–20% Maximum Setting ±10% REPEATABILITY 1% maximum; no first cycle effect RESET TIMES Before Time Out 100 mSEC After Time Out 50 mSEC RECYCLE TIME 40 mSEC SUPPLY VOLTAGE 24, 120, or 240 VAC, 50/60 Hz; ±10% FALSE TRANSFER No DUTY CYCLE Continuous ENCLOSURE Surface mounted; totally encapsulated with a high quality epoxy for environmental protection. TEMPERATURE RATING Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) TERMINATIONS 1/4" quick disconnect terminals WEIGHT NET: 1.28 oz Shipping: 1.6 oz. \\\OPERATION
