Marsh Bellofram Diversified Electronics Division TSD Series OFF-Delay Solid-State Output

Marsh Bellofram Diversified Electronics Division TSD Series OFF-Delay Solid-State Output

Product catalog summary

Overview: The TSD Series 89 is a solid-state output device designed for off-delay timing applications. It operates by maintaining a continuous voltage input, with an external isolated switch controlling the timer. The load is energized when the switch is closed and de-energized after the delay period once the switch is opened.

Specifications:

Supply Voltage: Available in 120 or 240 VAC, 50/60 Hz with a tolerance of ±10%.
Output Rating: Solid-state, SPST-N.O. with 1 amp resistive; 1250 VA inrush, 125 VA run at 120 VAC, inductive.
Timing Ranges: Virtually unlimited, with standard ranges available on page 84.
Timing Tolerances: Minimum setting +0–20%, maximum setting ±10%.
Repeatability: 1% maximum, with no first cycle effect.
Reset Times: 100 mSEC before timeout, 50 mSEC after timeout.
Recycle Time: 40 mSEC.
Duty Cycle: Continuous.
Enclosure: Surface mounted and encapsulated with high-quality epoxy for environmental protection.
Temperature Rating: Operating range from 32° to 131°F (0° to +55°C), storage range from -49° to 185°F (-45° to +85°C).
Terminations: 1/4" quick disconnect terminals.
Weight: Net weight is 0.96 oz, shipping weight is 1.28 oz.

Operation: The device functions by energizing the load when the control switch is closed. Opening the switch starts the delay period, after which the load de-energizes. If the switch is reclosed during the delay, the timer resets to zero.

Model Numbering: The model number includes supply voltage, type of operation (fixed or external resistor adjustable), and delay period. An example model number is TSD-120-ARC-200, indicating a delay on release, 120 VAC, with an external resistor adjustable from 2 to 200 seconds.

Catalog excerpts

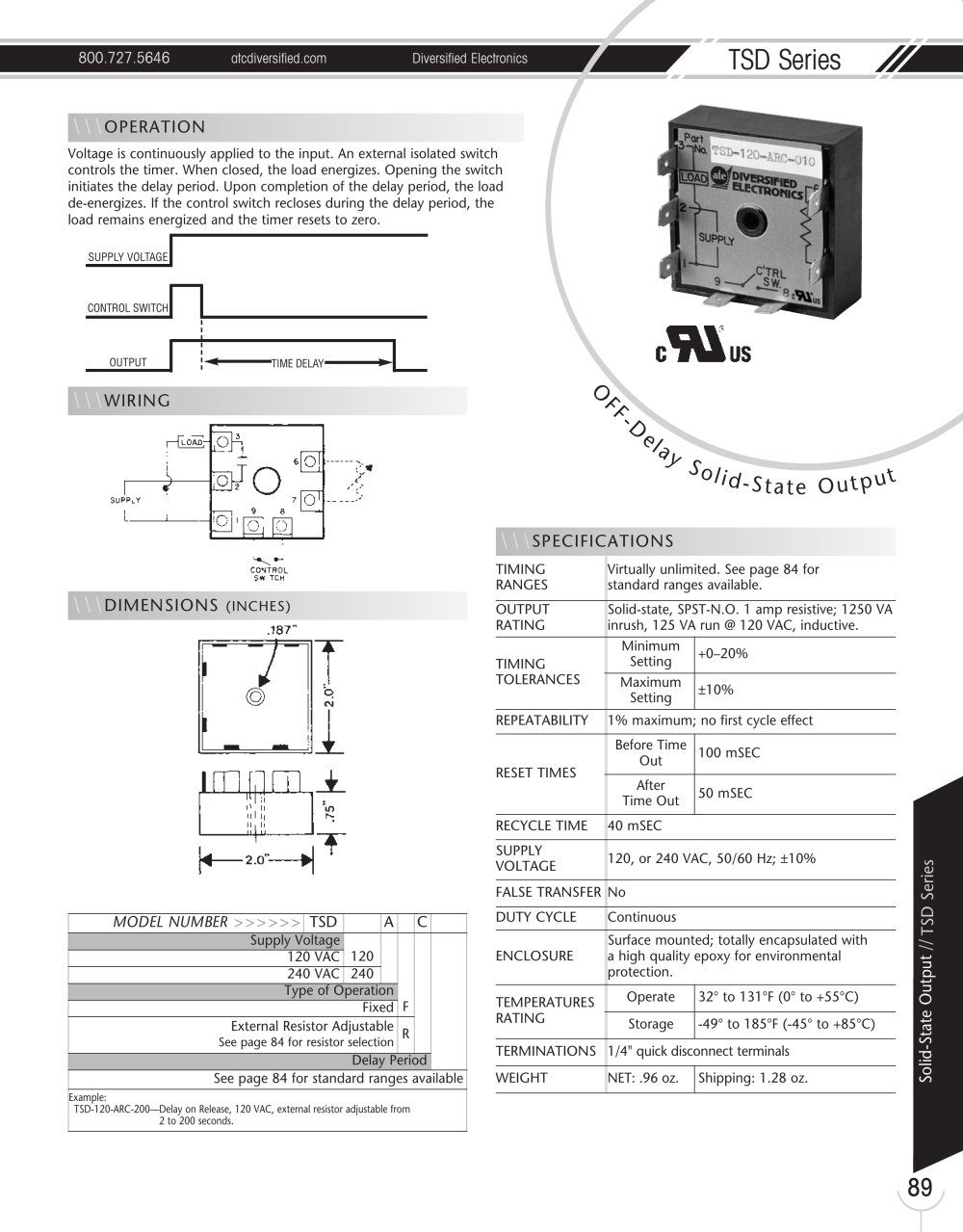

Marsh Bellofram Diversified Electronics Division TSD Series OFF-Delay Solid-State Output -1

800.727.5646 atcdiversified.com Diversified Electronics TSD Series Solid-State Output // TSD Series 89 OF F -De lay So l i d - S ta t e Ou t p ut Voltage is continuously applied to the input. An external isolated switch controls the timer. When closed, the load energizes. Opening the switch initiates the delay period. Upon completion of the delay period, the load de-energizes. If the control switch recloses during the delay period, the load remains energized and the timer resets to zero. SUPPLY VOLTAGE OUTPUT CONTROL SWITCH TIME DELAY \\\WIRING \\\DIMENSIONS (INCHES) \\\SPECIFICATIONS TIMING RANGES Virtually unlimited. See page 84 for standard ranges available. OUTPUT RATING Solid-state, SPST-N.O. 1 amp resistive; 1250 VA inrush, 125 VA run @ 120 VAC, inductive. TIMING TOLERANCES Minimum Setting +0–20% Maximum Setting ±10% REPEATABILITY 1% maximum; no first cycle effect RESET TIMES Before Time Out 100 mSEC After Time Out 50 mSEC RECYCLE TIME 40 mSEC SUPPLY VOLTAGE 120, or 240 VAC, 50/60 Hz; ±10% FALSE TRANSFER No DUTY CYCLE Continuous ENCLOSURE Surface mounted; totally encapsulated with a high quality epoxy for environmental protection. TEMPERATURES RATING Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) TERMINATIONS 1/4" quick disconnect terminals WEIGHT NET: .96 oz. Shipping: 1.28 oz. MODEL NUMBER >>>>>> TSD A C Supply Voltage 120 F 120 VAC 240 VAC 240 Type of Operation Fixed External Resistor Adjustable See page 84 for resistor selection R Delay Period See page 84 for standard ranges available Example: TSD-120-ARC-200—Delay on Release, 120 VAC, external resistor adjustable from 2 to 200 seconds. \\\OPERATION
