Marsh Bellofram Diversified Electronics Division TSC Series ON-Delay Solid-State Output

Marsh Bellofram Diversified Electronics Division TSC Series ON-Delay Solid-State Output

Product catalog summary

Overview: The TSC Series from Diversified Electronics is a solid-state output timer designed for high-speed, continuous operation. The timer initiates a delay when power is applied, and the load is energized upon completion of this delay. Resetting can be done by removing the input voltage, and the device is designed to prevent false transfers if voltage is removed before the delay period ends.

Specifications:

Timing Ranges: Virtually unlimited, with standard ranges available on page 84.
Output Rating: Solid-state, SPST-N.C. 1 amp resistive; 1250 VA inrush, 125 VA run at 120 VAC, inductive.
Timing Tolerances: Minimum setting +0–20%, Maximum setting ±10%.
Repeatability: 1% maximum, no first cycle effect.
Reset Times: 100 mSEC before timeout, 50 mSEC after timeout.
Recycle Time: 40 mSEC.
Supply Voltage: 12 to 240 VDC, 24 to 240 VAC ±10%, 50/60 Hz.
False Transfer: No.
Duty Cycle: Continuous.
Enclosure: Surface mounted, encapsulated with high-quality epoxy for environmental protection.
Temperature Rating: Operating range 32° to 131°F (0° to +55°C), Storage range -49° to 185°F (-45° to +85°C).
Terminations: 1/4" quick disconnect terminals.
Weight: Net 1.28 oz, Shipping 1.6 oz.

Model Number: TSC 100 A C, with options for fixed, external resistor adjustable, and screwdriver adjustable operations. Delay periods and resistor selections are detailed on page 84.

Wiring and Operation: The document provides wiring instructions and operational details, indicating different modes of operation (F, R, S) and their respective configurations.

Dimensions: Detailed dimensions are provided in inches.

Catalog excerpts

Marsh Bellofram Diversified Electronics Division TSC Series ON-Delay Solid-State Output-1

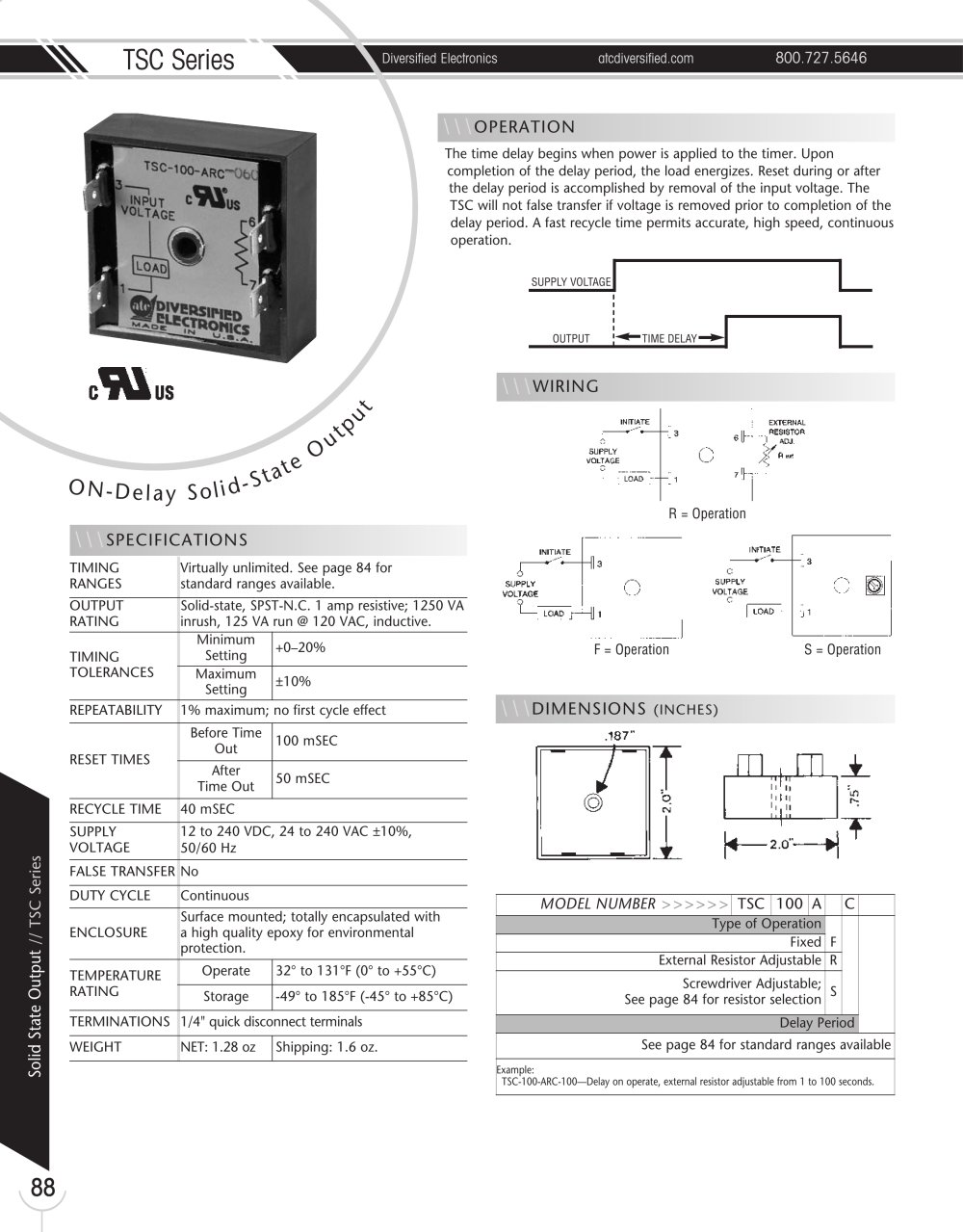

Solid State Output // TSC Series TSC Series Diversified Electronics atcdiversified.com 800.727.5646 88 The time delay begins when power is applied to the timer. Upon completion of the delay period, the load energizes. Reset during or after the delay period is accomplished by removal of the input voltage. The TSC will not false transfer if voltage is removed prior to completion of the delay period. A fast recycle time permits accurate, high speed, continuous operation. O N - D e l a y S ol i d - St at e O u tpu t \\\SPECIFICATIONS TIMING RANGES Virtually unlimited. See page 84 for standard ranges available. OUTPUT RATING Solid-state, SPST-N.C. 1 amp resistive; 1250 VA inrush, 125 VA run @ 120 VAC, inductive. TIMING TOLERANCES Minimum Setting +0–20% Maximum Setting ±10% REPEATABILITY 1% maximum; no first cycle effect RESET TIMES Before Time Out 100 mSEC After Time Out 50 mSEC RECYCLE TIME 40 mSEC SUPPLY VOLTAGE 12 to 240 VDC, 24 to 240 VAC ±10%, 50/60 Hz FALSE TRANSFER No DUTY CYCLE Continuous ENCLOSURE Surface mounted; totally encapsulated with a high quality epoxy for environmental protection. TEMPERATURE RATING Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) TERMINATIONS 1/4" quick disconnect terminals WEIGHT NET: 1.28 oz Shipping: 1.6 oz. MODEL NUMBER >>>>>> TSC 100 A C Type of Operation Fixed F External Resistor Adjustable R Screwdriver Adjustable; See page 84 for resistor selection S Delay Period See page 84 for standard ranges available Example: TSC-100-ARC-100—Delay on operate, external resistor adjustable from 1 to 100 seconds. \\\WIRING SUPPLY VOLTAGE OUTPUT TIME DELAY F = Operation R = Operation S = Operation \\\OPERATION \\\DIMENSIONS (INCHES)
