Marsh Bellofram Diversified Electronics Division TDI Series Delayed Single Shot Relay Output

Marsh Bellofram Diversified Electronics Division TDI Series Delayed Single Shot Relay Output
1Pages

Catalog excerpts

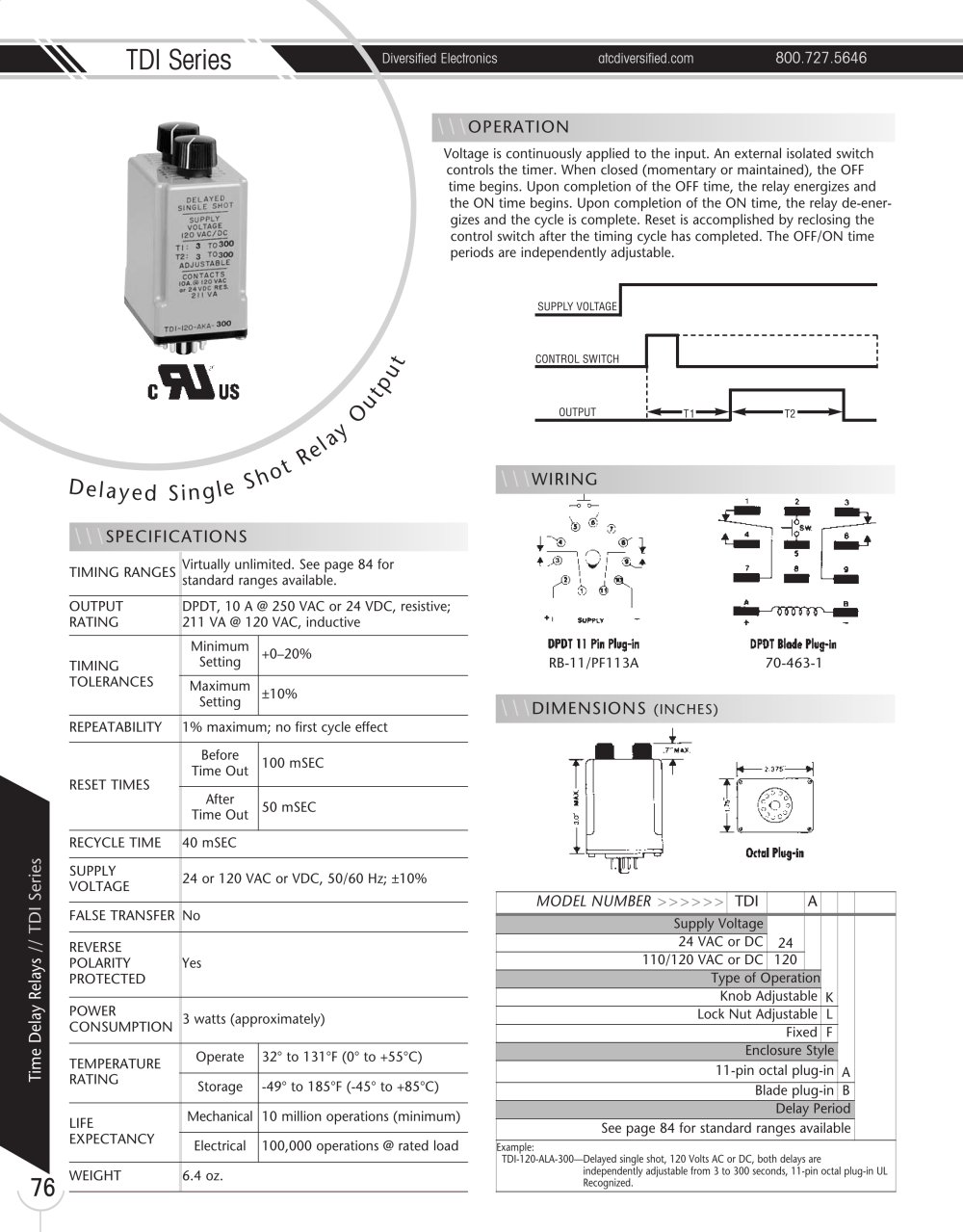

Marsh Bellofram Diversified Electronics Division TDI Series Delayed Single Shot Relay Output - 1

\\\SPECIFICATIONS TIMING RANGES Virtually unlimited. See page 84 for standard ranges available. OUTPUT RATING DPDT, 10 A @ 250 VAC or 24 VDC, resistive; 211 VA @ 120 VAC, inductive TIMING TOLERANCES Minimum Setting +0–20% Maximum Setting ±10% REPEATABILITY 1% maximum; no first cycle effect RESET TIMES Before Time Out 100 mSEC After Time Out 50 mSEC RECYCLE TIME 40 mSEC SUPPLY VOLTAGE 24 or 120 VAC or VDC, 50/60 Hz; ±10% FALSE TRANSFER No REVERSE POLARITY PROTECTED Yes POWER CONSUMPTION 3 watts (approximately) TEMPERATURE RATING Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) LIFE EXPECTANCY Mechanical 10 million operations (minimum) Electrical 100,000 operations @ rated load WEIGHT 6.4 oz. TDI Series Diversified Electronics atcdiversified.com 800.727.5646 76Time Delay Relays // TDI Series Voltage is continuously applied to the input. An external isolated switch controls the timer. When closed (momentary or maintained), the OFF time begins. Upon completion of the OFF time, the relay energizes and the ON time begins. Upon completion of the ON time, the relay de-energizes and the cycle is complete. Reset is accomplished by reclosing the control switch after the timing cycle has completed. The OFF/ON time periods are independently adjustable. D e l a y e d S i ng l e S h o t R e l a y Output SUPPLY VOLTAGE OUTPUT CONTROL SWITCH T1 T2 RB-11/PF113A 70-463-1 MODEL NUMBER >>>>>> TDI A Supply Voltage 24 K A 24 VAC or DC 110/120 VAC or DC 120 Type of Operation Knob Adjustable Lock Nut Adjustable L Fixed F Enclosure Style 11-pin octal plug-in Blade plug-in B Delay Period See page 84 for standard ranges available Example: TDI-120-ALA-300—Delayed single shot, 120 Volts AC or DC, both delays are independently adjustable from 3 to 300 seconds, 11-pin octal plug-in UL Recognized. \\\WIRING \\\DIMENSIONS (INCHES) \\\OPERATION
